Part Number: 1403

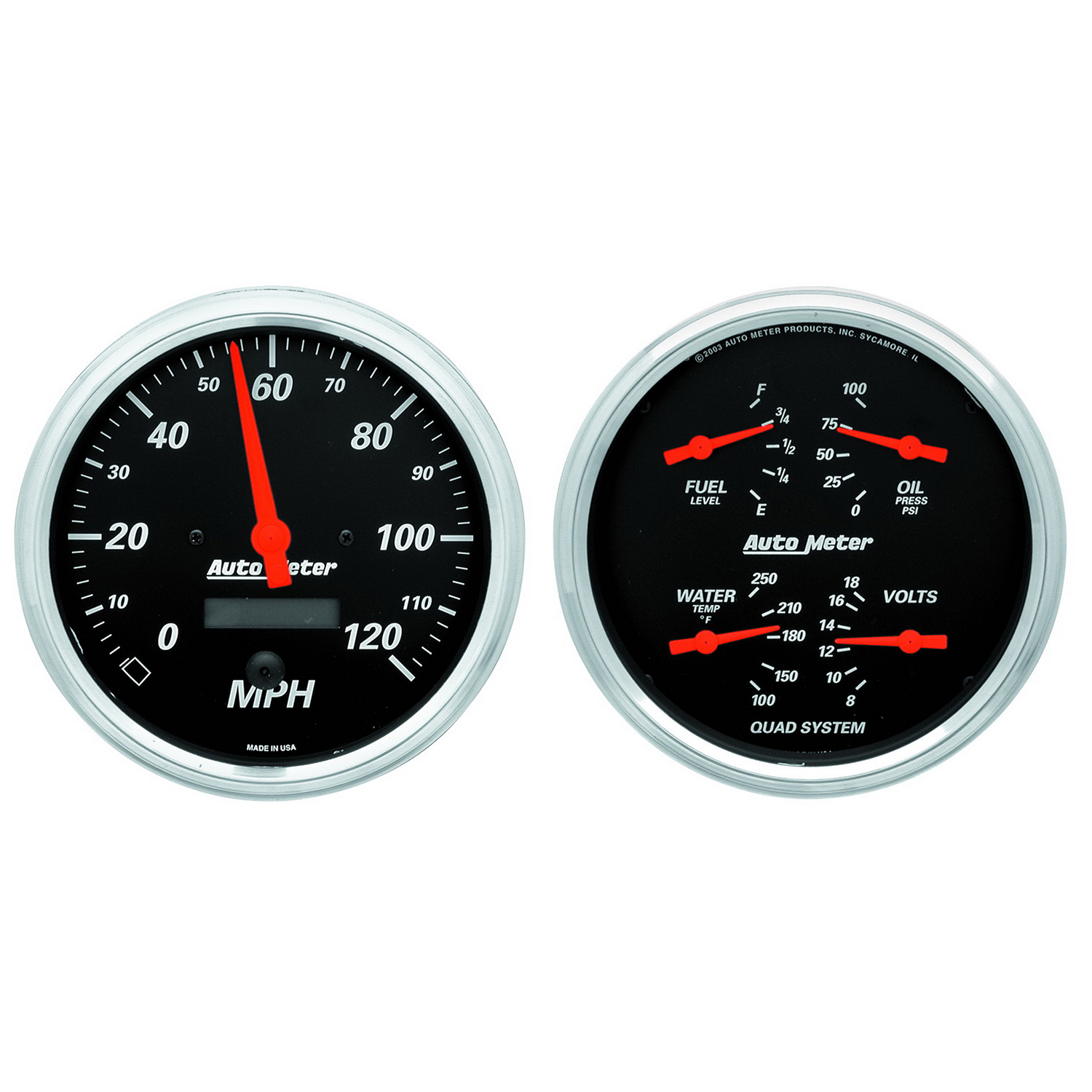

AutoMeter Designer Black 5″ Air-Core 2-Piece In-Dash Gauge Kit
Engineered for classic street rod and custom dash builds, the AutoMeter 1403 Designer Black 2-piece kit combines a 5-inch electronic speedometer with a versatile 4-in-1 quad gauge to deliver comprehensive engine and vehicle monitoring in a clean two-dial layout.
Key Features & Benefits
- ☑ Space-Saving Dual 5″ Design: Consolidates five essential instruments into two 5-inch in-dash gauges for streamlined dashboard layout.
- ☑ Race-Proven Air-Core Movements: Delivers smooth, accurate, and responsive readings while keeping hazardous engine fluids out of the cabin.
- ☑ Classic Designer Black Styling: High-contrast black faces, bold white numerals, fluorescent red needles, and street-rod style chrome bezels.
- ☑ Push-Button Speedometer Calibration: Simple 2-mile drive calibration requires no dip switches and easily adjusts for gear or tire size changes.
- ☑ Perimeter Incandescent Lighting: Traditional dial perimeter illumination with included red and green light covers for customized night vision.
Technical Specifications
| Gauge Size | 5″ (127mm) In-Dash Diameter |
|---|---|
| Gauge Type | Electronic Air-Core 2-Piece Gauge Kit |
| Speedometer Range | 0-120 MPH (with digital LCD odometer) |
| Quad Gauge Functions | Oil Pressure (0-100 PSI), Water Temp (100-250°F), Voltmeter (8-18V), Fuel Level (240E/33F Ω) |
| Bezel / Face Finish | Chrome Street-Rod Bezel / Black Face / Domed Clear Lens |
| Lighting | Perimeter Incandescent (12V & 16V System Compatible) |
What’s Included in the Box

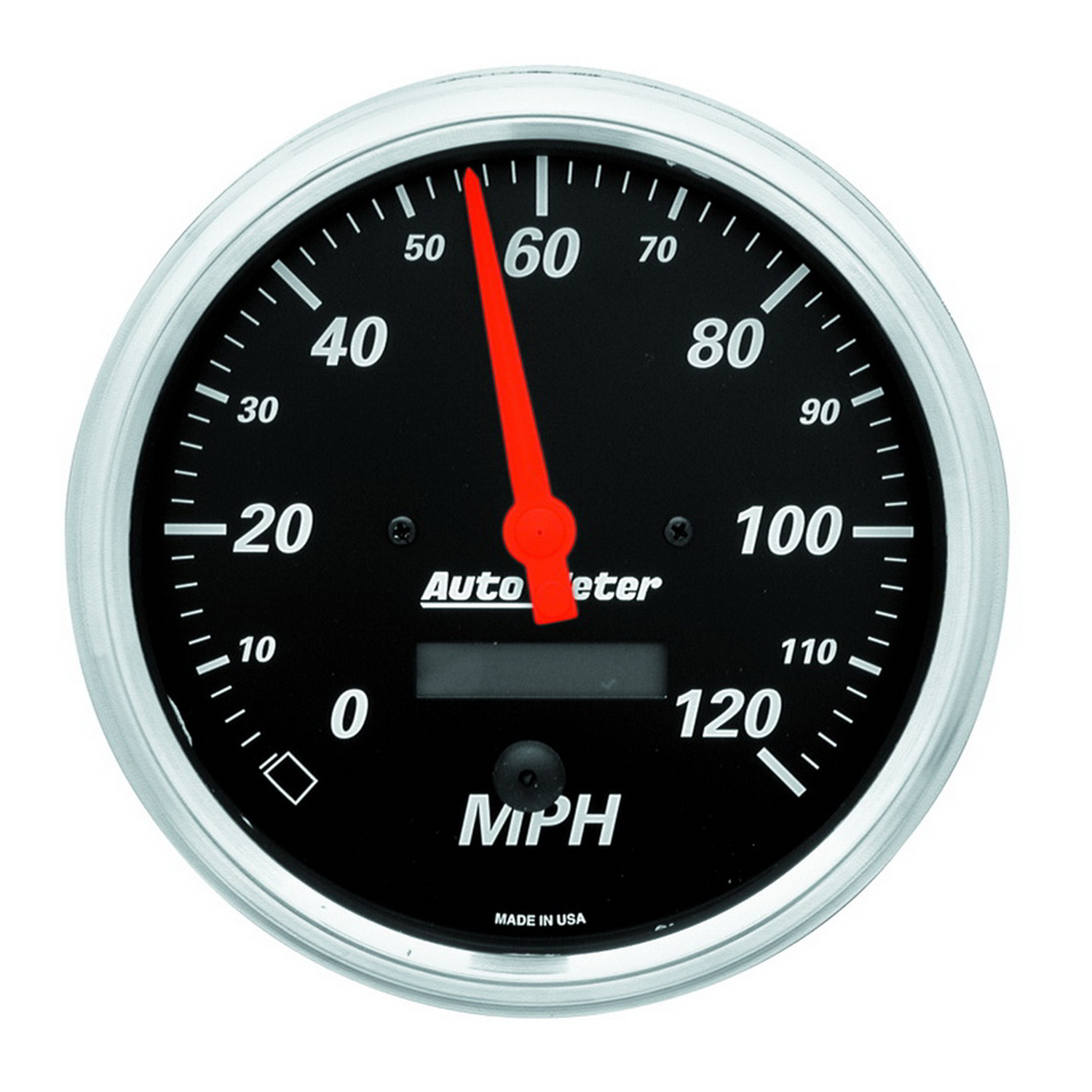

- 1x AutoMeter Designer Black 5″ Electronic Speedometer (0-120 MPH)
- 1x AutoMeter Designer Black 5″ 4-in-1 Quad Gauge
- 1x Fuel Level Sending Unit (240 Ohms Empty / 33 Ohms Full, PN 3262)
- 1x Electric Oil Pressure Sender (1/8″ NPT, PN 2242)
- 1x Water Temperature Sender (1/8″ NPT, PN 2258)
- 1x 2-Wire Hall-Effect Speed Sensor / VSS (7/8″-18 THD, PN 5293)
- NPT Adapter Fittings (1/4″, 3/8″, and 1/2″ NPT)
- Bulb & Socket Assemblies with Red and Green Covers
- Mounting Brackets & Installation Hardware
As an authorized AutoMeter distributor in the UK, JP Racing supplies genuine high-performance instrumentation backed by comprehensive manufacturer warranties. Whether you are building a custom street rod, kit car, or race vehicle, our technical sales team is on hand to assist with product selection, wiring queries, and rapid UK delivery options.
