Description
Part Number: 4305

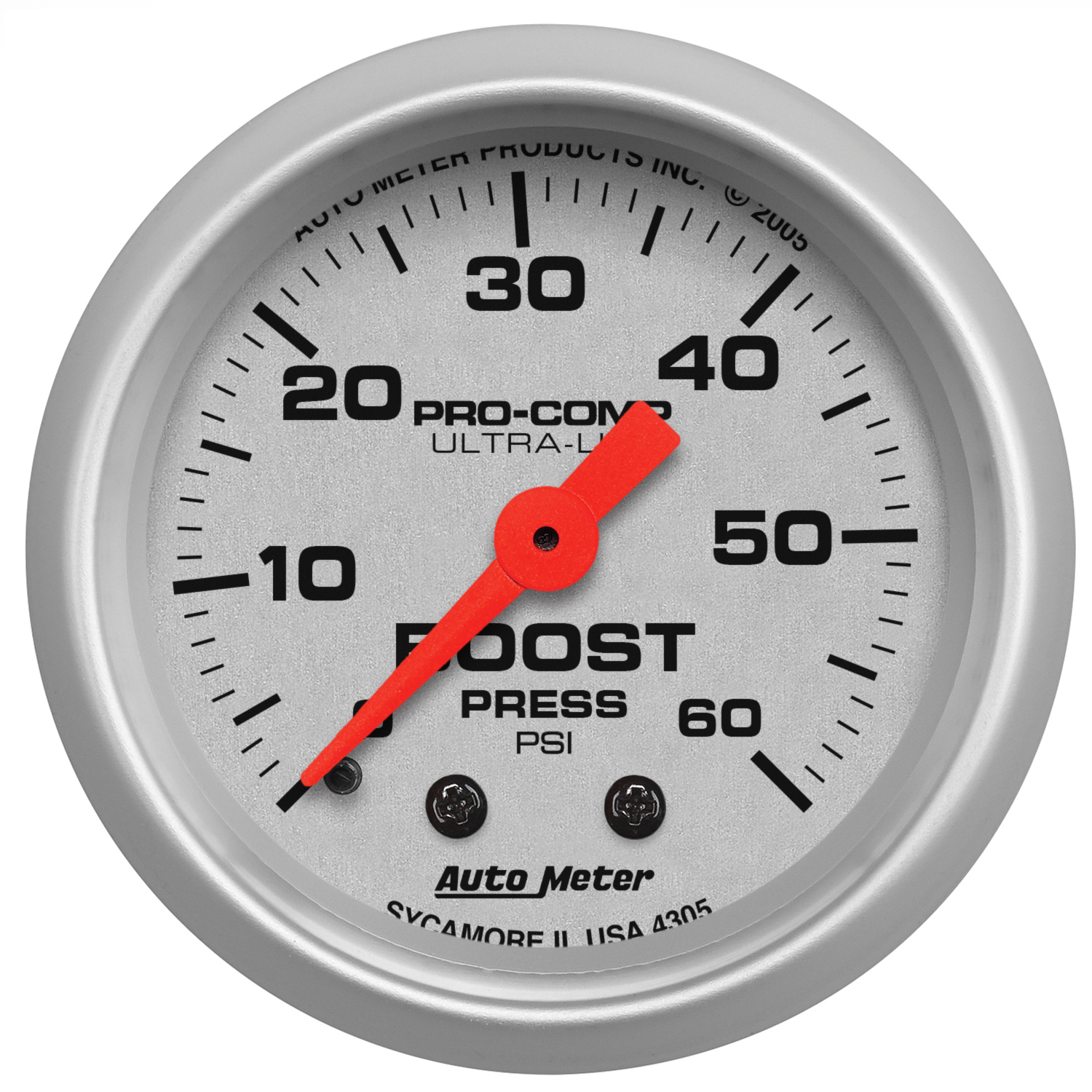

AutoMeter Ultra-Lite 2-1/16″ Mechanical Boost Gauge (0-60 PSI)
Engineered for high-boost forced induction applications, delivering race-proven mechanical accuracy in a lightweight aluminum design.
Key Features
- ☑ Bourdon Tube Movement: Ultra-precise mechanical design provides instantaneous, accurate manifold pressure readings from 0 to 60 PSI without requiring electrical power.
- ☑ Ultra-Lite Motorsport Aesthetics: Lightweight silver dial face with clear black markings, high-visibility fluorescent red pointer, and satin anodized bezel.
- ☑ Standard 52.4mm Fitment: Standard 2-1/16″ outer diameter ensures direct installation into universal gauge pods, cups, and dash panels.
- ☑ Complete Pressure Hardware: Supplied with 10 ft. 1/8″ nylon tubing, 1/8″ NPT compression fittings, and a 1/4″ NPT adapter.
- ☑ Perimeter Backlighting: Traditional incandescent illumination complete with red and green bulb covers for customized night display.
Motorsport Application
Essential for high-boost turbocharged petrol, compound turbo diesel, and supercharged race builds requiring reliable mechanical pressure monitoring under harsh vibration.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| MPN | 4305 |
| Gauge Series | Ultra-Lite |
| Gauge Type | Mechanical Boost Gauge |
| Gauge Diameter | 2-1/16″ (52.4mm) |
| Scale / Range | 0 – 60 PSI |
| Mechanism | Bourdon Tube Meter Movement |
| Face Color | Silver (Satin Anodized Aluminum) |
| Pointer Color | Fluorescent Red |
| Lighting | Incandescent Perimeter Lighting |
| Connection | 1/8″ NPT Male / Compression Fitting |
What’s Included in the Box
- 1x AutoMeter Ultra-Lite 2-1/16″ 0-60 PSI Mechanical Boost Gauge (PN 4305)
- 1x 10 ft. 1/8″ Nylon Tubing Line Kit
- 1x 1/8″ NPT Compression Fittings Set
- 1x 1/4″ NPT Adapter Fitting
- 1x Incandescent Bulb & Socket Assembly
- 2x Color Covers (1x Red, 1x Green)
- 1x Mounting Bracket & Hardware Kit
AutoMeter remains the gold standard in motorsport instrumentation. As an official UK distributor, JP Racing provides genuine AutoMeter products backed by expert technical advice and express UK dispatch.
