AUTOMETER Race Dash Display, 10K RPM/Wtrp/Fuelp/Oilp/Oilt/Wtmp/Volt, Pro-Comp
AUTOMETER Race Dash Display, 10K RPM/Wtrp/Fuelp/Oilp/Oilt/Wtmp/Volt, Pro-Comp - Image 2

AUTOMETER Race Dash Display, 10K RPM/Wtrp/Fuelp/Oilp/Oilt/Wtmp/Volt, Pro-Comp

Original price was: £2,066.96.Current price is: £1,860.28. Inc. VAT

SKU: ATM6014 Categories: , , Tag: Brand:

Description

Part Number: 6014

AutoMeter Pro-Comp Race Dash Display System

Engineered for dirt and asphalt modified oval track racing, the AutoMeter 6014 Pro-Comp Race Dash Display combines a high-precision 0–10,000 RPM analog tachometer with an IP67 waterproof digital display for total engine parameter monitoring.

Key Features & Performance Highlights

  • ☑ Integrated Multi-Channel Monitoring: Displays RPM, oil pressure, water temperature, oil temperature, fuel pressure, battery voltage, and optional water pressure.
  • ☑ Hybrid Display System: Features an iconic analog pointer movement for 0–10,000 RPM tachometer tracking alongside customizable digital readout screens.
  • ☑ On-Track Data Recording & Playback: Captures full racing session data for immediate review and playback directly on the dash screen in the pits.
  • ☑ Programmable Alert & Warning Lights: Set custom high/low alert thresholds with bright LED alarm lights and on-screen text warnings.
  • ☑ IP67 Waterproof & Dustproof Sealing: Built to withstand severe cockpit environments, mud splash, and high-vibration motorsport conditions.

Technical Specifications

Brand AutoMeter
Part Number 6014
Series Pro-Comp Race Dash Display
Tachometer Range 0–10,000 RPM (10K RPM)
Display Type Hybrid Analog Pointer & Digital LCD Display
Monitored Parameters RPM, Oil Pressure, Oil Temp, Water Temp, Fuel Pressure, Battery Voltage, Optional Water Pressure
Weather Protection IP67 Waterproof & Dustproof Sealing
Connector Type 19-Pin MIL-Spec Pre-Terminated Harness

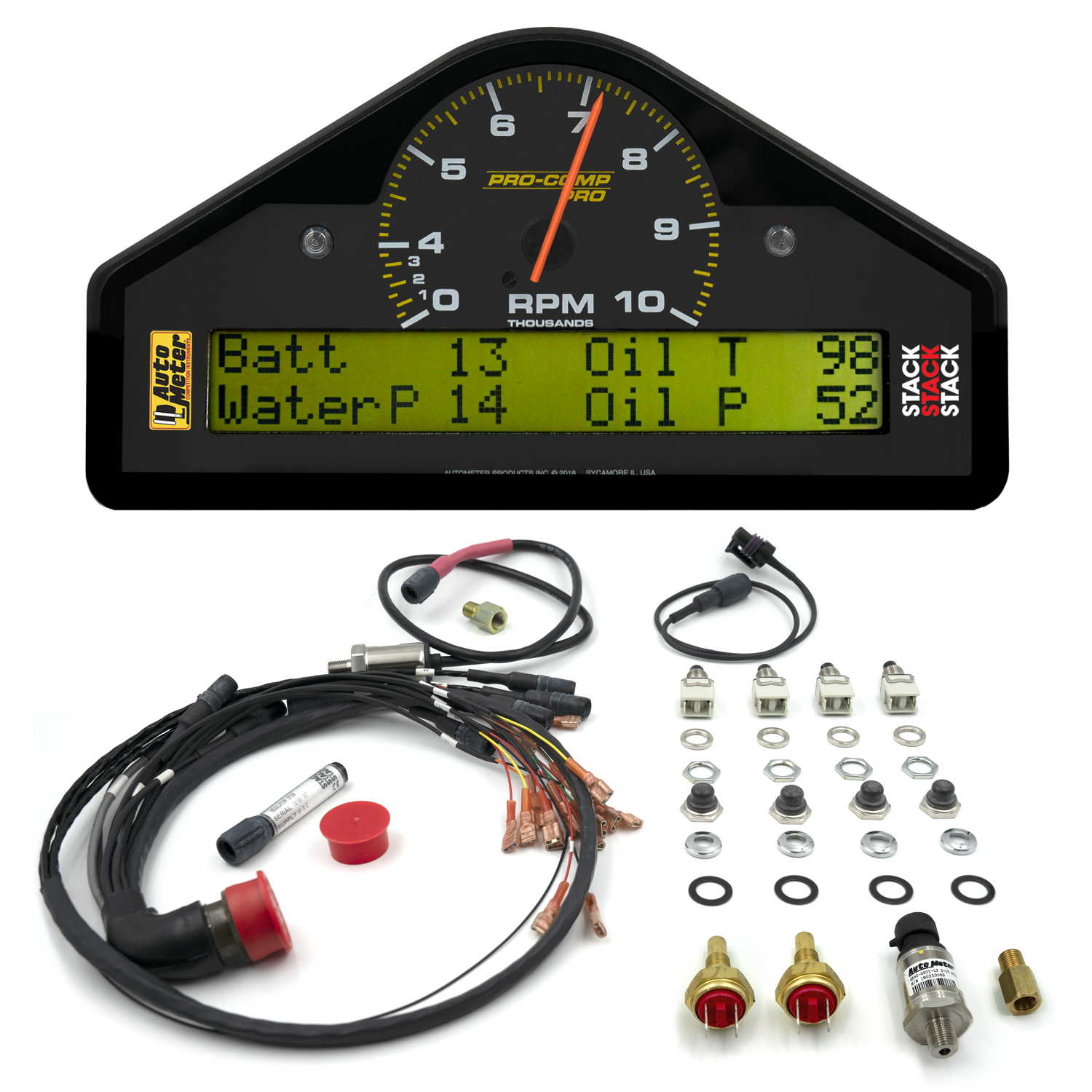

What’s Included in the Box

  • 1x AutoMeter 6014 Pro-Comp Race Dash Display Unit
  • 2x 1/8″ NPT Temperature Sensors (Water Temp & Oil Temp)
  • 1x 1/8″ NPT 150 PSI Stainless Steel Oil Pressure Sensor
  • 1x 1/8″ NPT 15 PSI Stainless Steel Fuel Pressure Sensor
  • 1x Pre-Terminated Professional Wiring Loom with 19-Pin MIL-Spec Connector
  • 1x External Push-Button Control Panel with Weather-Resistant Caps
  • Mounting Brackets & Installation Template

Backed by AutoMeter’s legendary motorsport heritage and race-proven accuracy, the 6014 Pro-Comp Race Dash Display delivers immediate, critical telemetry data to keep your race engine safe under extreme competition. Order directly from JP Racing for expert UK technical support, guaranteed genuine AutoMeter products, and fast UK dispatch.

Additional information

Weight 1.81 kg
Dimensions 10.16 × 33.02 × 25.4 cm

Frequently Asked Questions

The AutoMeter 6014 Pro-Comp Race Dash Display monitors 0–10,000 RPM via its analog pointer and tracks oil pressure, oil temperature, water temperature, carbureted fuel pressure, and battery voltage on its digital display. An optional water pressure channel can also be added with a separate sensor.

Yes, the 6014 Race Dash Display is built to IP67 waterproof and dustproof standards, making it highly durable for harsh dirt modified, oval track, and open-cockpit motorsport applications exposed to mud and rain.

Yes, the system logs complete on-track sessions and allows drivers or pit crews to replay the recorded run directly on the dash face in the pits without requiring an external laptop or computer interface.
