AUTOMETER Racing Instrument Display, Color LCD, Config, Shift & Alarm Lights, Datalogging
AUTOMETER Racing Instrument Display, Color LCD, Config, Shift & Alarm Lights, Datalogging - Image 2
AUTOMETER Racing Instrument Display, Color LCD, Config, Shift & Alarm Lights, Datalogging - Image 3
AUTOMETER Racing Instrument Display, Color LCD, Config, Shift & Alarm Lights, Datalogging - Image 4
AUTOMETER Racing Instrument Display, Color LCD, Config, Shift & Alarm Lights, Datalogging - Image 5
AUTOMETER Racing Instrument Display, Color LCD, Config, Shift & Alarm Lights, Datalogging - Image 6
AUTOMETER Racing Instrument Display, Color LCD, Config, Shift & Alarm Lights, Datalogging - Image 7
AUTOMETER Racing Instrument Display, Color LCD, Config, Shift & Alarm Lights, Datalogging - Image 8

AUTOMETER Racing Instrument Display, Color LCD, Config, Shift & Alarm Lights, Datalogging

Original price was: £4,064.11.Current price is: £3,657.70. Inc. VAT

SKU: ATM6021 Categories: , , Brand:

Description

Part Number: 6021

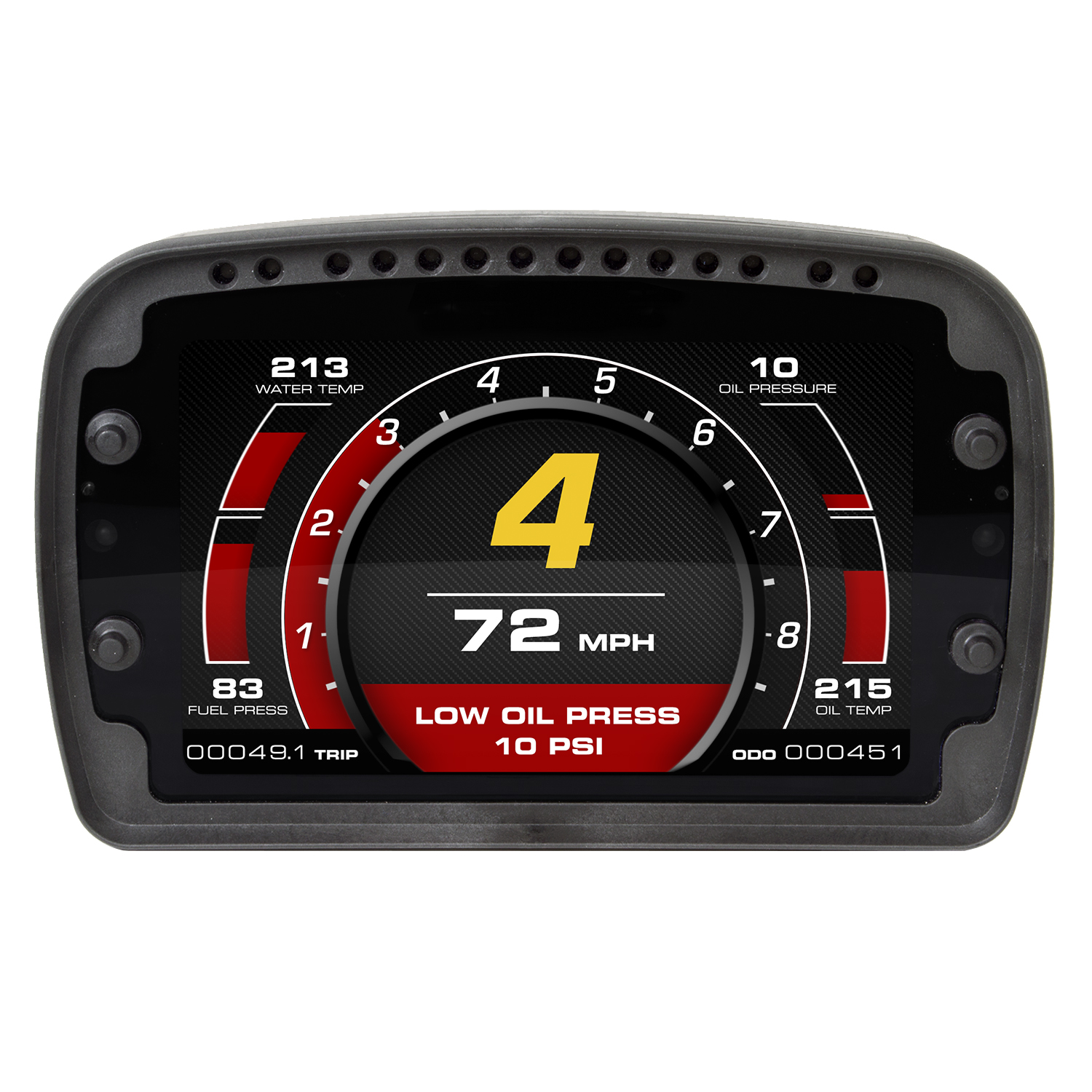

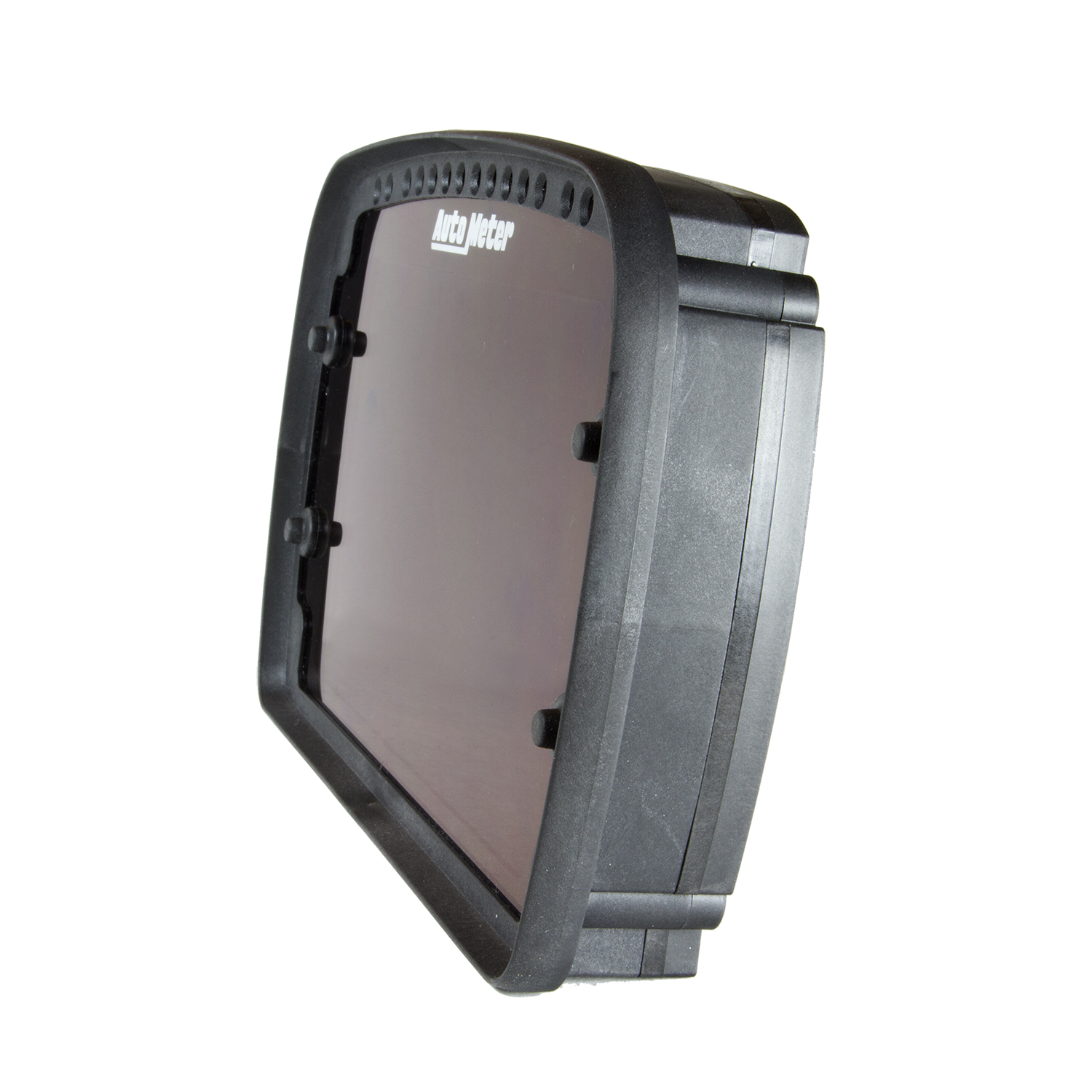

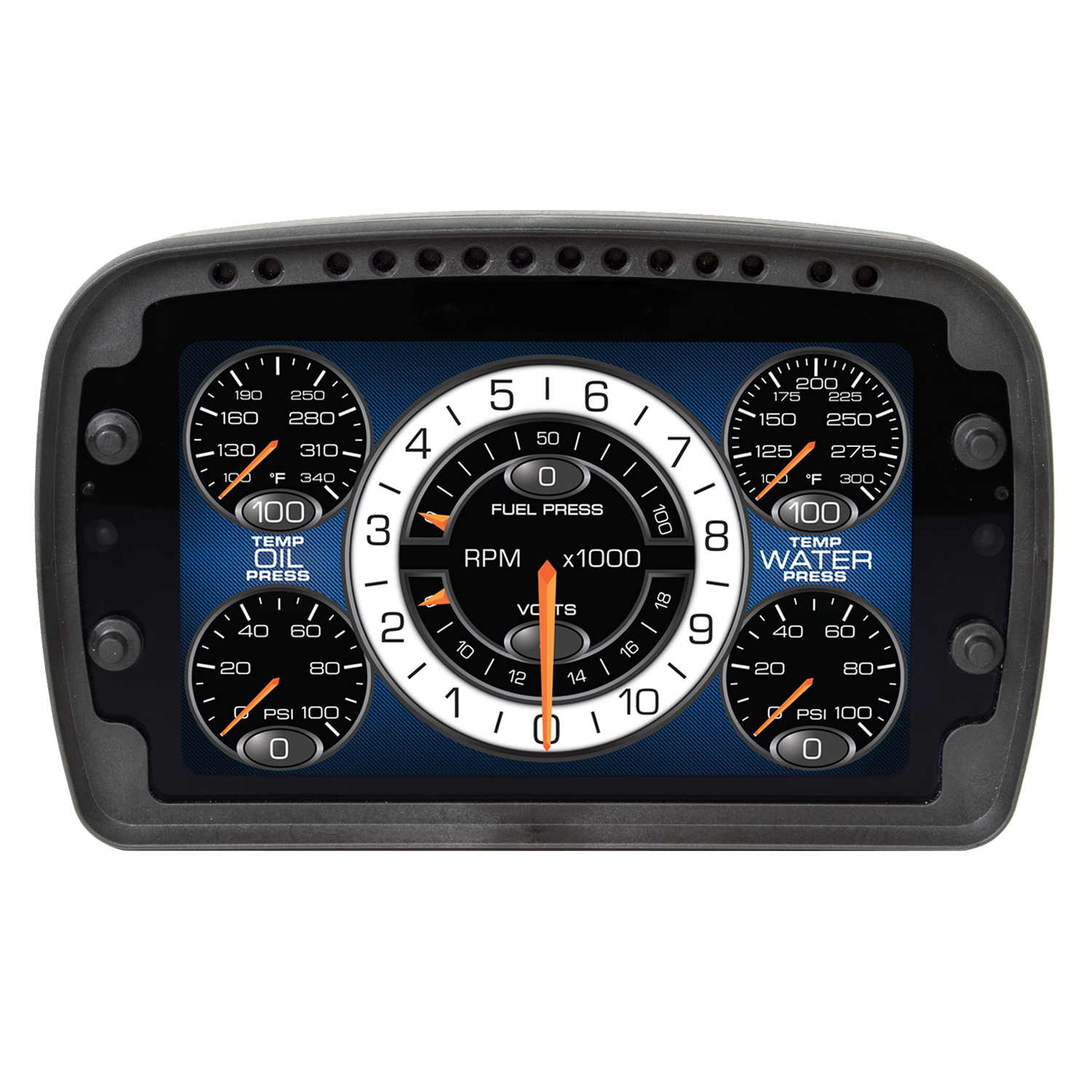

AutoMeter Competition 7″ Color LCD Dash Display

The ultimate driver communication and high-speed data acquisition dashboard engineered for extreme motorsport applications.

Product Overview

The AutoMeter 6021 Competition LCD Dash Display delivers retina-grade clarity and high-speed data acquisition in a rugged carbon composite housing. Built specifically for demanding race conditions, this 7-inch display features 1000-nit ultra-bright daytime visibility, an optically bonded anti-glare lens, and IP65 weather sealing. Capable of surviving 20g continuous vibration and 50g shock, the 6021 provides customizable gauge layouts, integrated predictive lap timing, and 16 programmable multi-color perimeter LEDs for shift and alarm warnings.

Key Features

  • ☑ High-contrast 7.0″ TFT LCD screen with 1000-nit brightness & 800×480 resolution
  • ☑ IP65 dust/water-sealed carbon composite housing built for harsh environments
  • ☑ 16 configurable multi-color perimeter LEDs for shift lights and critical engine alarms
  • ☑ 12 discrete analog inputs, CAN bus / Serial logger connectivity, and built-in 3-axis accelerometer
  • ☑ High-speed data logging up to 1 kHz with internal memory and DataPro Designer PC software

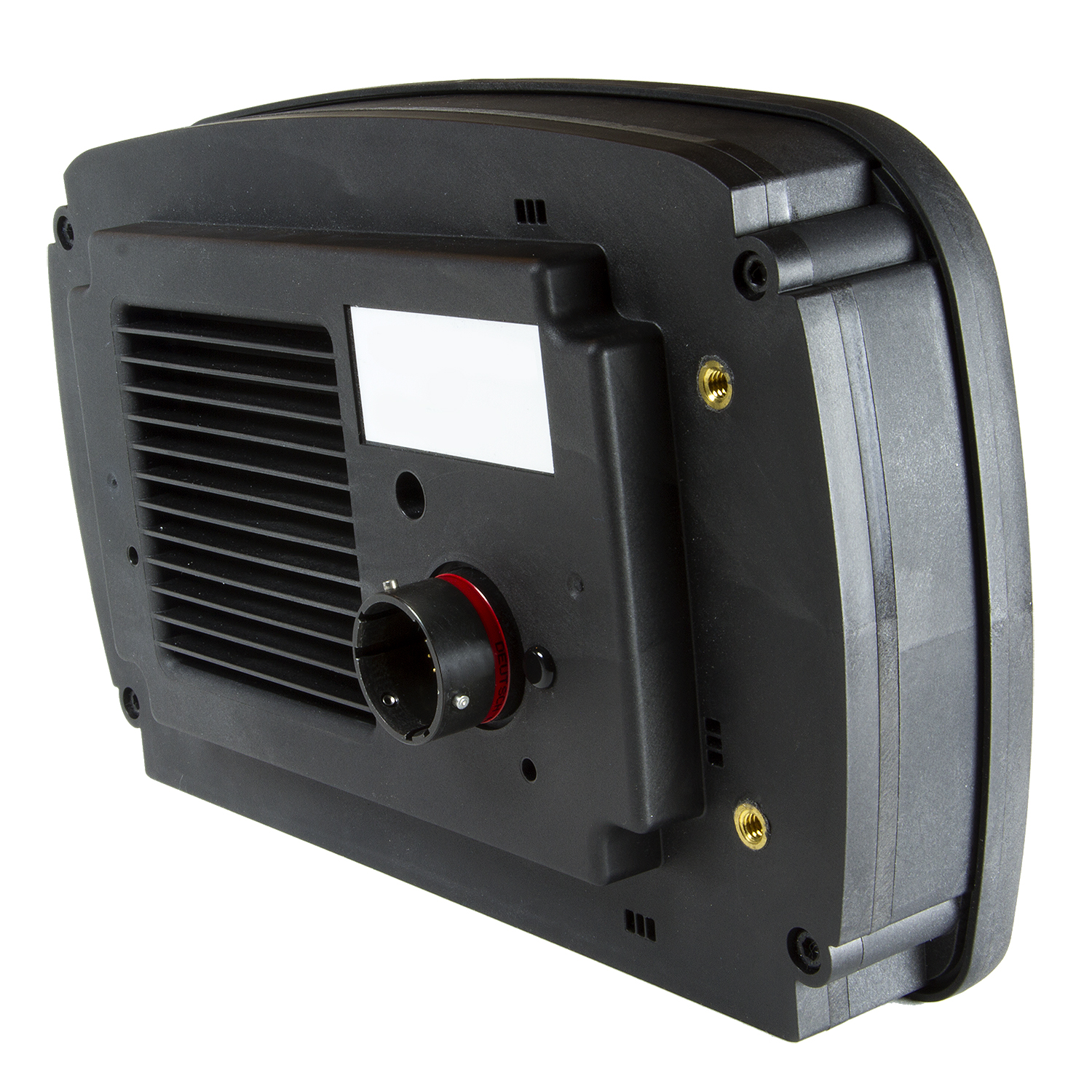

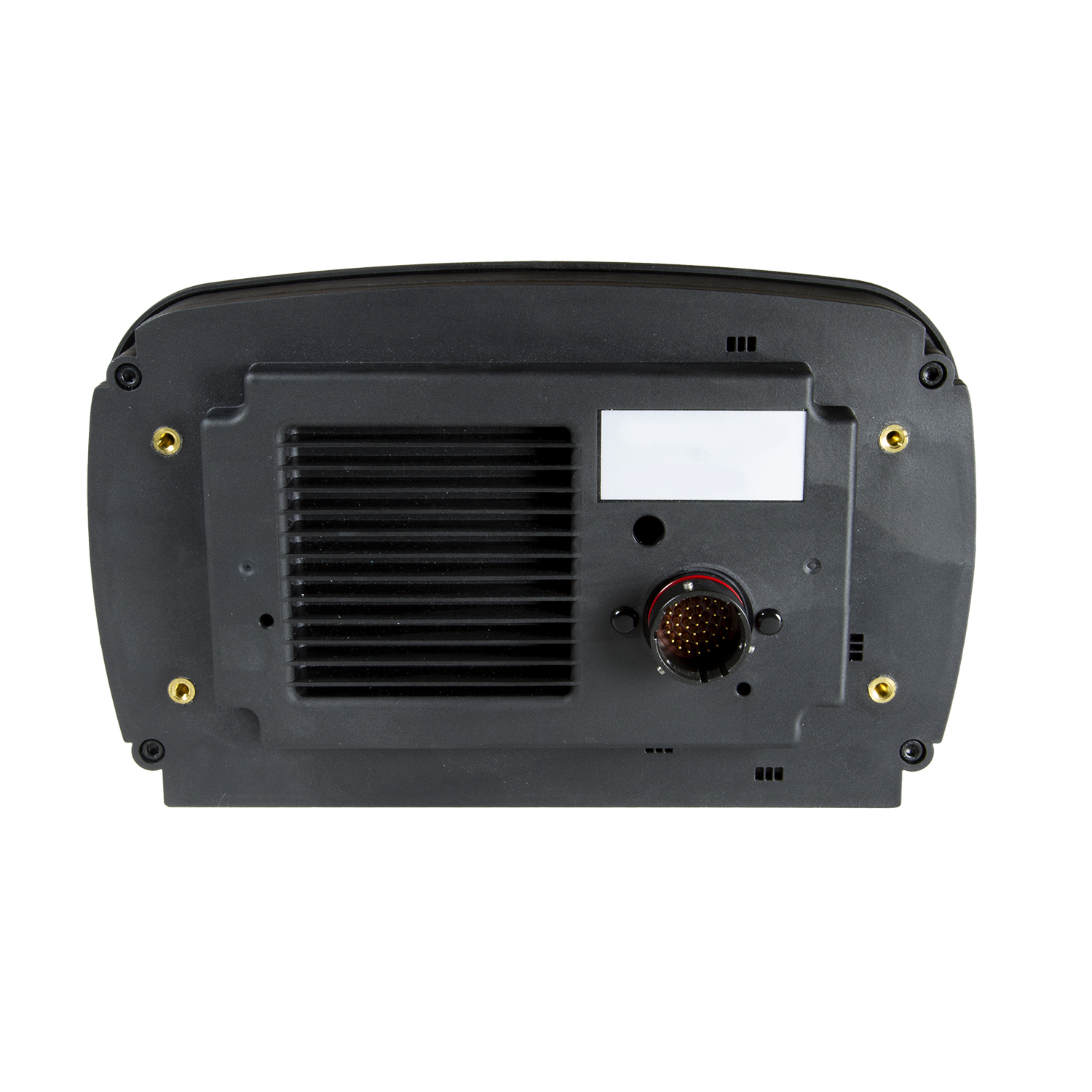

  • ☑ Single 37-way Autosport (AS) connector for clean motorsport wiring integration

Technical Specifications

Manufacturer AutoMeter
Part Number 6021
Display Size 7.0″ Diagonal (8.3″ W x 5.2″ H x 1.4″ D)
Display Type TFT Color LCD (800×480)
Housing Material Carbon Composite (IP65 Rated)
Brightness 1000 Nit with Auto Photo Sensor
Connector Type 37-Way Autosport (AS)
Inputs 12 Analog, 2 CAN Channels, 2 Serial Channels

What’s Included in the Box

  • AutoMeter 6021 7″ Competition Color LCD Dash Display Unit
  • 37-Pin Autosport Main Connector Plug and Terminals
  • Mounting Hardware and Bracket Kit
  • Quick Start Installation Guide

JP Racing is your dedicated UK stockist for premier AutoMeter motorsport electronics. Enjoy expert technical advice, fast UK mainland shipping, and dedicated support for all your race display and telemetry requirements.

Additional information

Weight 1.72 kg
Dimensions 10.16 × 33.02 × 25.4 cm

Frequently Asked Questions

The AutoMeter 6021 connects using a single 37-way Autosport (AS) wiring connector. It supports 12 discrete analog sensor inputs, 2 CAN bus channels, and 2 Serial communication channels, allowing seamless integration with standalone engine management systems, vehicle communication networks, and discrete sensors.

Yes, the AutoMeter 6021 is housed in a rugged carbon composite casing rated to IP65 standards for water and dust ingress protection. It is built to operate under harsh conditions, withstanding up to 20g of continuous vibration and 50g of shock impact.

The 6021 features 16 perimeter multi-color LEDs that can be customized for gear shift staging and critical parameter warnings. Setup can be adjusted on-track using the integrated 4-button interface or detailed layout design can be created on a PC using AutoMeter's DataPro Designer software.
