Description
Part Number: 3235
AutoMeter 3235 #3 Braided Stainless Steel Gauge Line Kit (4 ft)
Heavy-duty 4-foot PTFE-lined braided stainless steel pressure hose kit designed for reliable mechanical gauge plumbing and remote sender mounting.
Key Features
- ☑ Durable Braided Construction: Premium Type 304 stainless steel outer braid for maximum abrasion and heat resistance.
- ☑ PTFE Lined Interior: Inner hose is fully chemically resistant to oil, fuel, brake fluid, and engine coolants.
- ☑ High Pressure Rating: Rated for 3,000 PSI maximum operating pressure and 12,000 PSI burst pressure.
- ☑ Versatile Fitting Kit: Complete with 1/8″ NPT and -3 AN adapter fittings for straightforward gauge installation.
- ☑ Firewall Protection: Includes rubber pass-through grommet for safe routing through vehicle bulkheads.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Manufacturer Part Number | 3235 |
| Hose Length | 4 Feet (48 Inches / 1.22 Metres) |
| Hose Size | -3 AN (#3 Hose) |
| Outer Material | Type 304 Braided Stainless Steel |
| Inner Core Material | Extruded PTFE |
| Max Operating Pressure | 3,000 PSI |
| Operating Temperature | -65°F to 450°F (-54°C to 232°C) |
| Gauge Fitment | AutoMeter Mechanical Pressure Gauges with 1/8″ NPT Connection |

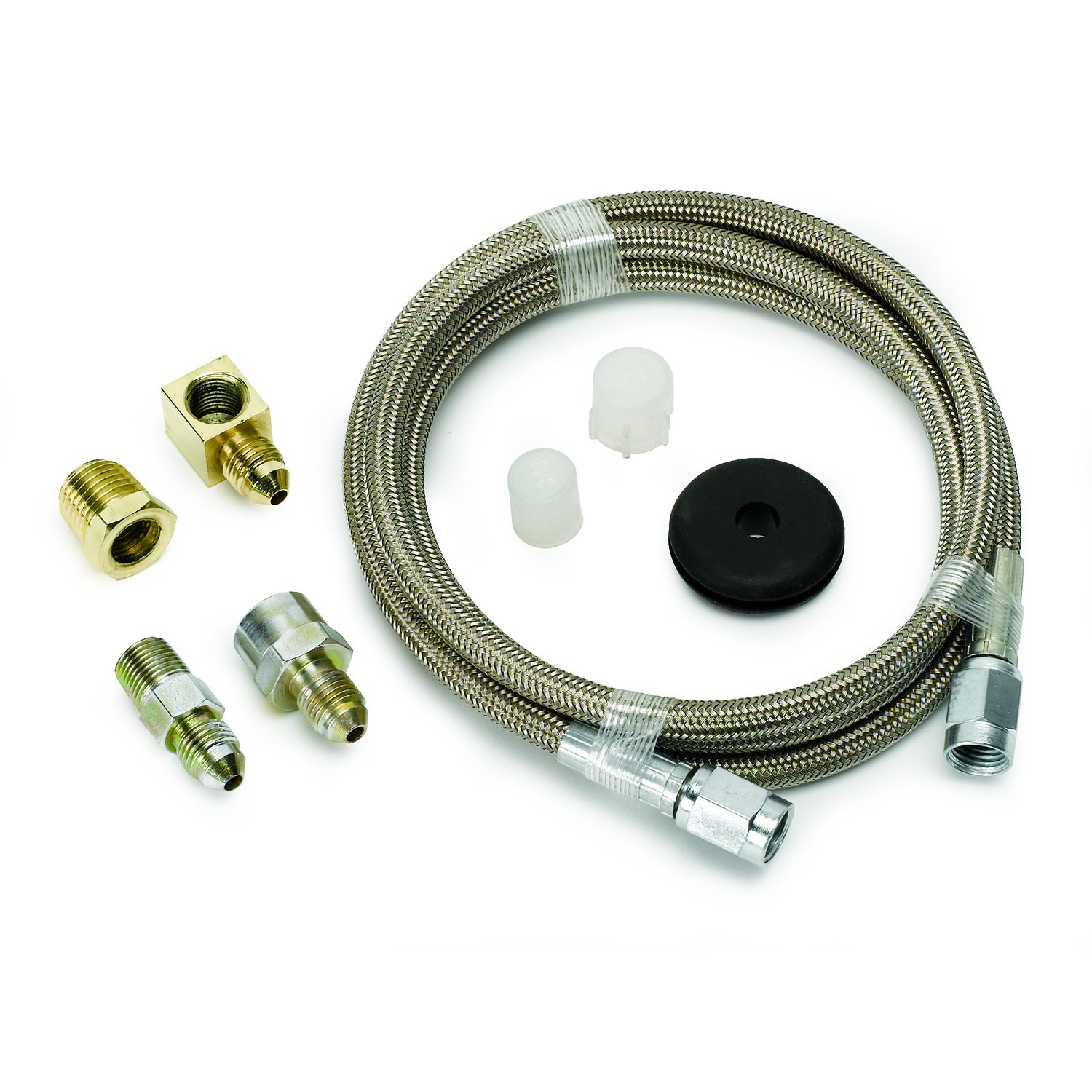

What’s Included in the Box
- 1x 4 ft (-3 AN) PTFE-Lined Braided Stainless Steel Hose
- 1x 1/8″ NPT Female Right Angle to -3 AN Male Fitting
- 1x -3 AN Male to 1/8″ NPT Male Fitting
- 1x -3 AN Male to 1/8″ NPT Female Fitting
- 1x 1/8″ NPT Female to 1/4″ NPT Male Adapter Bushing
- 1x Firewall Pass-Through Rubber Grommet
Engineered for high-stress motorsport environments, the AutoMeter 3235 gauge line kit delivers leak-free, high-pressure liquid and gas plumbing for mechanical pressure gauges or remote sender setups. JP Racing is your trusted UK supplier of genuine AutoMeter instrumentation products, offering expert technical support and express nationwide delivery.
