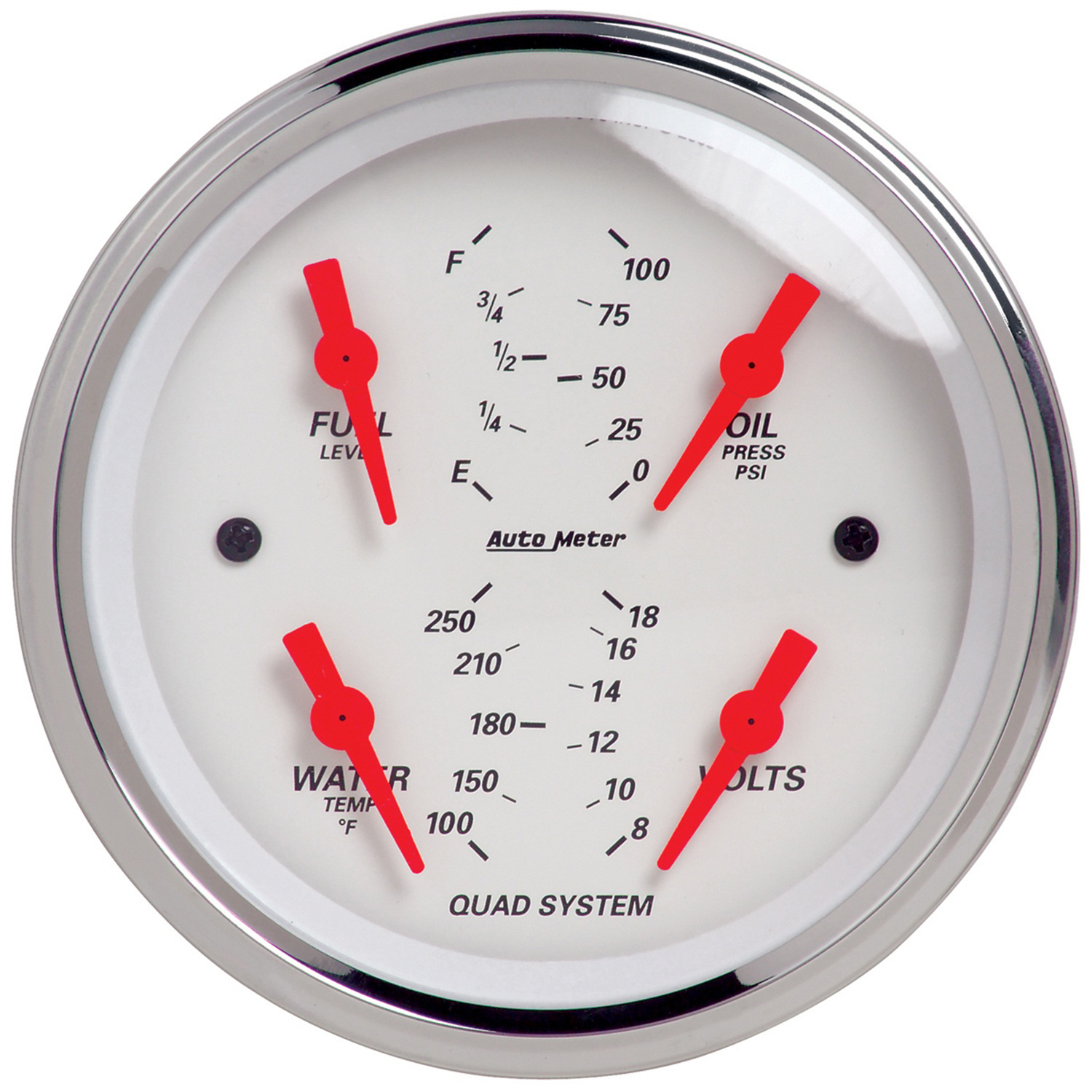

AUTOMETER 3 3/8″ Electric Quad Gauge, 100PSI, 240-33Ω, 100-250°F, 8-18V, Arctic White

Description

AUTOMETER 3 3/8″ Electric Quad Gauge, 100PSI, 240-33Ω, 100-250°F, 8-18V, Arctic White

Quick Specs

• Autometer Part: 1312
• Size: 3-3/8″ (85.7mm)
• Type: Air-Core
• Range: 100 PSI/100-250 °F/8-18V/240ΩE-33ΩF
• Lighting: Incandescent
• Instructions: Download PDF

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).

Feature Points

• Traditional incandescent lighting illuminates around the perimeter of the dial
• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
• Gauge kit includes 1/8″ NPT pressure sender, 1/4″ NPT adapter, 1/8″ NPT temperature sender, 3/8″ and 1/2″ NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
• Domed Lens

Ships With

• Includes Sending Unit: Oil Sender 2242 – Water Sender 2258
• 3/8″ NPT and 1/2″ NPT adapter fittings
• 3221
• Red 3214 & Green 3215
• Bracket Included

AutoMeter products come from a long line of racing history. When engines were becoming more powerful, in turn, they revved faster, created more heat, and demanded more out of the vehicle. Factory instruments were unable to keep up with the need of the racers. In 1957, AutoMeter was founded on the fastest, most accurate tachometer ever designed. Able to keep with the revs and provide unparalleled accuracy, the AutoMeter tachometer was widely accepted in the cockpits of the fastest race cars. Through the years, AutoMeter honed this technology to continuously improve all products, tachometers included. AutoMeter Products, Inc. is the worldwide leader in performance instrumentation with its tachometers, speedometers, and gauges used by professional and sportsmen racers around the world.
