Description
Part Number: 5350

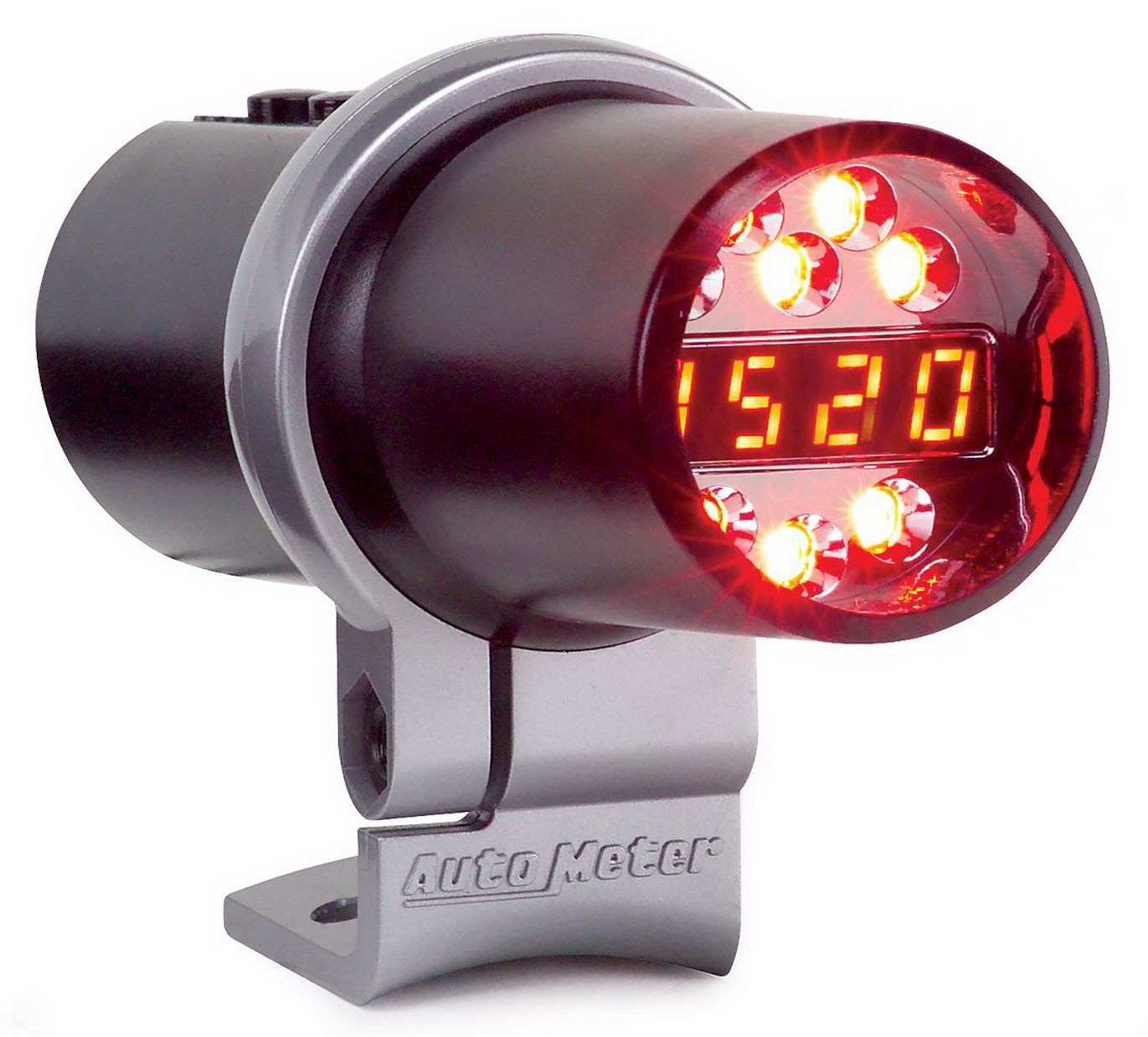

AutoMeter Digital Pro Shift System (DPSS) Level 3 Shift Light
Precision digital RPM shift light system featuring 5 programmable shift stages, multi-colour LED illumination, and 80-second RPM playback memory.
Key Features
- ☑ Level 3 Digital Pro Shift System with 5 programmable shift points including Launch Lite and progressive shift alerts.
- ☑ Integrated 80-second RPM memory recording with slow-motion playback to analyze launch, shift timing, and trap speed.
- ☑ Seven user-selectable LED display colors (white, red, yellow, green, teal, blue, magenta) with adjustable intensity levels.
- ☑ Compact 2-1/16″ (2.063″) tube-style black anodized aluminum housing with AIM swivel pedestal mount (30° tilt / 360° rotation).
- ☑ Compatible with 0.5 to 6 pulse ignition signals (1 to 12 cylinder engines) across 12V and 16V electrical systems.
- ☑ AutoMeter E-Z View Digital LED Display prevents high-speed digit flutter for crystal-clear readability under extreme conditions.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Manufacturer Part Number | 5350 |
| Product Line | Digital Pro Shift System (DPSS) – Level 3 |
| Gauge Body Diameter | 2-1/16″ (2.063″ / 52.4mm) Tube Style |
| Housing Finish | Black Anodized Aluminum |
| RPM Operating Range | 0 – 16,000 RPM (Programmable in 10 RPM Increments) |
| Shift Point Stages | 5 Programmable Points (Launch Lite & Progressive Shift) |
| Playback Memory | 80 Seconds RPM Recording & Slow-Motion Playback |
| LED Color Choices | 7 Selectable Colors (White, Red, Yellow, Green, Teal, Blue, Magenta) |
| Ignition Compatibility | 0.5 – 6 Pulse Signals (1-12 Cylinder Engines, Points, Electronic, Aftermarket 12V/16V) |
| Mounting Assembly | AIM Swivel Bracket (30° Angle Adjustment / 360° Rotation) |
What’s Included in the Box
- AutoMeter Level 3 DPSS Digital Shift Light Assembly (Black Housing)
- AIM Swivel Pedestal Mount & Mounting Bracket Hardware
- Wiring Harness with Multi-Pin Connector
- Installation & Programming Quick-Start Guide
Designed for competitive drag racing, track day cars, and high-performance builds, the AutoMeter 5350 Level 3 Digital Pro Shift Light delivers immediate, reliable shift notifications without requiring extra modules or pills. As a leading UK distributor, JP Racing provides authentic AutoMeter products backed by expert technical advice, full warranty coverage, and fast UK dispatch.
