Description
Part Number: 6809

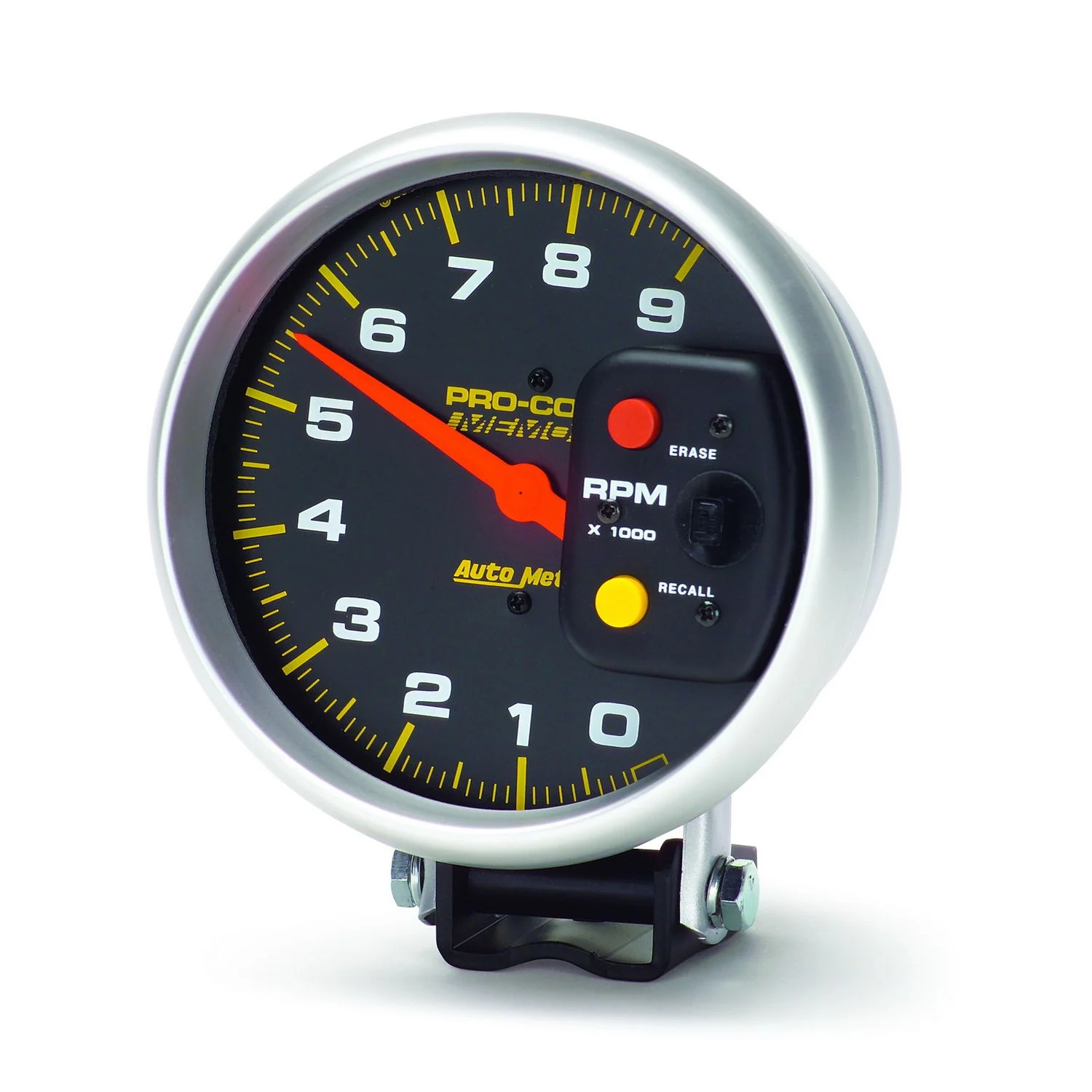

AutoMeter Pro-Comp 5″ Pedestal Mount Tachometer with Peak Memory (0–9000 RPM)
Engineered for extreme competition environments, the AutoMeter 6809 Pro-Comp 5″ pedestal tachometer delivers pinpoint accuracy, immediate air-core needle response, and peak RPM memory recall for serious racers and engine builders.
Key Features
- ☑ Patented air-core meter movement sweeps 0 to 9,000 RPM with smooth, instant precision
- ☑ Integrated peak RPM memory recall button allows post-run evaluation of maximum engine speeds
- ☑ Prominent 5″ (127mm) Monster dial face with high-contrast black finish, white numerals, and red pointer
- ☑ Heavy-duty pedestal mounting bracket with vibration-damping hardware for column or dash installation
- ☑ Broad ignition signal compatibility suitable for 4, 6, and 8-cylinder engines (2 to 4 pulse per rev)
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Manufacturer Part Number | 6809 |
| Gauge Series | Pro-Comp |
| Gauge Diameter | 5″ (127mm) |
| RPM Range | 0 – 9,000 RPM |
| Movement Type | Electric Air-Core |
| Dial & Bezel Finish | Black Dial / Silver Aluminum Bezel |
| Mounting Style | Pedestal Mount |
| Peak Memory Recall | Yes |
| Ignition Signal Compatibility | 2 to 4 Pulse Signals (4, 6, 8 Cylinder Engines) |
What’s Included in the Box
- AutoMeter 6809 Pro-Comp 5″ 9,000 RPM Pedestal Tachometer
- Pedestal Mount Base & Strap Assembly
- Wiring Harness & Installation Hardware Kit
- Product Installation Guide
AutoMeter standard-setting race instrumentation has earned victory after victory across global motorsport disciplines. At JP Racing, we deliver genuine AutoMeter products backed by specialist UK technical knowledge and fast dispatch to keep your competitive edge intact.
