Description
Part Number: 5690

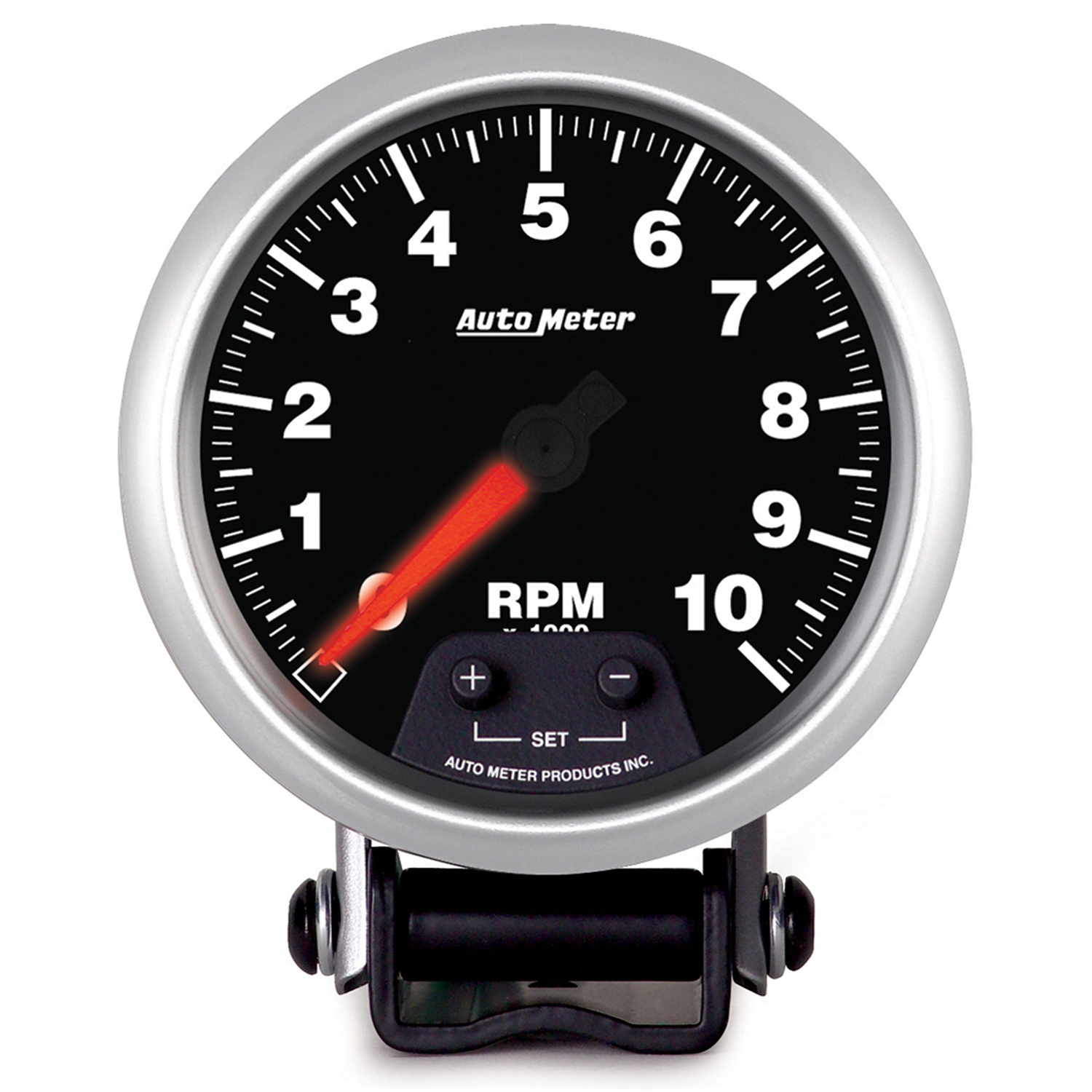

AutoMeter Elite Series 3-3/4″ Pedestal Mount Tachometer (0-10,000 RPM)
Engineered for track-proven accuracy, the AutoMeter 5690 Elite Series pedestal tachometer combines full-sweep stepper motor precision, 7 user-selectable LED backlight colors, programmable shift warning lights, and peak RPM memory recall in a compact 3-3/4″ housing.
Key Features & Performance Benefits
- ☑ 280° Stepper Motor Accuracy: Precision brushless stepper motor drive delivers ultra-responsive pointer sweeps across 0-10,000 RPM in just 333ms.
- ☑ Peak RPM Memory Recall: Integrated peak memory (“tattle tale”) allows quick post-run review of maximum engine speeds between rounds.
- ☑ Programmable Shift Light: Customisable shift point warning indicator alerts drivers for optimal gear change timing.
- ☑ 7-Color LED Illumination: User-selectable lighting (Blue, White, Red, Green, Cyan, Violet, Yellow) ensures superior dial visibility in all cockpit environments.
- ☑ Vibration-Protected Mount: Features AutoMeter’s signature aluminum and rubber shock strap design for maximum isolation against severe engine vibration.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Manufacturer Part Number | 5690 |
| Gauge Series | Elite Series |
| Gauge Type | Tachometer |
| Gauge Diameter | 3-3/4″ (95.3mm) |
| Scale Range | 0 – 10,000 RPM |
| Mounting Type | Pedestal Mount |
| Movement Type | Precision 280° Brushless Stepper Motor |
| Dial / Needle Color | Black Dial / White Numerals / Fluorescent Orange Pointer |
| Lighting | 7 User-Selectable LED Colors |
| Voltage Compatibility | 12V & 16V Electrical Systems |
| Engine Compatibility | 1 to 12 Cylinder Engines (12V Ignition) |
What’s Included in the Box
- AutoMeter 5690 Elite 3-3/4″ Pedestal Mount Tachometer Gauge
- Pedestal Mounting Bracket Assembly with Rubber Shock Strap
- Wiring Harness & Mounting Hardware
- Detailed Installation Instructions
As an official distributor, JP Racing supplies authentic AutoMeter competition instrumentation direct to UK builders and racing teams. Supported by our expert technical support team and fast UK delivery, the 5690 Elite tachometer offers professional-grade engine monitoring for high-rpm performance builds.
