Description
Part Number: 3699

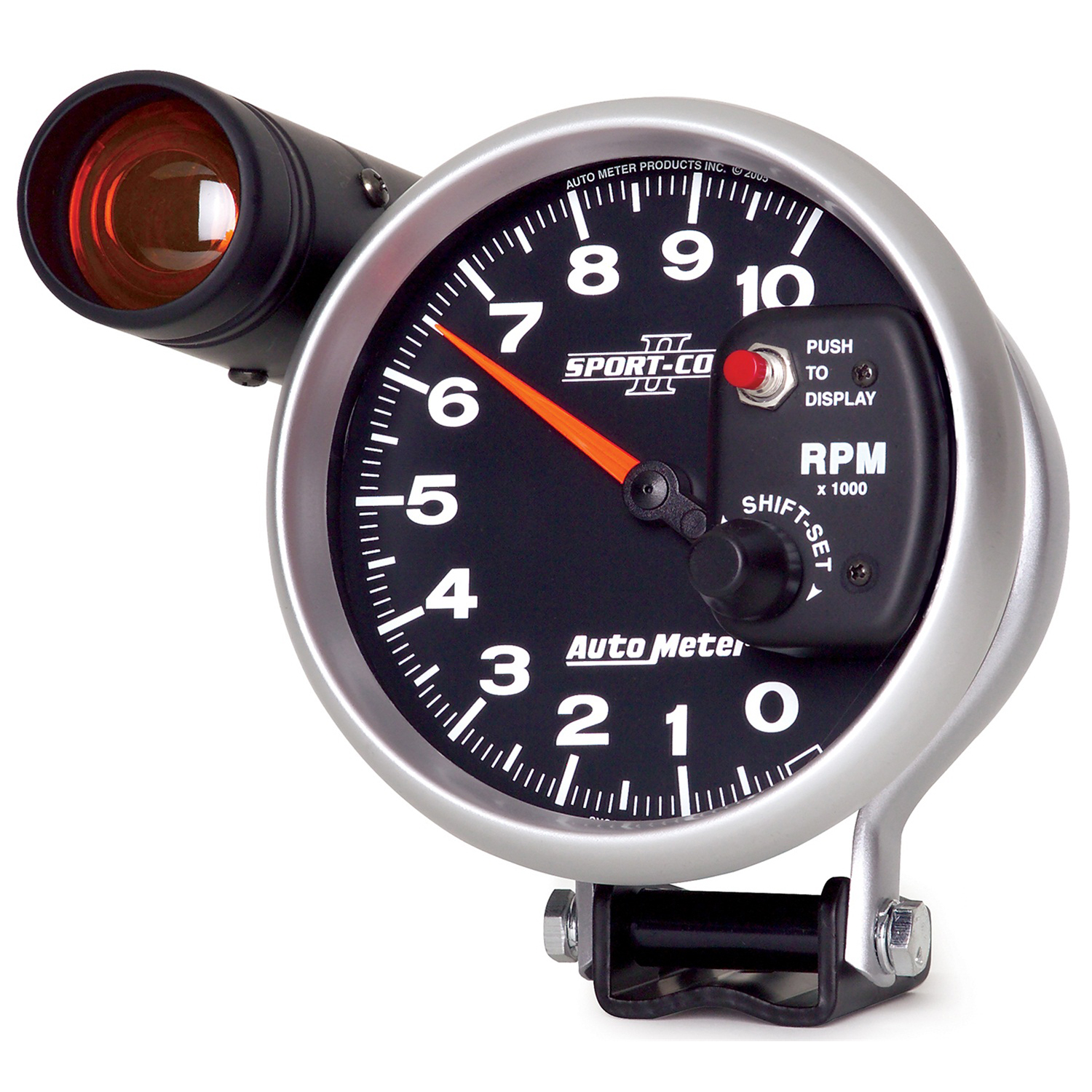

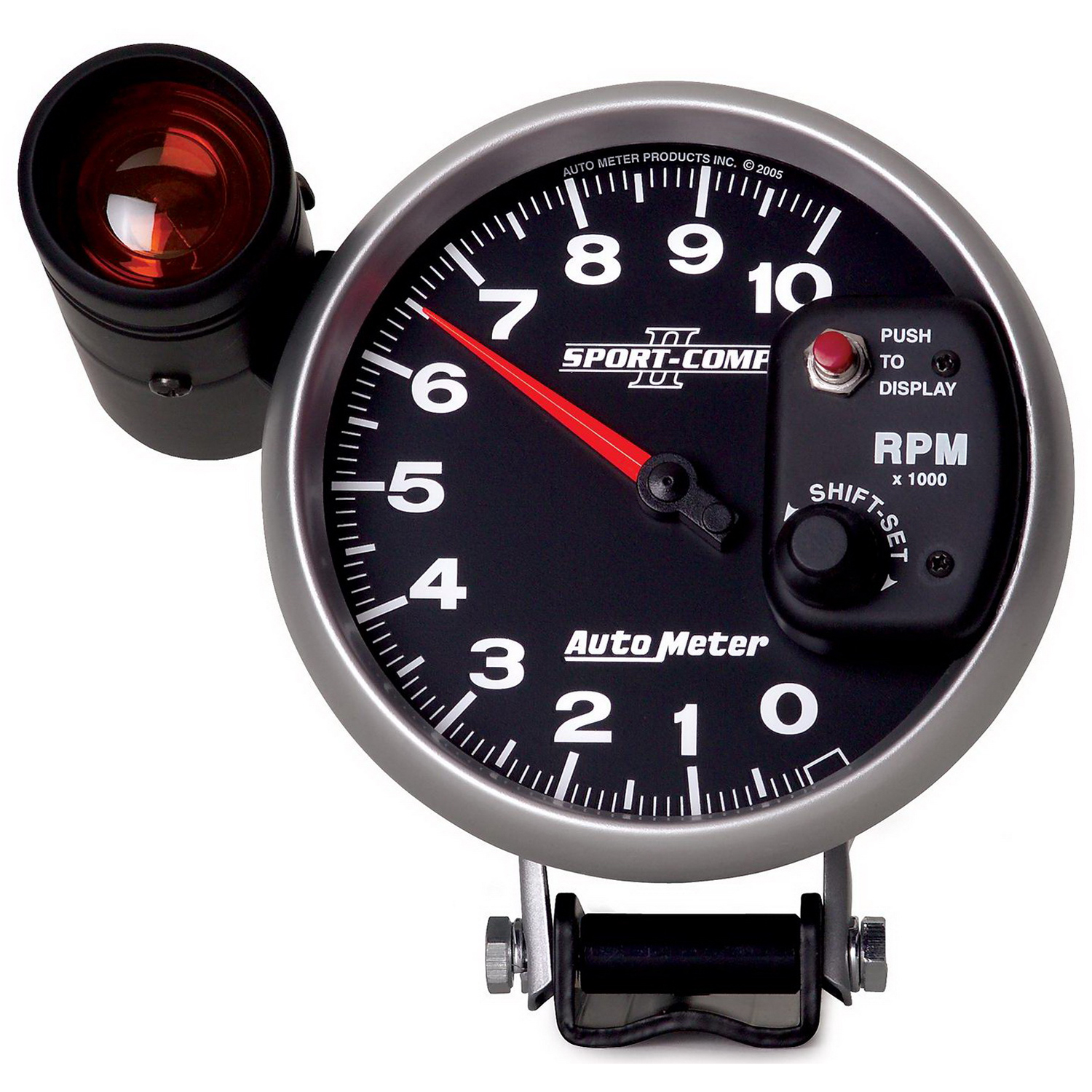

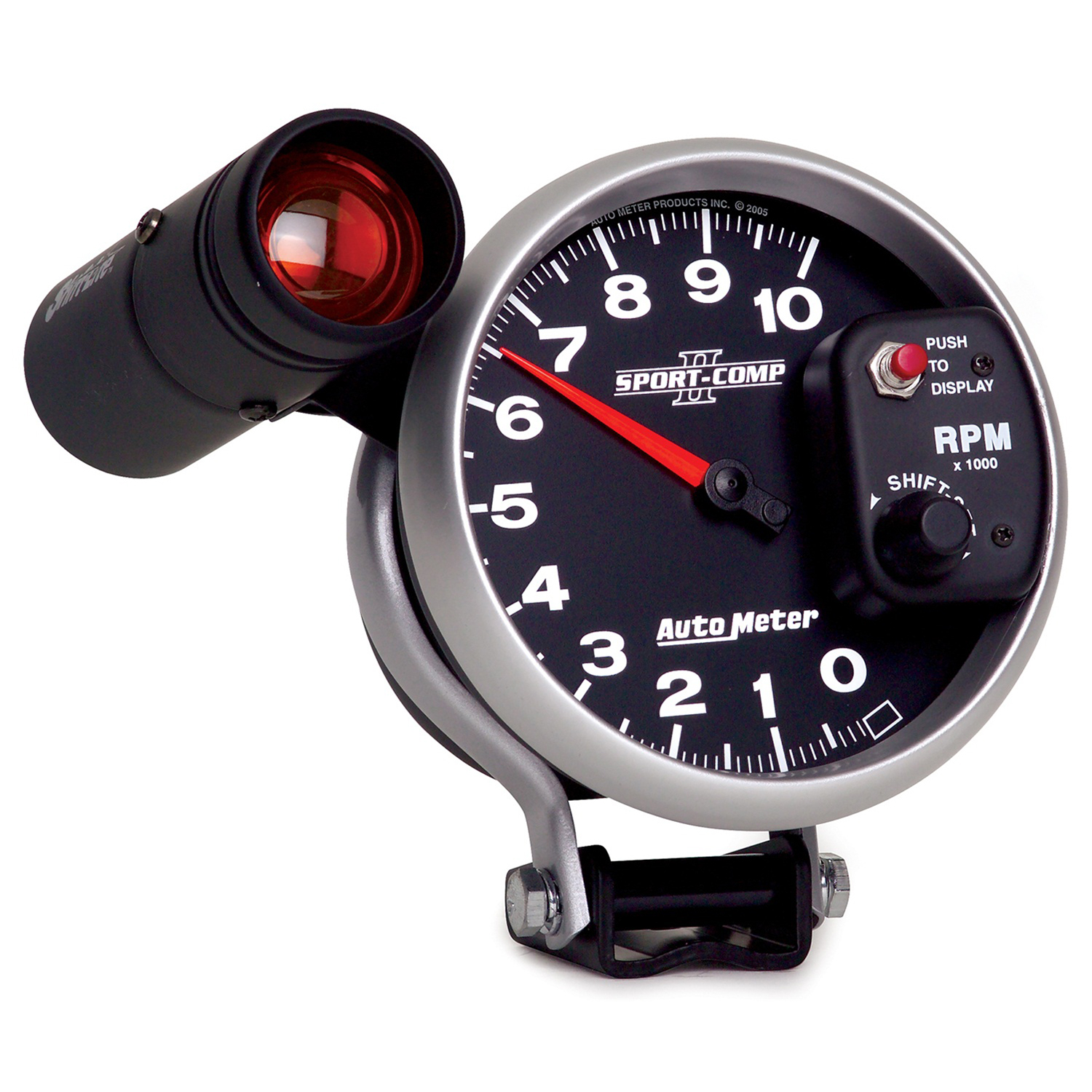

AutoMeter Sport-Comp II 5″ Pedestal Mount Electric Tachometer (0-10,000 RPM)
Engineered for competitive motorsport applications, the AutoMeter 3699 Sport-Comp II pedestal tachometer combines classic racing aesthetics with modern air-core meter movement and intense through-the-dial white LED backlighting.
Key Features
- ☑ Patented Air-Core Movement: Rapid needle response sweeping 0 to 10,000 RPM in just 333 milliseconds for uncompromised accuracy.
- ☑ High-Visibility LED Shift Light: Features an ultra-bright external shift light to ensure crisp, optimal gear changes under harsh racing conditions.
- ☑ Through-The-Dial White LED Lighting: Modern white LED illumination behind a dark black face provides glare-free readability during night racing.
- ☑ Broad Ignition Compatibility: Works seamlessly with 1-4 pulse ignition signals (2 to 8-cylinder engines) using points, electronic, or 12V high-performance ignitions.
- ☑ Versatile Pedestal Mount: Heavy-duty 5″ pedestal base allowing flexible position tuning on dashboards or roll cages.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Part Number | 3699 |
| Gauge Series | Sport-Comp II |
| Gauge Diameter | 5″ (127mm) |
| RPM Range | 0 – 10,000 RPM |
| Gauge Type | Electric Air-Core Analog Tachometer |
| Mounting Style | Pedestal Mount |
| Face / Bezel Finish | Black Dial Face / Brushed Aluminum Bezel |
| Lighting Type | White Through-the-Dial LED |
| Shift Light | External LED Shift Light Included |
| Voltage Compatibility | 12V & 16V Racing Systems |
| Engine Compatibility | 2 to 8 Cylinder (1 to 4 Pulse Signals) |
What’s Included in the Box
- AutoMeter 3699 Sport-Comp II 5″ 10,000 RPM Tachometer
- External High-Intensity LED Shift Light Assembly
- Heavy-Duty Pedestal Mounting Base & Strap Bracket
- Wiring Harness & Installation Hardware
AutoMeter instruments have been the choice of championship winning drivers for over six decades. As an authorised UK motorsport supplier, JP Racing offers full warranty backup, expert technical assistance, and fast UK dispatch on all AutoMeter products.
