Description
Part Number: 6897

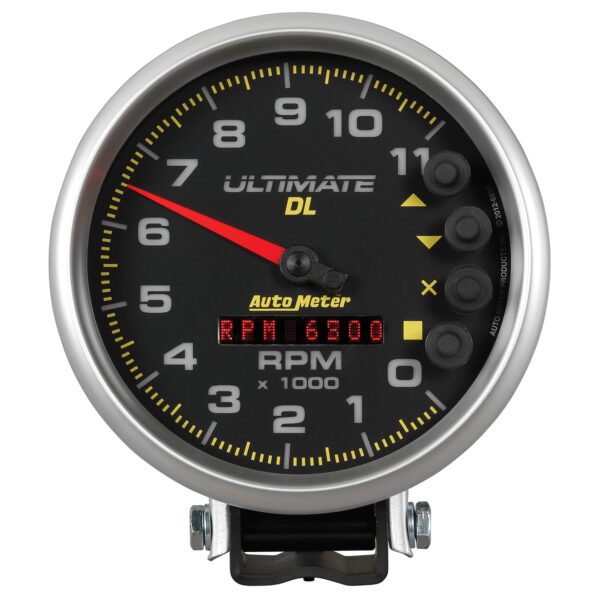

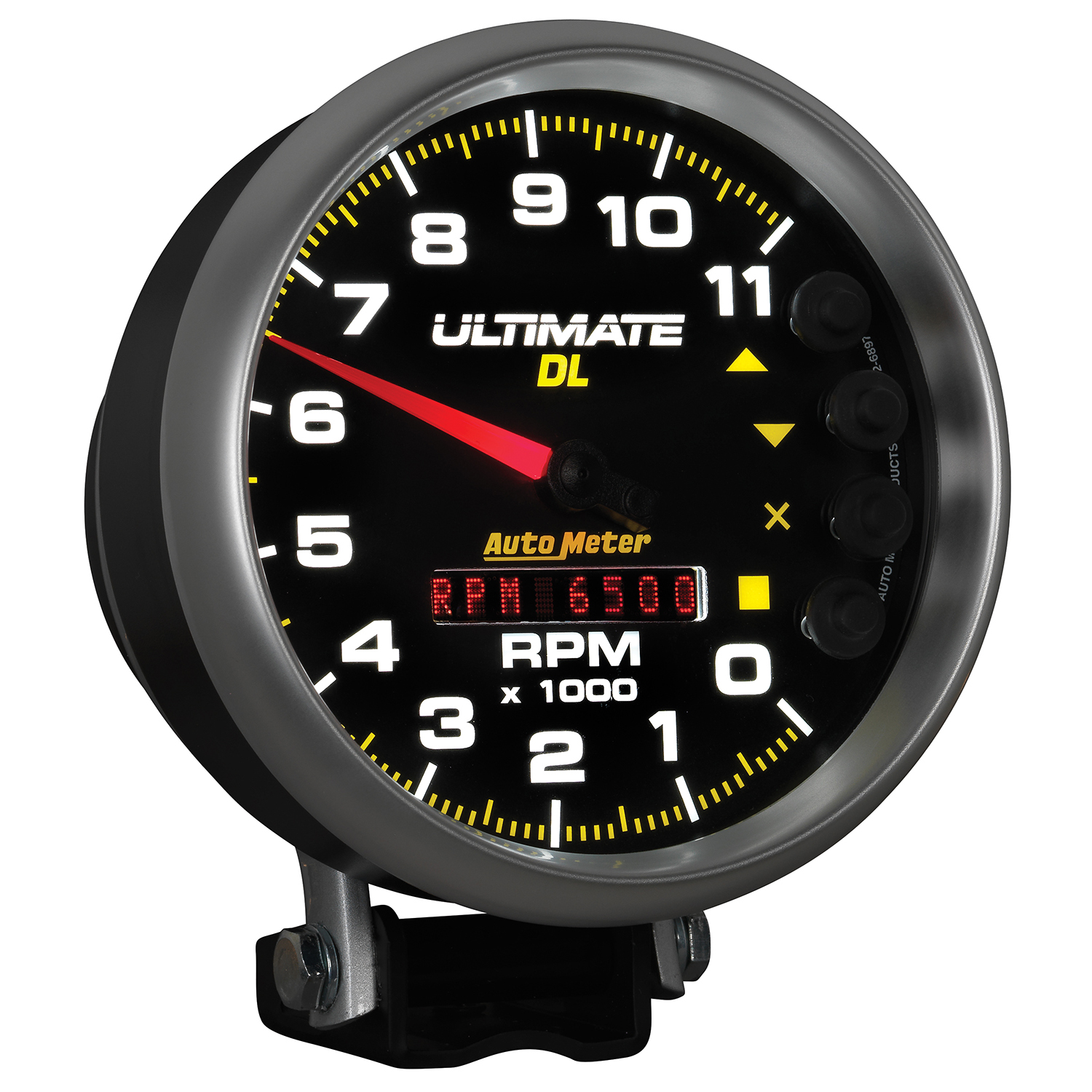

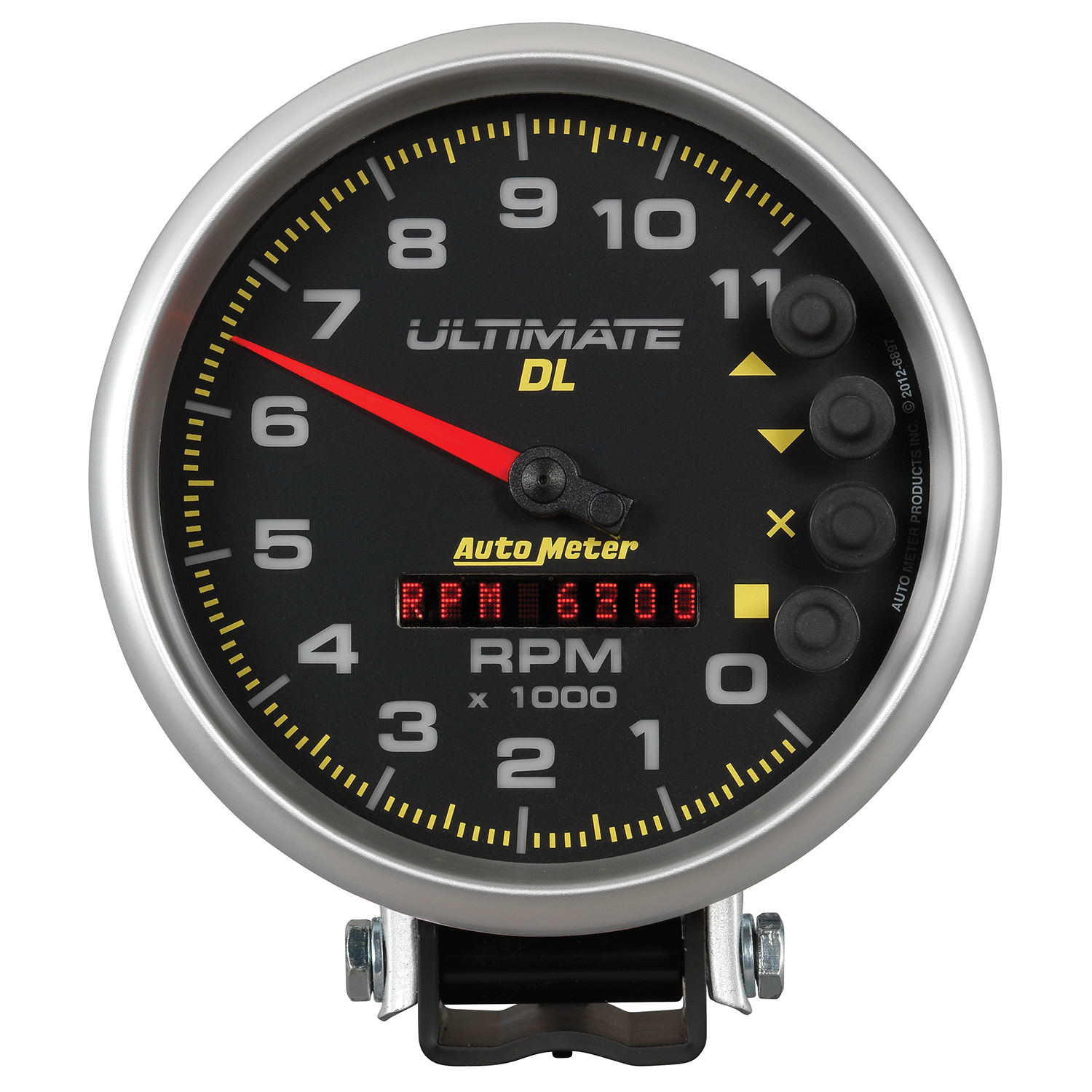

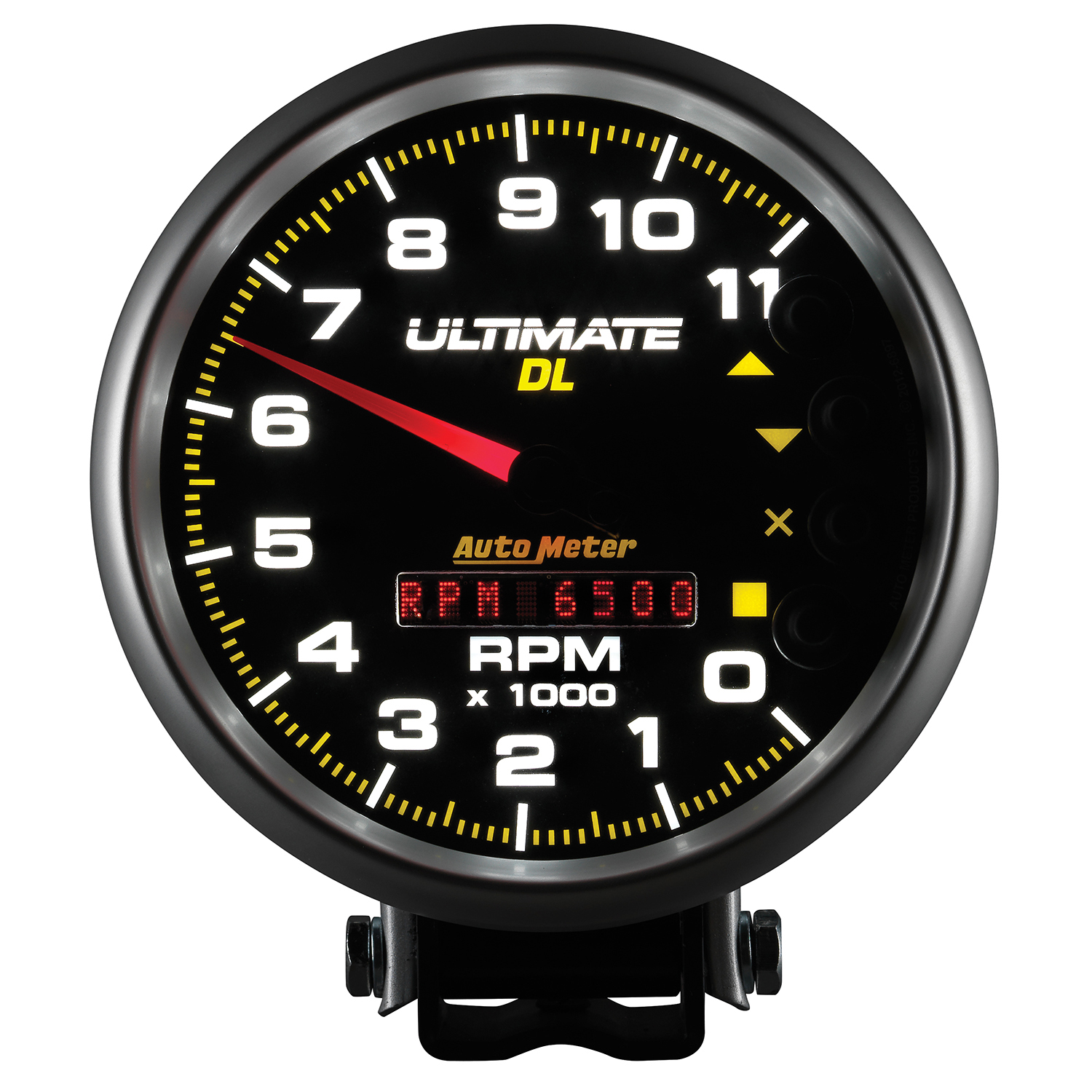

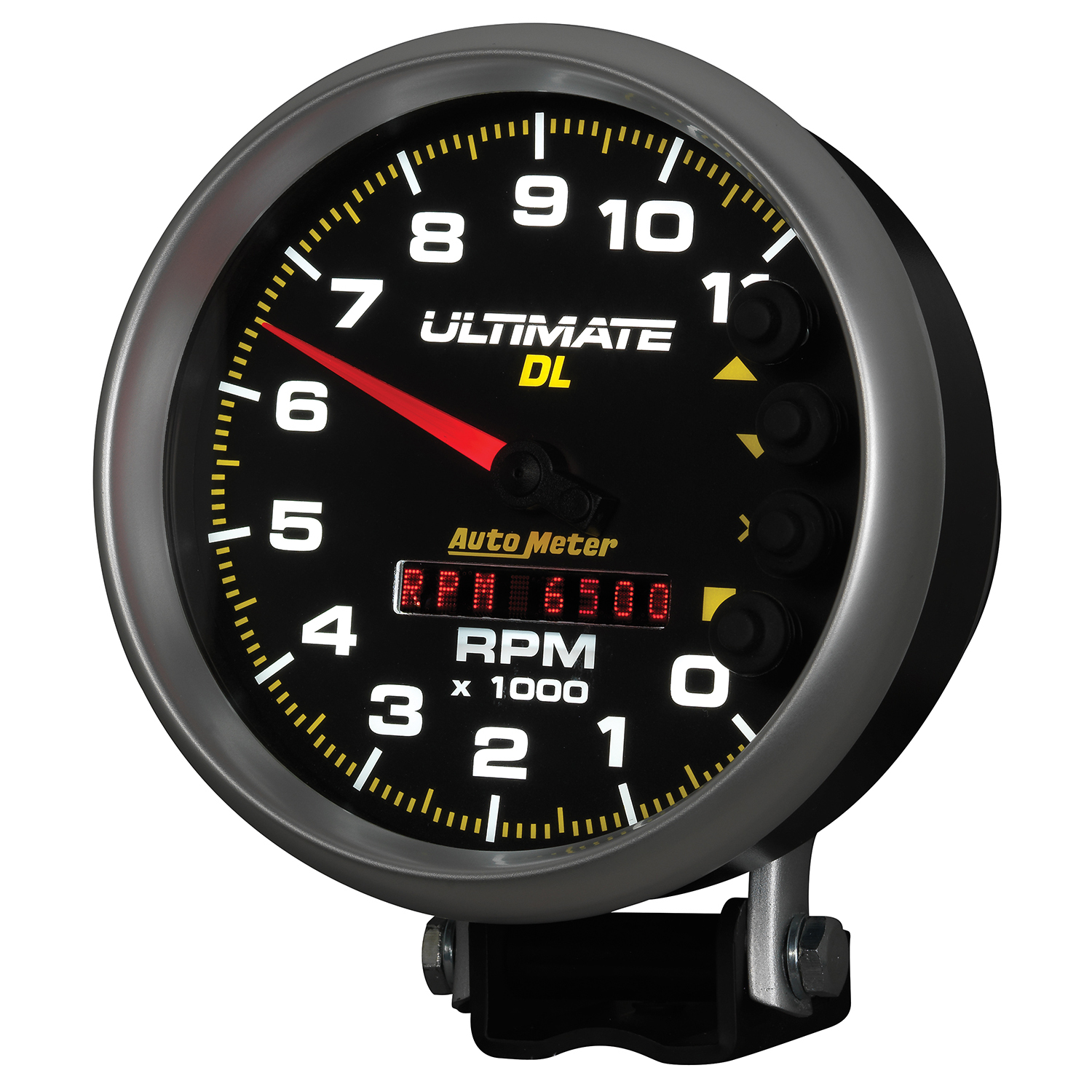

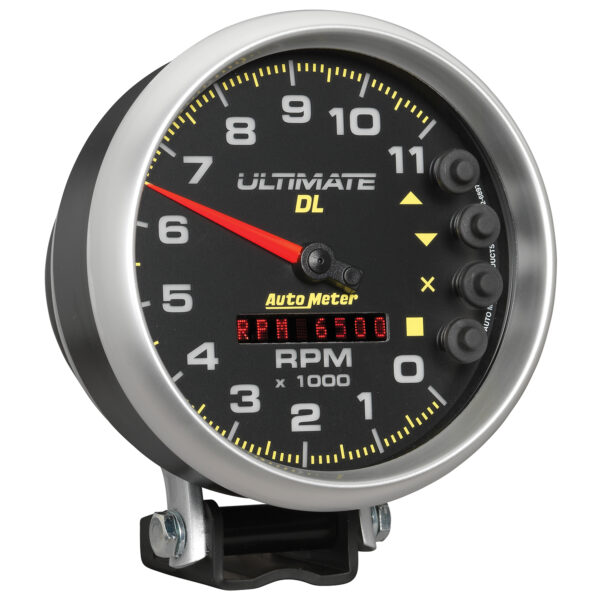

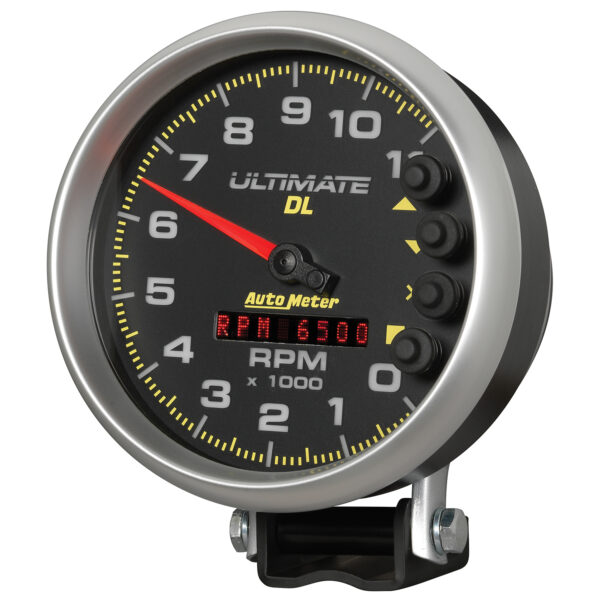

AutoMeter Ultimate DL 5″ Playback Tachometer (0-11,000 RPM)
The definitive drag racing instrumentation tool featuring 7-channel data logging, 4-stage shift light control, and ultra-responsive 333ms sweep timing.
Key Product Features
- ☑ High-resolution 7-channel data logging (Engine RPM, Driveshaft RPM, 3-Axis G-Forces, AFR, and Pressure)
- ☑ Record and playback up to 4 runs (60 seconds each) with 100 Hz DataPro software download support
- ☑ Competition grade air-core movement with 0-11,000 RPM full sweep in just 333 milliseconds
- ☑ Integrated 4-stage shift light control system for optimal launch and gear change timing
- ☑ Automatic Recording Memory Start (ARMS) system for hassle-free hands-free recording
- ☑ 30% lighter than previous Ultimate II designs with high-vibration resistant LED backlighting
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Part Number | 6897 |
| Gauge Series | Ultimate DL Playback |
| Gauge Diameter | 5″ (127mm) Pedestal Mount |
| RPM Range | 0 – 11,000 RPM |
| Sweep Speed | 0-11k RPM in 333 ms |
| Data Channels | 7 Channels (Engine & Driveshaft RPM, Lateral/Longitudinal/Vertical G-Forces, AFR, Pressure) |
What’s Included in the Box
- AutoMeter 6897 Ultimate DL 5″ Pedestal Tachometer Gauge
- 4-Stage External Shift Light Assembly
- Wiring Harness and Sensor Connection Cables
- Pedestal Mounting Bracket and Hardware Kit
- Installation Manual and Operating Guide
Engineered for high-level drag racing and performance tuning, the AutoMeter 6897 Ultimate DL playback tachometer supplies essential engine data to protect components, refine clutch strategies, and improve overall run consistency. As an official UK performance supplier, JP Racing delivers authentic AutoMeter hardware with fast UK shipping and dedicated technical support.
