Description
Part Number: 3965

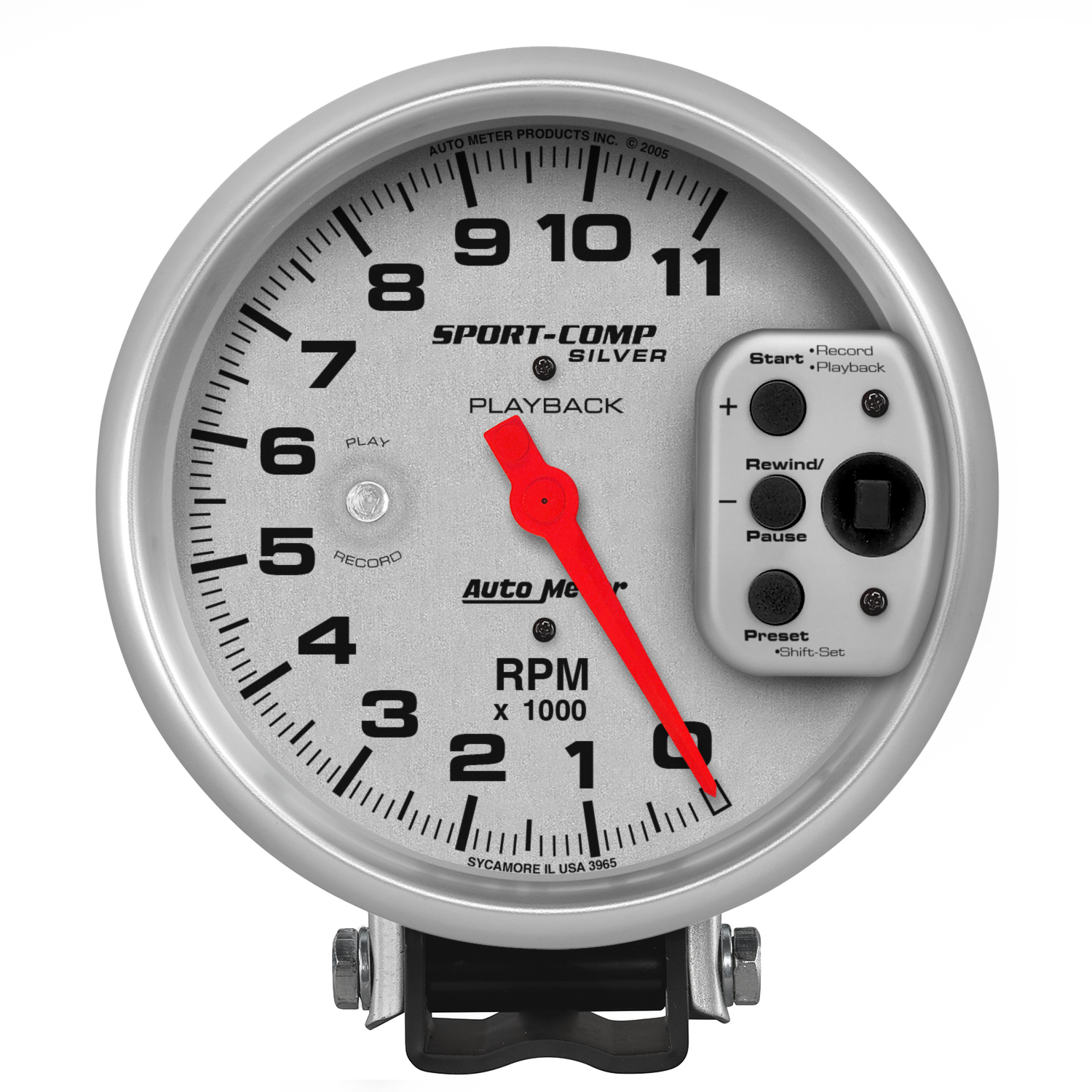

AutoMeter Ultra-Lite 5″ Pedestal Playback Tachometer (0-11,000 RPM)
Engineered for drag racing and high-performance motorsport analysis, the AutoMeter 3965 Ultra-Lite 5″ Playback Tachometer records up to 80 seconds of engine RPM data during a run. Featuring ultra-responsive air-core movement and slow-motion replay capabilities, this pedestal-mount instrument provides vital data on launch RPM, shift points, and trap speeds.
Key Features
- ☑ RPM Playback Technology: Records up to 80 seconds of continuous engine RPM data with 1:1 real-time or 1:3 slow-motion replay modes.
- ☑ Ultra-Responsive Air-Core Movement: Race-proven electric movement sweeps from 0 to full scale in just 333 milliseconds for uncompromised precision.
- ☑ Classic Ultra-Lite Styling: High-contrast silver dial face, crisp black numerals, red pointer, and perimeter incandescent illumination.
- ☑ Universal Ignition Compatibility: Operates on 0.5 to 6 pulse ignition signals (1 to 12-cylinder engines) with points, electronic, and 12V/16V racing ignitions.
- ☑ Expandable Shift-Lite Port: Includes built-in connector port for adding optional AutoMeter external shift lights or Launch Lite indicators.
Technical Specifications
| Manufacturer | AutoMeter |
|---|---|
| Part Number | 3965 |
| Gauge Series | Ultra-Lite |
| Gauge Type | Playback Tachometer |
| Gauge Size | 5″ (127mm) Diameter |
| RPM Range | 0 – 11,000 RPM |
| Dial Face Color | Silver |
| Pointer Color | Red |
| Bezel Finish | Brushed Aluminum / Silver |
| Movement Type | Electric Air-Core |
| Operating Voltage | 12V and 16V Compatible |
| Data Recording | Up to 80 Seconds |
| Playback Speeds | 1:1 Real Time, 1:3 Slow Motion (with Fast Forward / Reverse) |
| Signal Compatibility | 0.5 – 6 Pulse (1 – 12 Cylinder Engines) |
| Mounting Style | Pedestal Mount |
What’s Included in the Box
- • AutoMeter 3965 Ultra-Lite 5″ Playback Tachometer Gauge
- • Pedestal Mounting Bracket & Assembly Hardware
- • Wire Harness & Remote Trigger Lead
- • Bulb and Socket Assembly with Red & Green Covers
- • Installation Guide & Hardware Kit
As an official UK distributor for AutoMeter precision instruments, JP Racing guarantees authentic components backed by expert technical advice and quick UK dispatch. Upgrade your race vehicle data collection with trusted performance hardware.
