Description
Part Number: WP101CHD

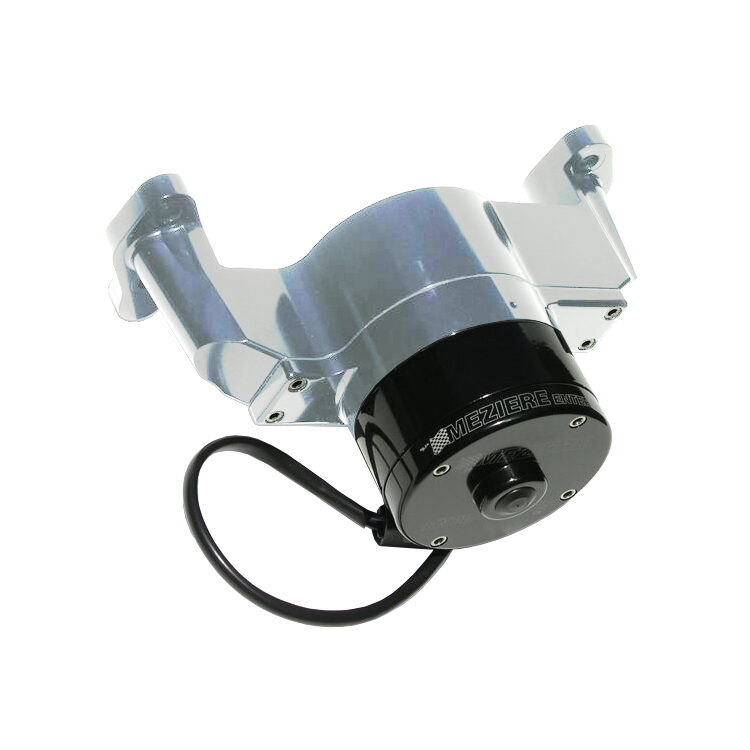

Meziere Small Block Chevy Heavy Duty Electric Water Pump – Chrome
High-performance 42 GPM electric water pump engineered for Small Block Chevy engines, featuring a show-quality chrome finish and a heavy-duty motor for street and drag strip applications.
Key Features
- ☑ Heavy Duty Motor: Delivers an impressive 42 GPM free-flow rating with a 3,000+ hour motor life expectancy.
- ☑ Show-Quality Finish: Precision-machined billet aluminum housing finished in brilliant chrome.
- ☑ Parasitic Drag Elimination: Frees up horsepower lost to traditional mechanical belt-driven water pumps at high RPM.
- ☑ Belt & Blower Drive Clearance: Machined back-spacing clears Jesel cam belt drives and most roots-style blower systems.
- ☑ Durable Internal Componentry: Large-diameter stainless steel shaft equipped with a high-performance ceramic seal.
Technical Specifications
| Brand | Meziere Enterprises |
|---|---|
| Manufacturer Part Number | WP101CHD |
| Engine Fitment | Small Block Chevy (SBC) |
| Flow Rate | 42 GPM Free Flow |
| Motor Type | Heavy Duty (3000+ Hour Life Expectancy) |
| Finish | Chrome |
| Housing Material | Billet Aluminum |
| Inlet Thread Size | 1″ NPT Female Port |
| Current Draw | 6-7 Amps (Normal Operation) |
| Overall Unit Weight | 5.5 lbs (2.5 kg) |
| Overall Height Dimension | 7.25″ from mounting surface to tip |
What’s Included in the Box
- 1 x Meziere Heavy-Duty Electric Water Pump Body (Chrome finish)
- 1 x High-grade mounting gasket set
- 1 x Stainless steel mounting hardware pack
- 1 x Wiring harness with inline 20A fuse
Meziere Enterprises is legendary in world-class motorsport for engineering superior cooling solutions proudly manufactured in the USA. Available with rapid UK dispatch and expert technical support from JP Racing, the WP101CHD guarantees optimum thermal control and maximum reliability for your high-horsepower Chevy engine.
