Description

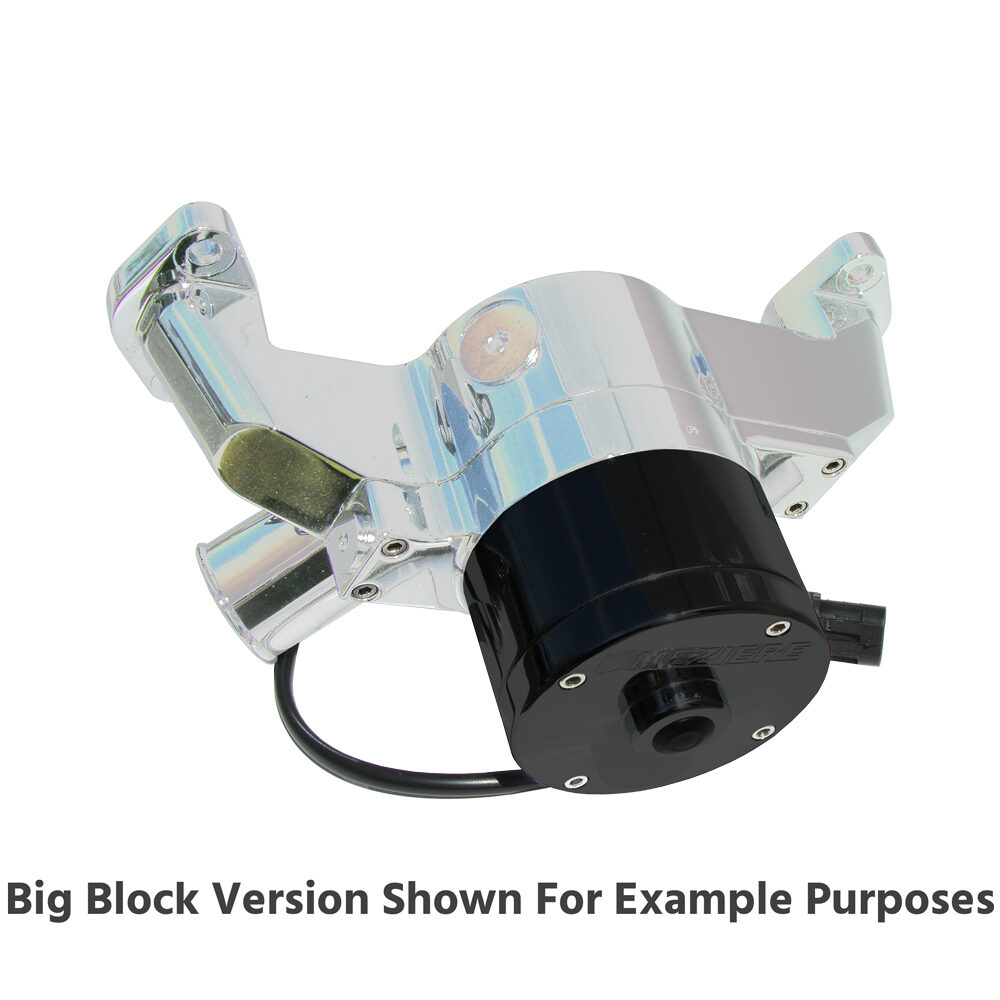

MEZIERE 12v Electric Water Pump Small Block Chevy High Flow 35GPM Polished Trans Pan
MEZIERE 12v Electric Water Pump Small Block Chevy High Flow 35GPM, Polished, Transmission Pan Ready
American made with quality far superior to any other performance aftermarket company, Meziere build their water pumps with pride in the USA. Don’t be mislead by inflated flow numbers and competitors’ outlandish claims. They say what they mean and mean what they say. Their 2 year, unlimited mileage guarantee and full satisfaction money back guarantee should convince you that buying Meziere is buying value!
Meziere Enterprises is a family owned and operated company focused on success through value. For 27 years their goal has been to provide our customers with the very best products. That starts with designs aimed at solving problems common to the performance vehicles and their demanding parameters. It is executed by their wide array of machining and manufacturing capabilities, and attention to detail.
Overview
Supplier Description: 12v Electric Water For Pump Small Block Chevrolet (SBC)
Supplier Variant: Racing / High Flow / 35 Gallons Per Minute (GPM)
Supplier Finish: Polished
Supplier Part Number: WT301U
Supplier: Meziere
For Use With The MEZIERE Uprated Transmission Pan
Features
Fits Small Block Chevrolet (SBC)
Suitable for street or drag strip use – 2400+ hour life expectancy
Has a high and low pressure #6AN connection MEZIERE transmission pan
Show quality finish
All stainless steel hardware included
Lightweight. Complete Big Block Chevy unit weighs only 5.5 pounds (2.5kg)
Stainless steel large diameter main shaft with high performance ceramic seal
Pump will clear cam belt drives and most blower drives
1″ NPT inlet adapters are available for #12AN, #16AN, #20AN, 1¼”, 1½” or 1&frac31;” slip hose
Technical Specifications
Belt Drives: Standard SBC design will clear Jesel belt drives and comparable belt drive systems
Distributer Belt Drives: Spacers will be necessary to clear belt drive distributor systems
Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting. The fitting needs to be ordered according to the size of the lower radiator hose
Amperage draw: Under normal use the pump will draw 6-7 amps
Overall Height Dimension: The standard pump is 6.78″ long from the mounting surface to the tip of the pump
Pump Weight: This application weighs 5.5 lbs (2.5kg)
16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system
Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model is available in ported and non-ported configuration. The low pressure port can act as a heater, bypass or expansion tank connection.
