Description

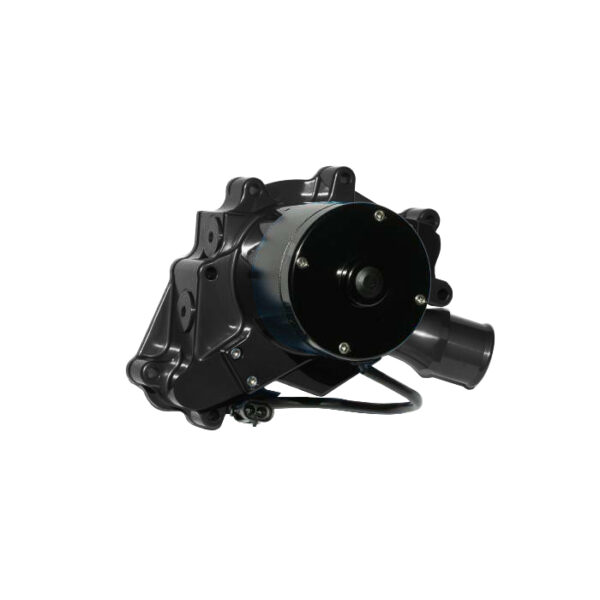

MEZIERE 12v Electric Water Pump Small Block Ford High Flow 55GPM Black
MEZIERE 12v Electric Water Pump Small Block Ford High Flow 55GPM Black
American made with quality far superior to any other performance aftermarket company, Meziere build their water pumps with pride in the USA. Don’t be mislead by inflated flow numbers and competitors’ outlandish claims. Meziere say what they mean and mean what they say. Their 2 year, unlimited mileage guarantee and full satisfaction money back guarantee should convince you that buying Meziere is buying value!
Meziere Enterprises is a family owned and operated company focused on success through value. For 27 years their goal has been to provide our customers with the very best products. That starts with designs aimed at solving problems common to the performance vehicles and their demanding parameters. It is executed by their wide array of machining and manufacturing capabilities, and attention to detail.
Overview
Supplier Description: 12v Electric Water Pump Small Block Ford (SBF)
Supplier Variant: Racing / High Flow / 55GPM
Supplier Finish: Black
Supplier Part Number: WP311S
Supplier: Meziere
Features
Fits small block Ford Windsor and 5.0 V8’s pre 1994
Suitable for street or drag strip use – 3000+ hour life expectancy
Show quality finish
High flow design provides 55 gallons per minute free flow rating
All stainless steel hardware included
Ports provided for heater and bypass
Inlet fitting, heater and bypass fitting included
Lightweight. Complete Small Block Ford unit weighs only 8.6 pounds
Stainless steel large diameter main shaft with high performance ceramic seal
Dual inlet ports threaded #20AN to accept a variety of fitting options
Inlet fitting included – 1.75″ hose for stock configuration
Technical Specifications
If you are running a cam belt drive on your small block Ford this will not be the correct part number. Please see part # WP173
Finishing The System: This pump is supplied complete with gaskets and hardware and fittings. You should not need any additional items for this installation
Inlets available for hose sizes 1.75″, 1.50″, 1.25″ and AN sizes #20 and #16
This pump model does accept heater and bypass connection as a standard
Amperage draw: Under normal use the pump will draw 11-12 amps
Overall Height Dimension: The standard pump is 6.13″ long from the mounting surface to the tip of the pump
Pump Weight: This application weighs 8.6 lbs
16 volt systems: The 12 volt pump will work for limited use applications. Do not run the pump while charging the 16v system

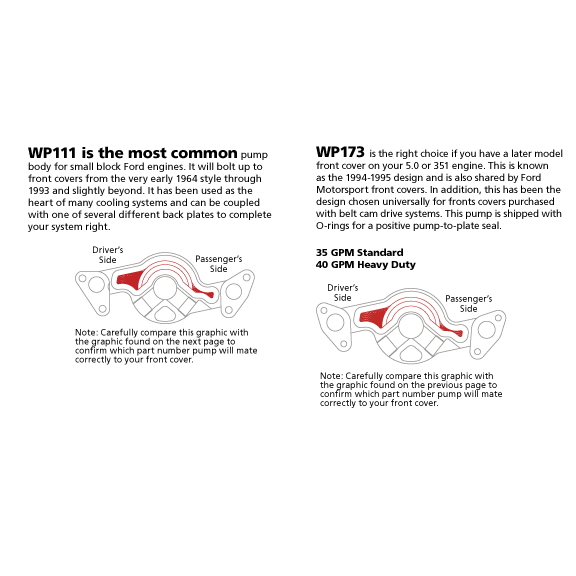

Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. The small block Ford engine has gone through several design changes at the factory since its inception. There are two different 55 GPM pump models that may be right for your engine. For more information regarding small block Ford applications and how to tell which pump is correct for you, please see the SB Ford addendum sheet. Click the thumbnail photo above.
Installation
