GARRETT Bar & Plate Air to Air Intercooler Core 410HP

Description

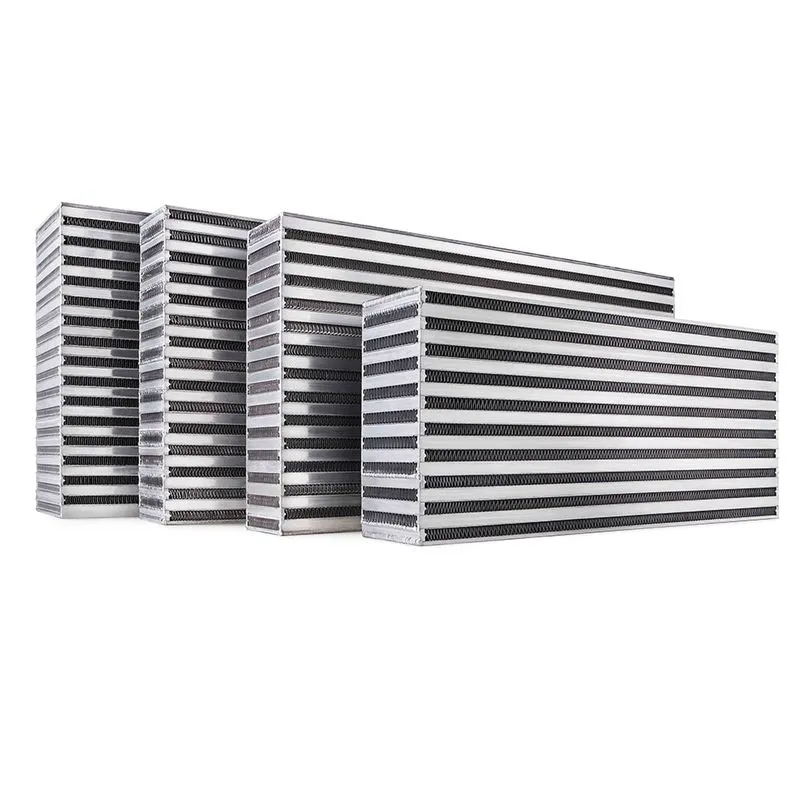

GARRETT Bar & Plate Air to Air Intercooler Core 410HP

GARRETT Bar & Plate Air to Air Intercooler Core 410HP

Garrett performance intercoolers and intercooler cores work together with the turbocharger as part of the total induction system. when air is compressed in the turbocharger it yields a lot of heat. the job of the intercooler is to remove heat from the charge air making it more dense. a denser charge equals more air and fuel to the engine and that translates to more horsepower potential.
A full range of bar and plate intercooler cores that are manufactured by Garrett technicians. Their bar and plate intercooler cores are proven to reduce intake temperatures through advanced fin density and offset composition.
Key Features

High Efficiency Bar And Plate Construction
Vacuum Brazed Manufacturing For Durability
Advanced Offset Fin Design For Greater Heat Transfer Effectiveness
Air-To-Air Horizontal Flow Design

Overview

Description: Intercooler Core
Model: Air to Air
Horsepower Range: 410 HP (Engine)
Part: 703518-6016
Supplier: Garrett Motion

Dimensions

Length (Hot Flow): 457mm / 18″
Height (No Flow): 203mm / 8″
Width (Cold Flow): 76mm / 3″

Garrett Motion is one of the world’s leading pioneers of turbo technology, providing engine boosting systems to racers and enthusiasts worldwide. You will find one of the largest ranges of performance Turbochargers, Intercoolers, and Valves from 1.4L – 12.0L engine displacements with a range of horsepower from 140 – 3000. Standard and reverse rotation turbo options for symmetrical fitments and a full line of intercooler cores, wastegates and accessories.
