SERCK Performance Aluminium Radiator, Aston Martin DB6 WITH AIR CON

Description

SERCK Performance Aluminium Radiator, Aston Martin DB6 WITH AIR CON

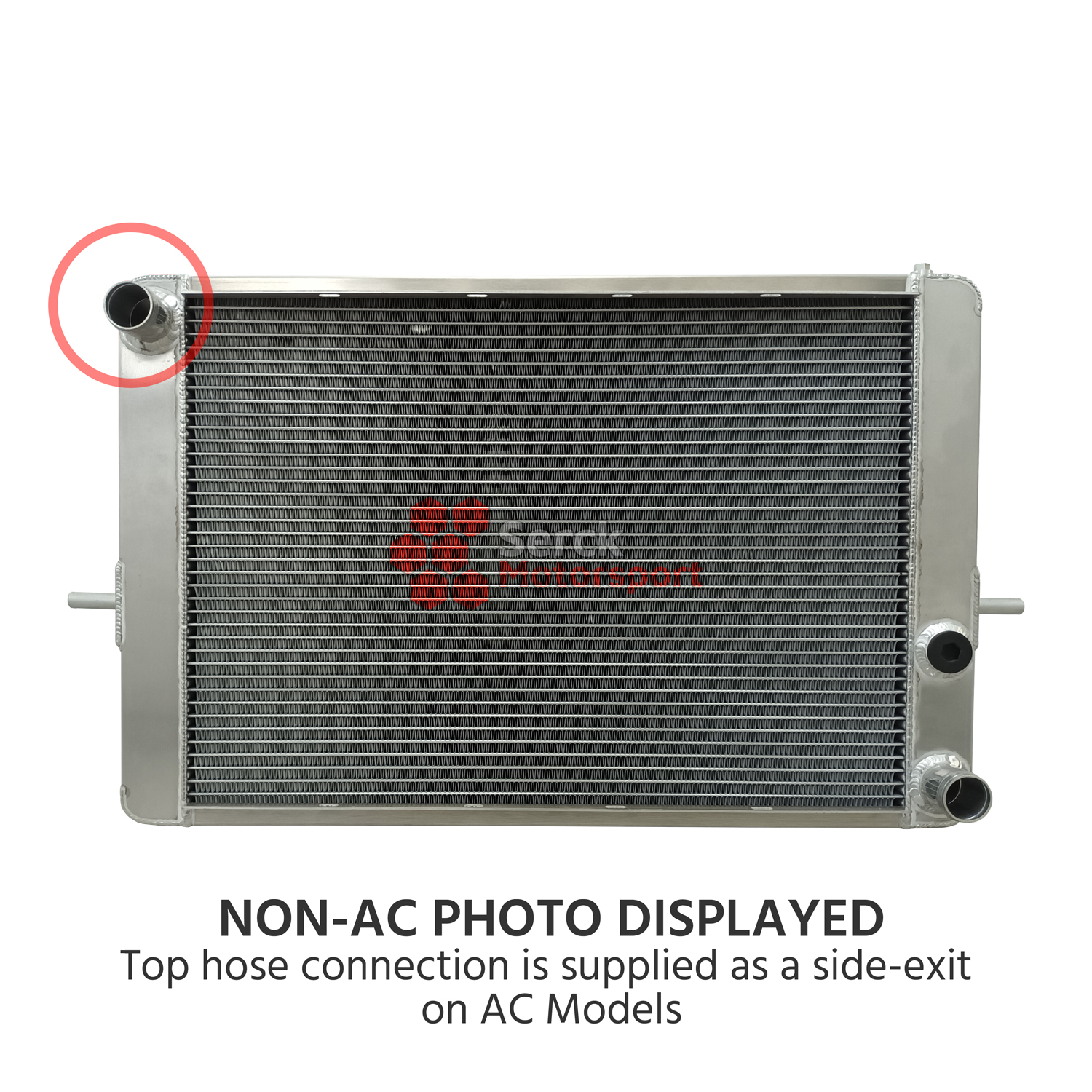

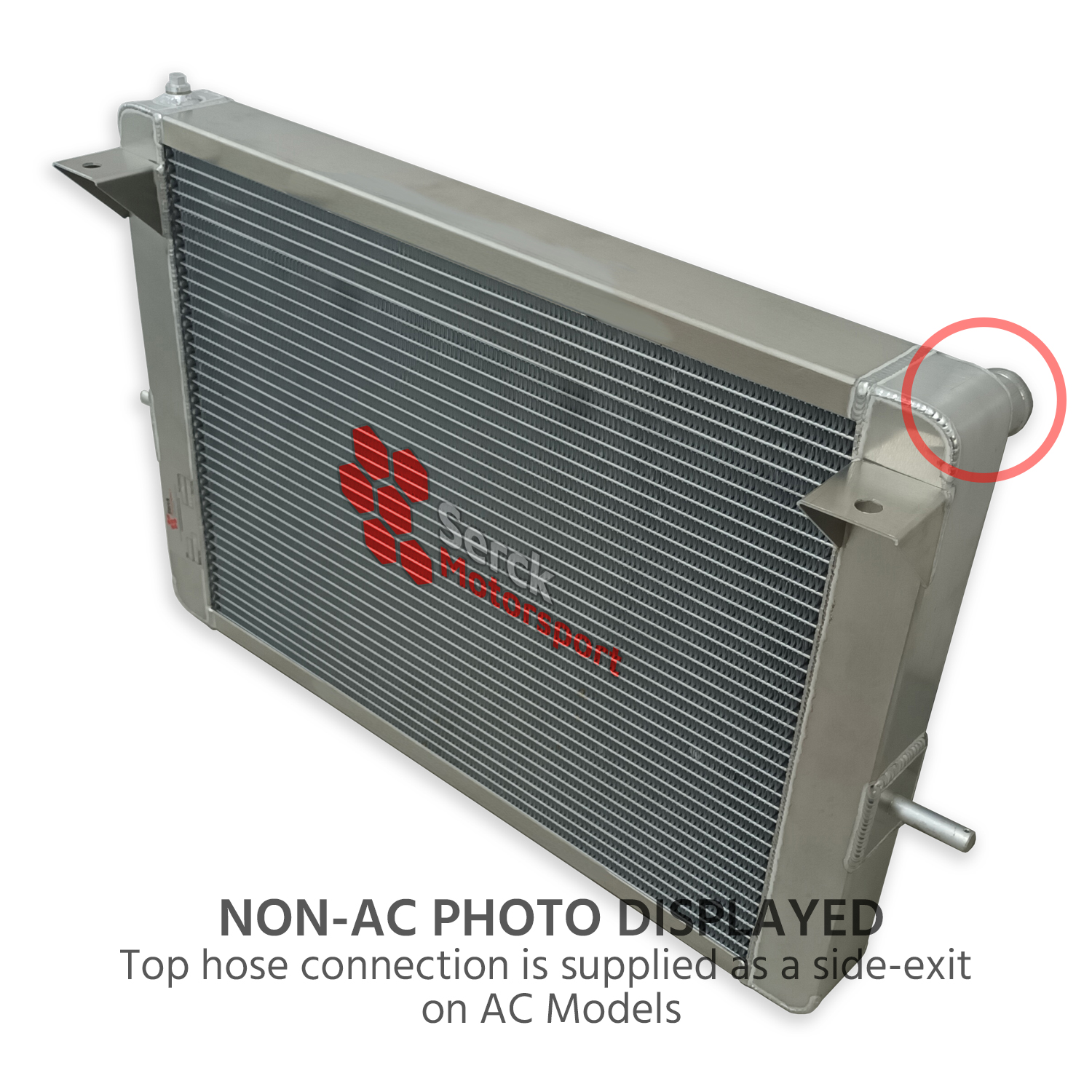

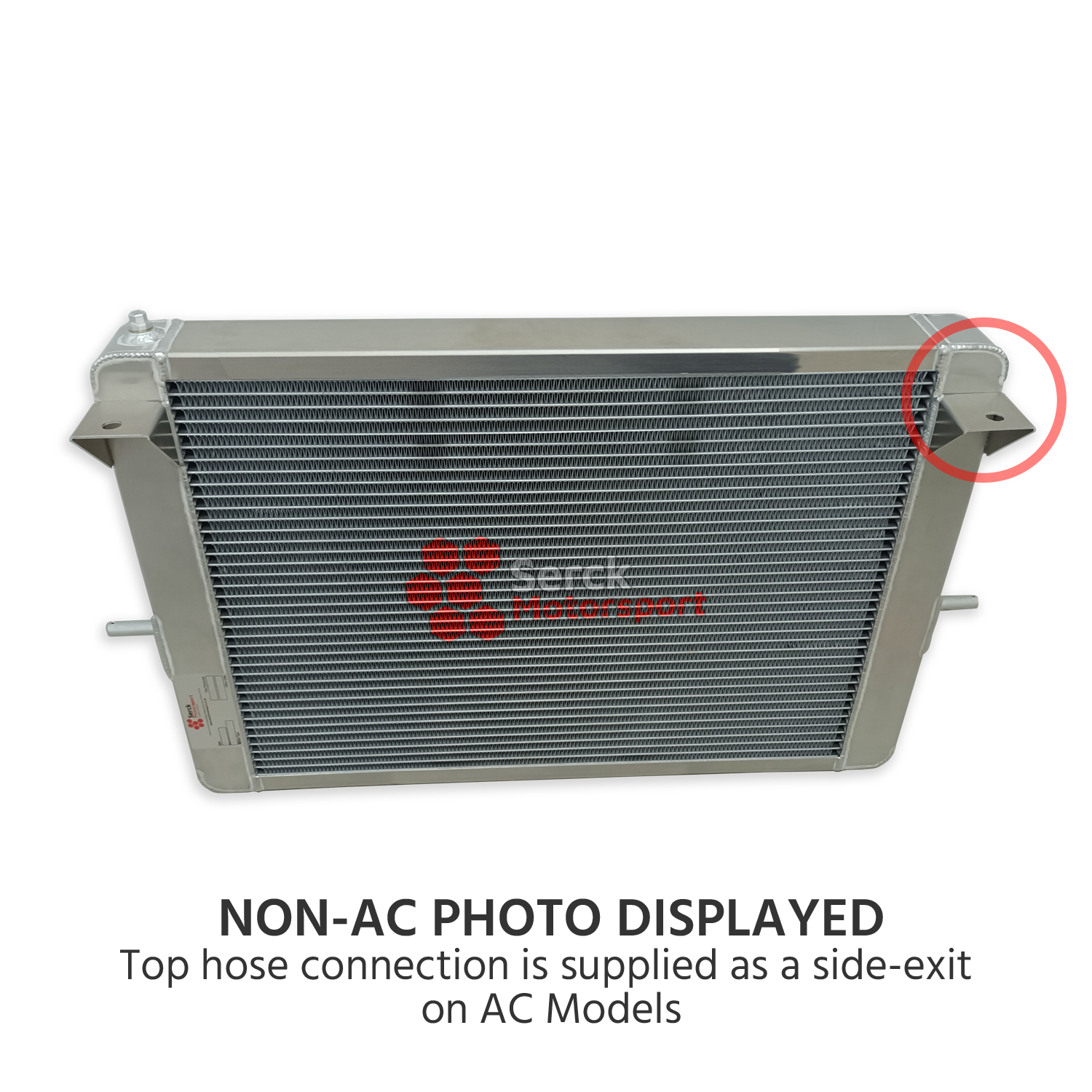

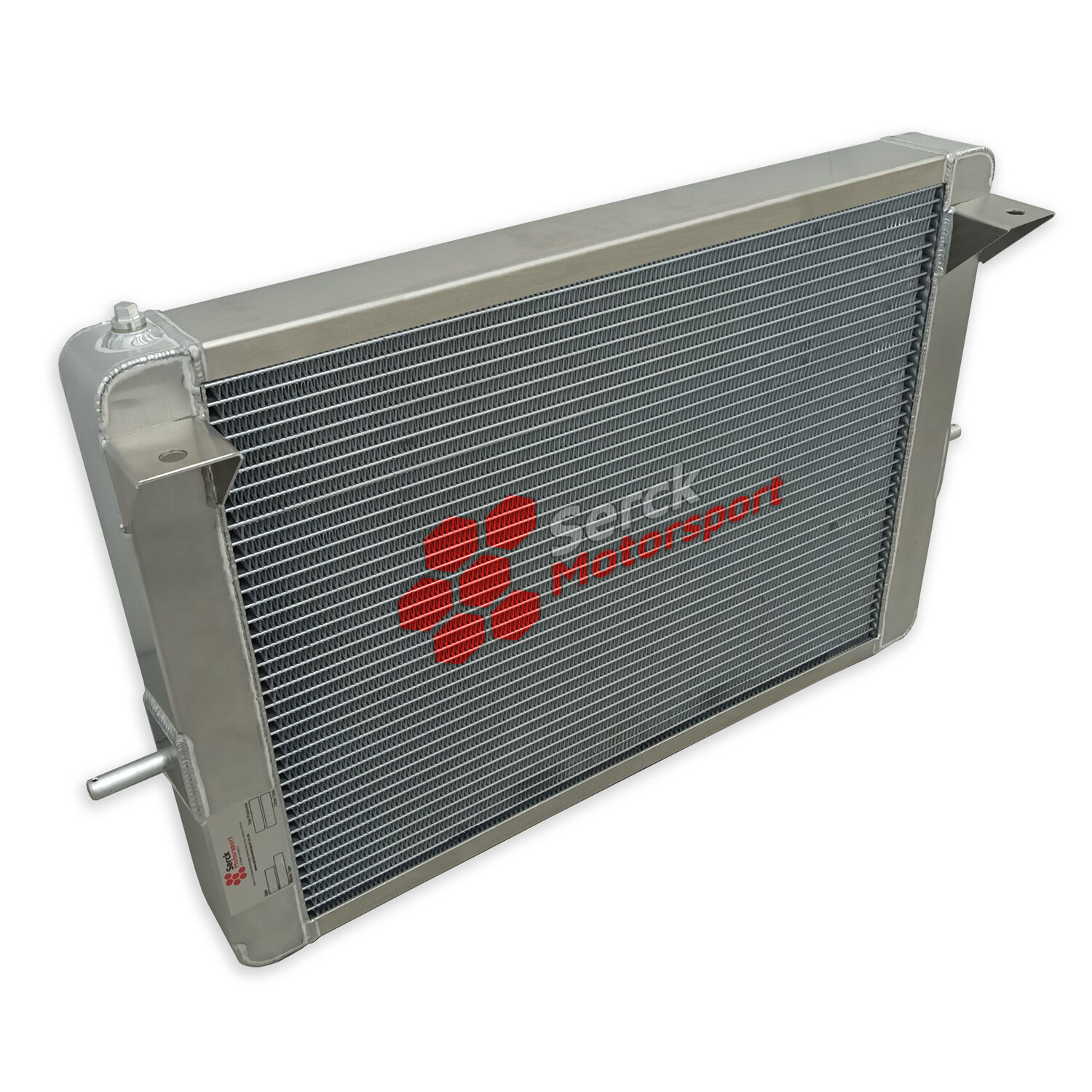

SERCK Performance Aluminium Radiator, Aston Martin DB6 (Only models with optional air conditioning)

This is a performance radiator manufactured from a combination of aerospace and automotive grade aluminium, here in the UK by us at Serck Motorsport. It will only fit the Aston Martin DB6 1965-1970 (Only models fitted with optional air conditioning). This offers significant weight improvement with improved flow rates, leading to enhanced performance and power over longer periods, making it suitable for road and racing use.
This radiator is a popular selection from our extensive range of classic coolers, developed as a direct replacement using the original pattern. It is hand crafted in-house to the highest standards and uses a Serck-specific original design to enhance flow and temperature dissipation rates via a 16 fins-per-inch core specification. It is highly efficient in performance and cooling rates due to its fine fin pitch. The gas flowed, flared ports, tank design and core specifications make this one of our most popular coolers available for Aston Martin models.

Overview

Description: Aluminium Performance Radiator
Fitment: Aston Martin DB6, 1965 to 1970 (Only models with optional air conditioning)
Finish: Polished Aluminium
Part Number: SER2182563
Replaces Aston Martin Part Number: 081.633–>
Supplier: Serck Motorsport

Features

Complete hand-welded fabrication
Flared entry & exit tubes
Polished alloy finish
Tab locators

Specifications

50mm core thickness
530mm core width
411mm core height
16 fins per inch
Pressure tested to 15PSI

We pressure test this radiator to 15 PSI, then polish and cap before it leaves our factory to ensure you receive our best work.
Note: – Should this product state ‘backorder’ or ‘Out of stock’ above, please be aware that Serck Motorsport manufacture radiators to order with lead-times between 3 and 4 weeks. Please contact us if you need an express service, or wish to undertake a bespoke project. Customers often request additional brackets and/or one of our integral cooling fans.
