SERCK Performance Aluminium Radiator, Austin Healey Sprite “Frogeye / Bugeye”

Description

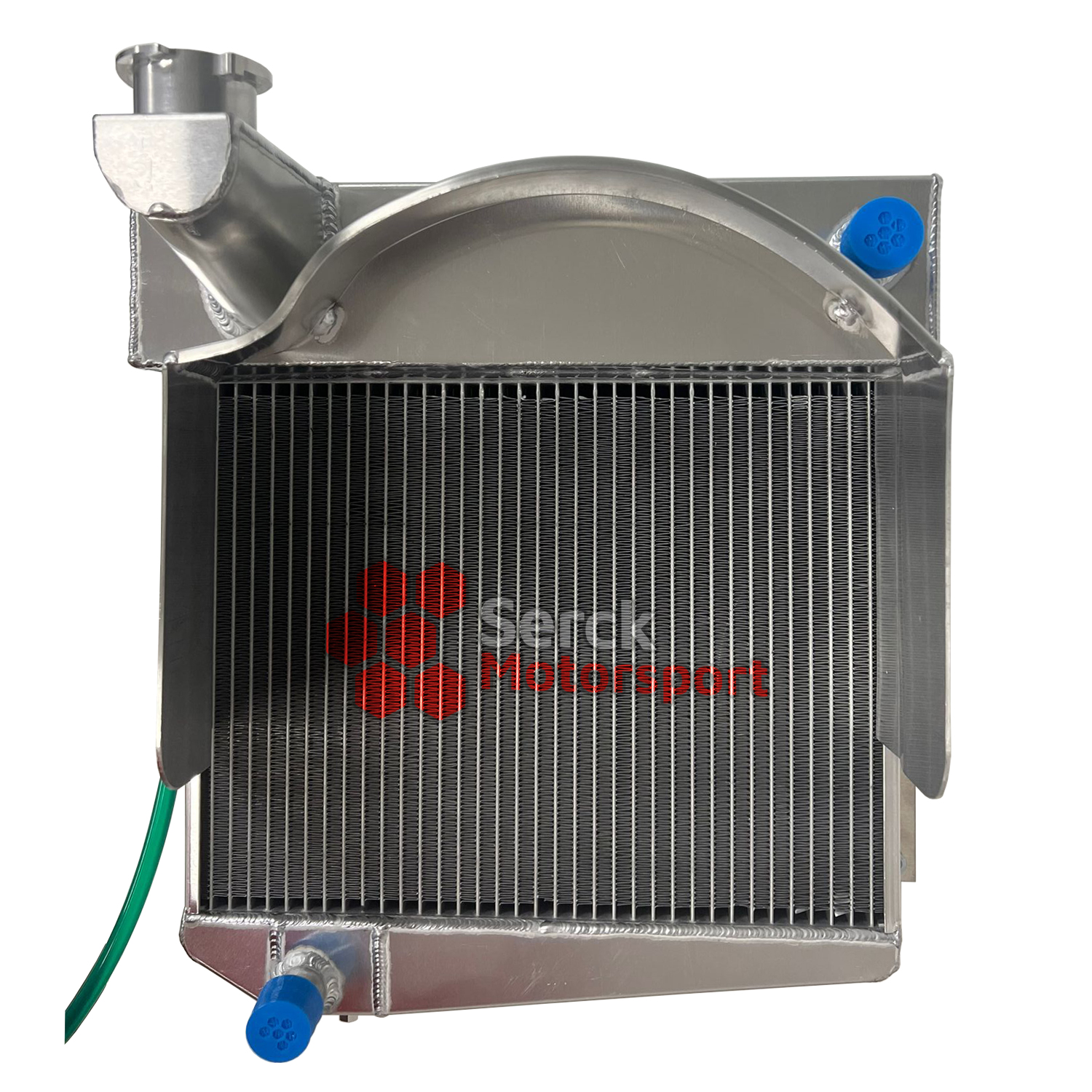

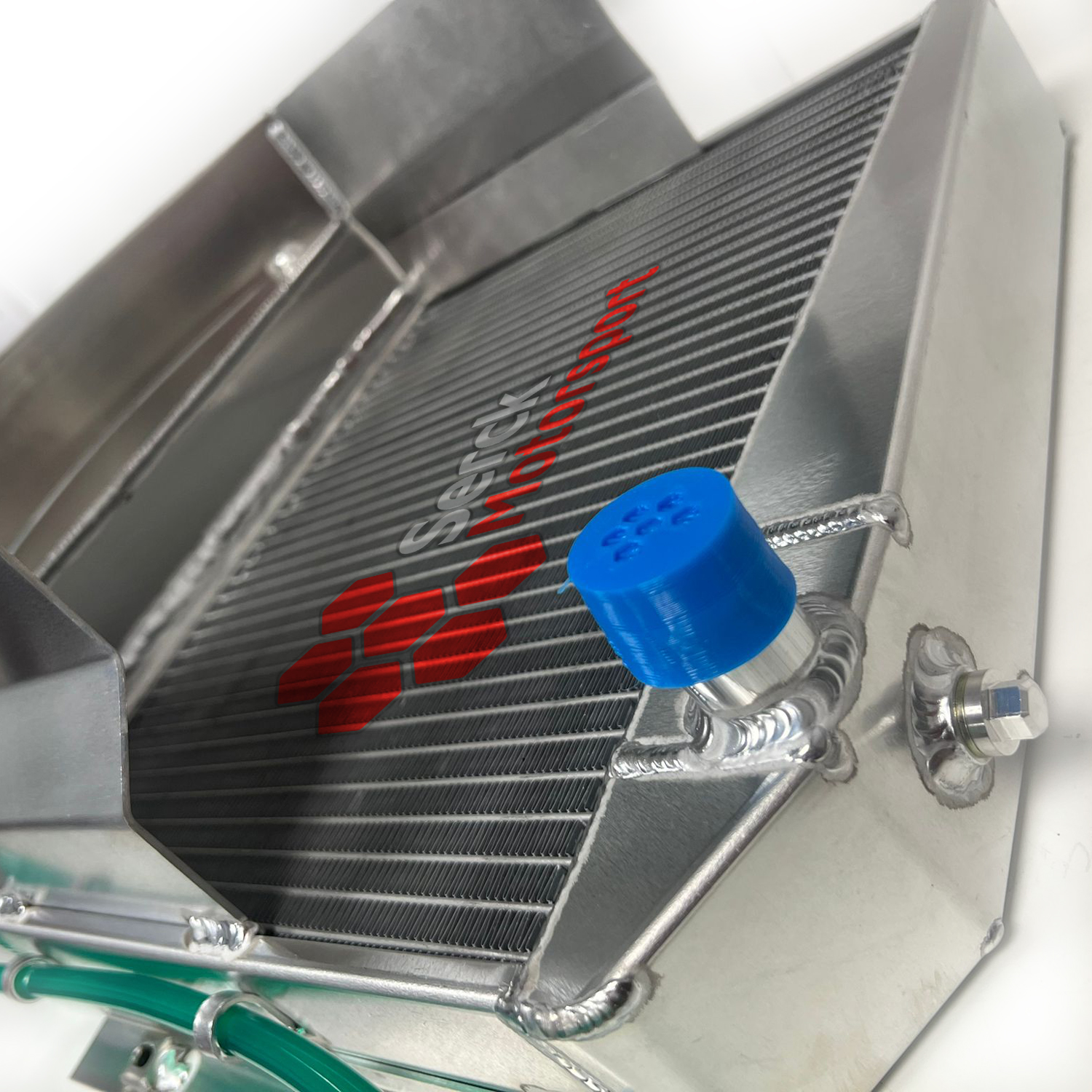

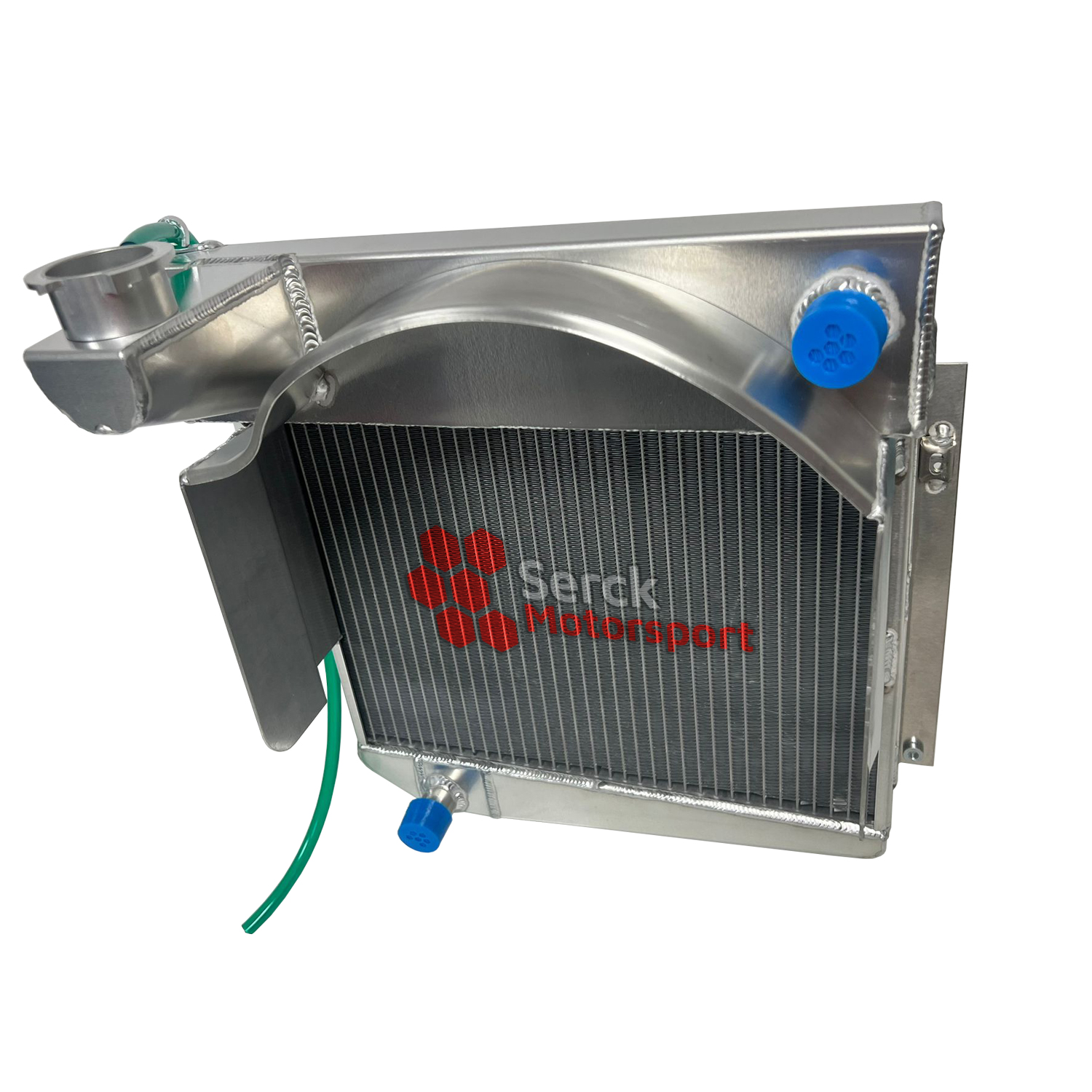

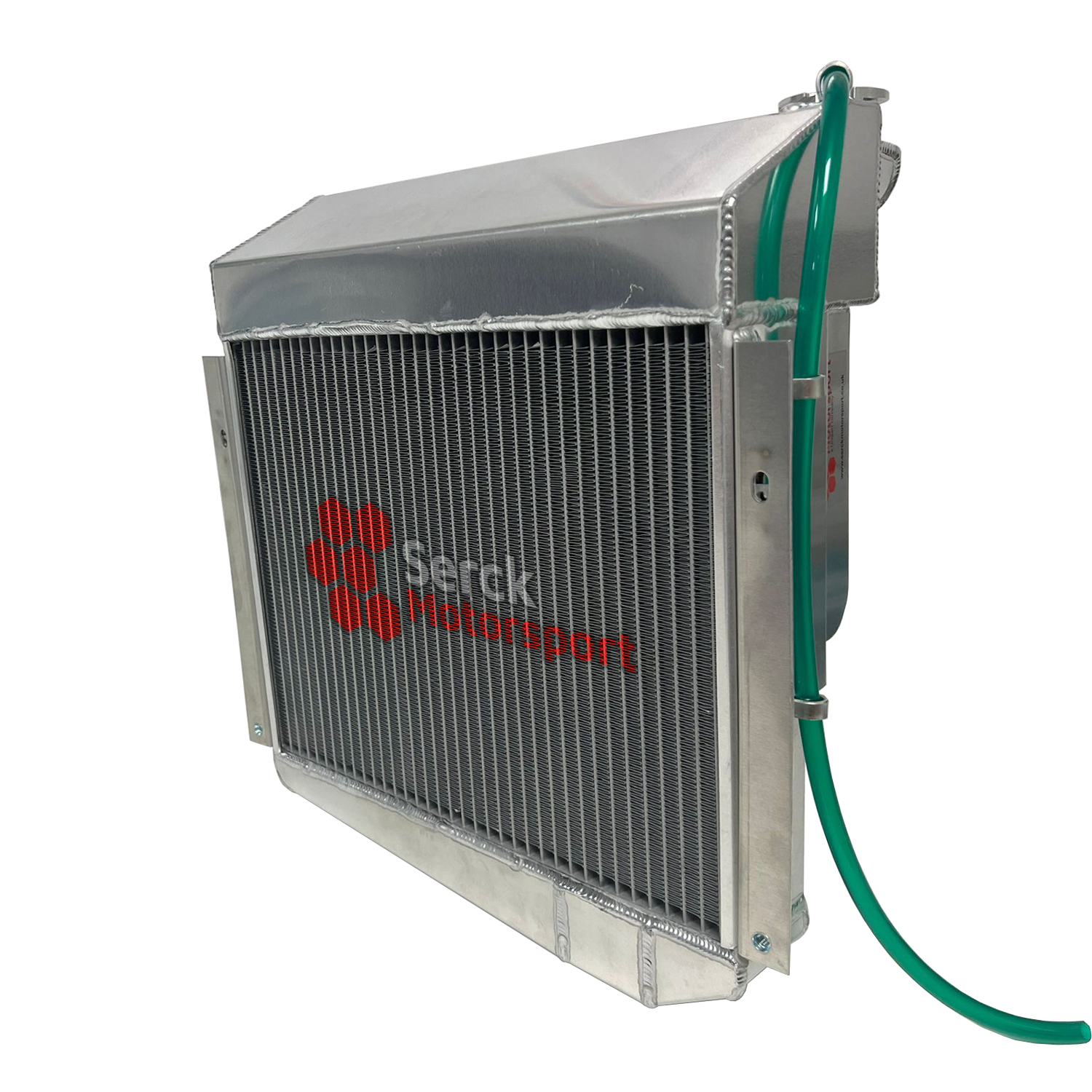

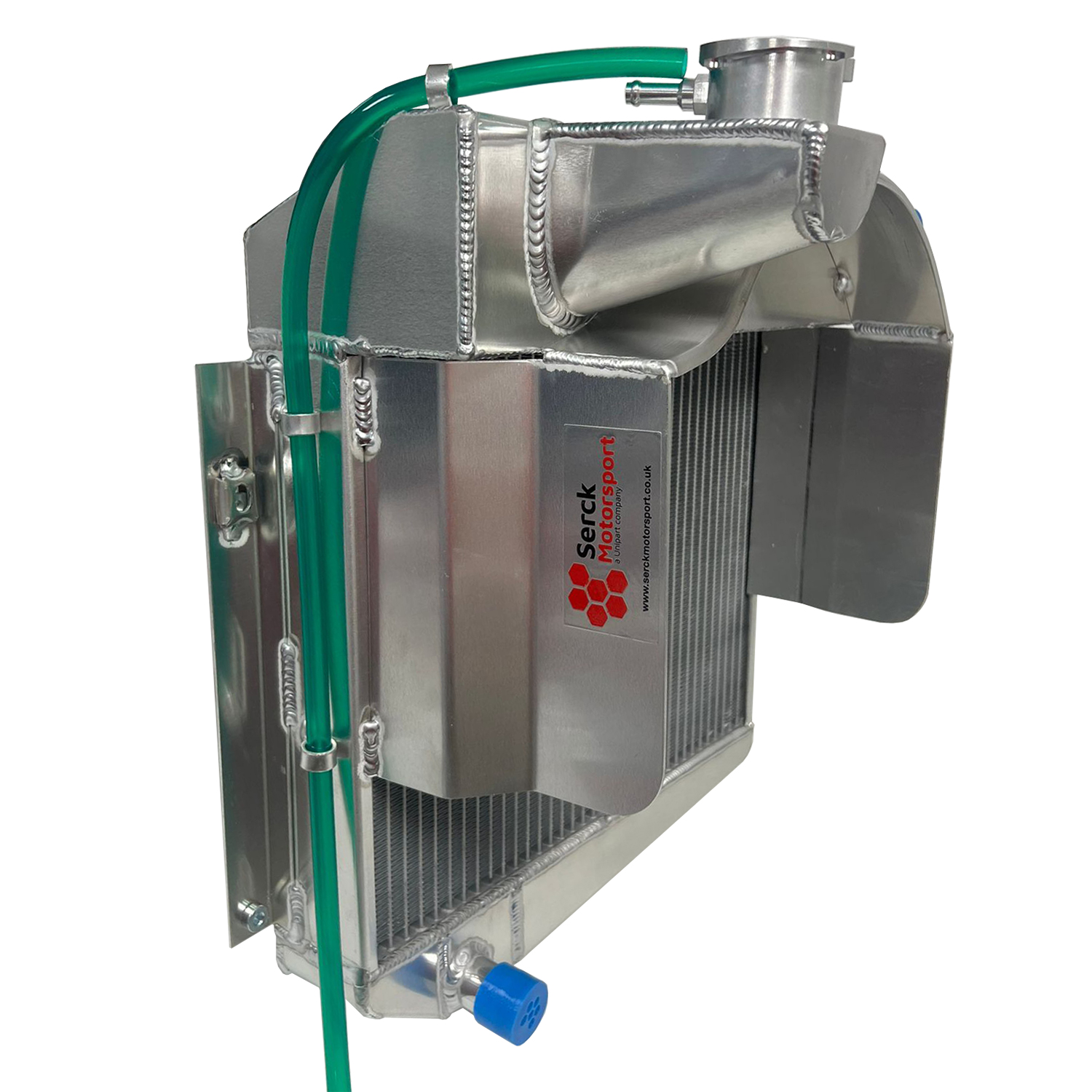

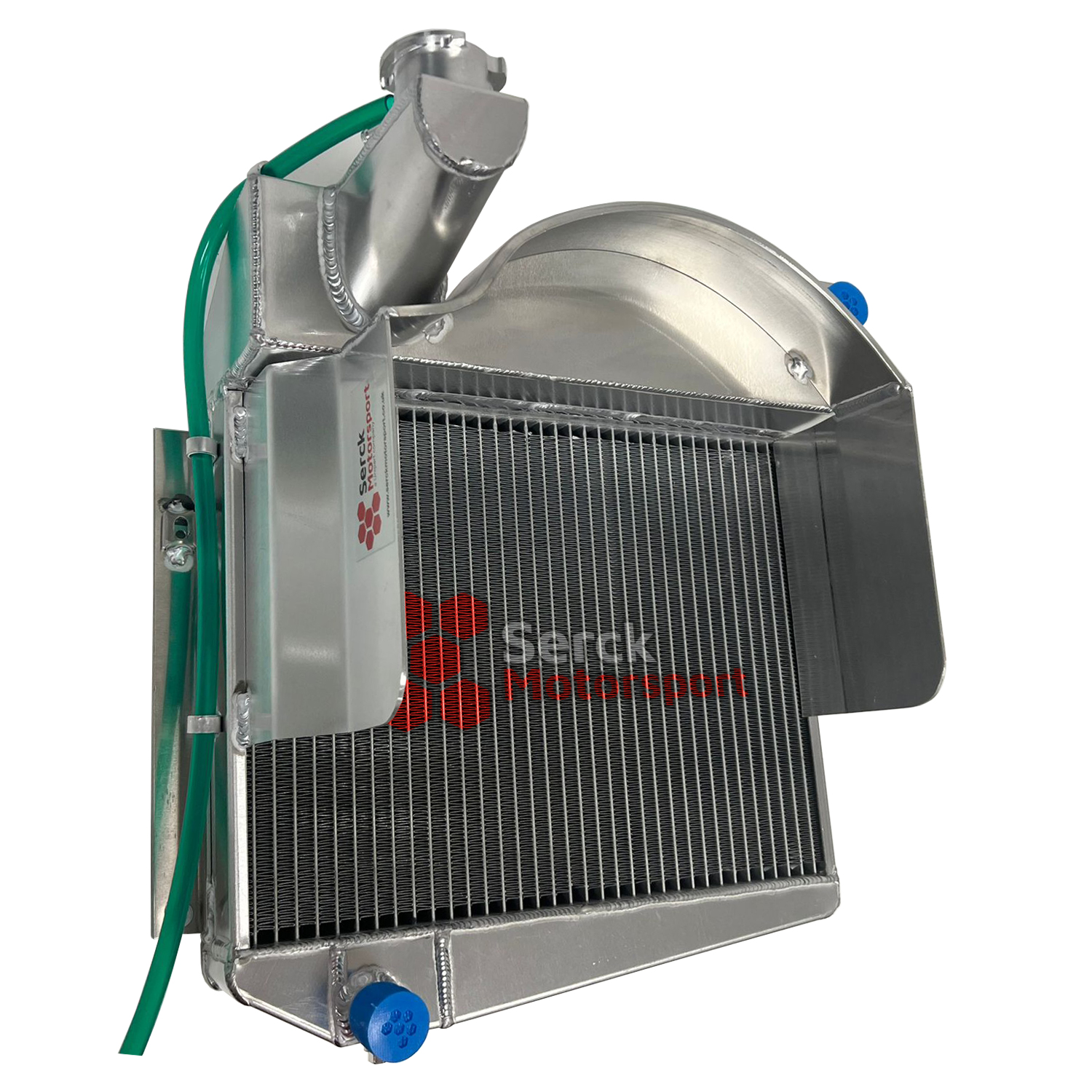

SERCK Performance Aluminium Radiator, Austin Healey Sprite “Frogeye / Bugeye”

SERCK Performance Aluminium Radiator, Austin Healey Sprite “Frogeye / Bugeye”

This is a performance radiator manufactured from a combination of aerospace and automotive grade aluminium, here in the UK by us at Serck Motorsport. It will only fit the Austin Healey Sprite (0.9L) from 1958. This offers significant weight improvement with improved flow rates, leading to enhanced performance and power over longer periods, making it suitable for road and racing use.
This radiator is a popular selection from our extensive range of classic coolers, developed as a direct replacement using the original pattern. It is hand crafted in-house to the highest standards and uses a Serck-specific original design to enhance flow and temperature dissipation rates via a 16 fins-per-inch core specification. It is highly efficient in performance and cooling rates due to its fine fin pitch. The gas flowed, flared ports, tank design and core specifications make this one of our characteristic coolers available for Austin Healey models.

Overview

Description: Aluminium Performance Radiator
Fitment: Austin Healey Sprite MKI “Frogeye / Bugeye”, 1958 to 1961
Finish: Polished Aluminium
Part Number: SER803844
Supplier: Serck Motorsport

Features

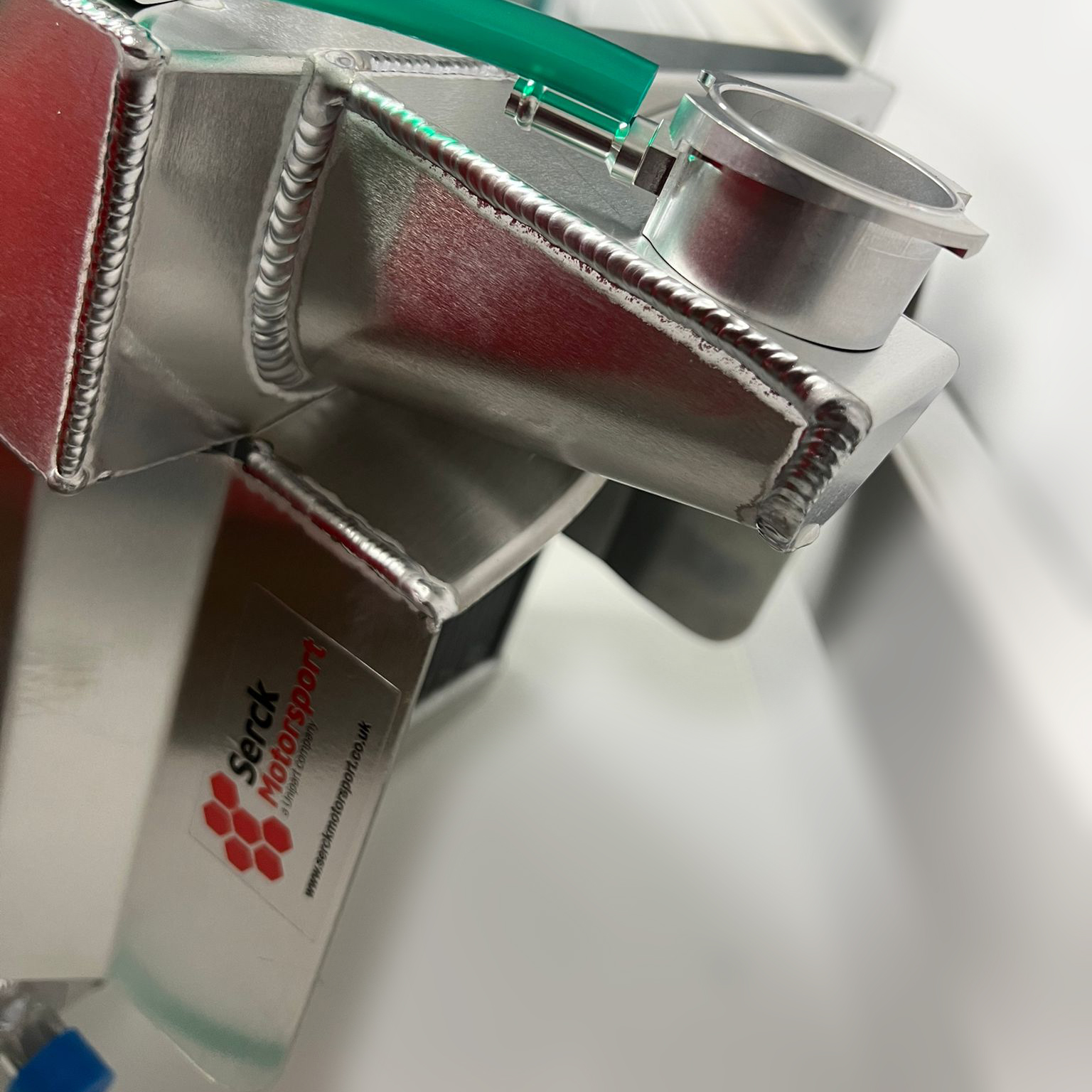

Complete hand-welded fabrication
Flared entry & exit tubes
Polished alloy finish
Tab locators

Specifications

50mm core thickness
295mm core width
370mm core height
16 fins per inch
Pressure tested to 15PSI

We pressure test this radiator to 15 PSI, then polish and cap before it leaves our factory to ensure you receive our best work.
Note: – Should this product not state ‘In Stock’ above, please be aware that Serck Motorsport manufacture radiators to order with lead-times between 3 and 4 weeks. Please contact us if you need an express service, or wish to undertake a bespoke project. Customers often request additional brackets and/or one of our integral cooling fans.
