Description
Part Number: AF49-4049

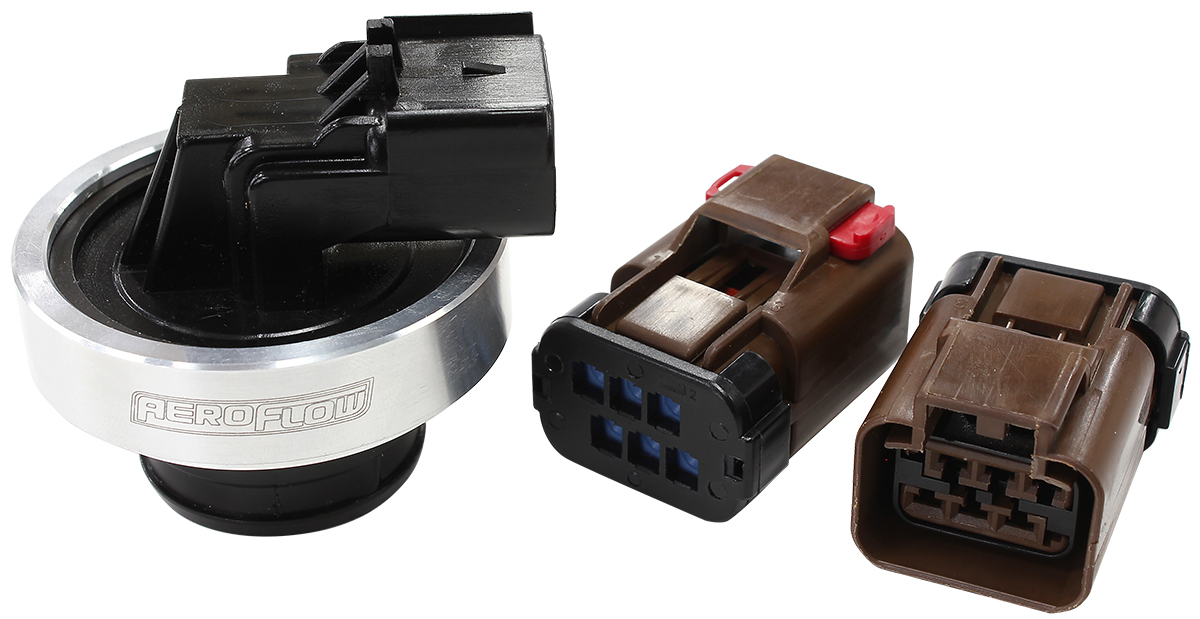

Aeroflow 6-Pin Electrical Bulkhead Connector Kit
Safely pass high-current fuel pump wiring through fuel cell bulkheads and motorsport tanks without fuel or fume leakage.
Key Features
- ☑ 6-pin high-current connector rated up to 30 Amps per pin for demanding fuel pump applications
- ☑ Precision weld-in aluminium bung for robust, leak-free fuel tank and bulkhead mounting
- ☑ Premium Viton O-ring seal offers superior resistance to pump gas, race fuel, and E85
- ☑ Snap-ring retaining mechanism ensures secure connector locking under extreme motorsport vibration
- ☑ Compatible with 14-10 AWG wire sizes with 12 crimp terminals included for simple installation
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Part Number | AF49-4049 |
| Pin Count | 6-Pin |
| Current Rating | 30 Amps per pin |
| Wire Gauge Range | 14-10 AWG |
| Bung Material | Aluminium (Weld-In) |
| Seal Material | Viton O-Ring |
| Bung Outer Diameter | 2.4″ (56mm) |
| Minimum Panel Hole | 1.9″ (49.9mm) |
What’s Included in the Box
- 1x Aeroflow 6-Pin Electrical Bulkhead Connector Body
- 1x Weld-In Aluminium Mounting Bung
- 1x Fuel-Resistant Viton O-Ring Seal
- 1x Retaining Snap Ring
- 1x Internal Connector Plug & 1x External Connector Plug
- 12x Wiring Crimp Terminals (14-10 AWG)
Engineered for professional motorsport fuel cell builds, the Aeroflow AF49-4049 electrical bulkhead connector provides a reliable, secure passthrough for high-amperage fuel pump wiring. At JP Racing, we supply genuine Aeroflow Performance products with complete UK technical support and fast UK dispatch.
