Description
Part Number: LMA010

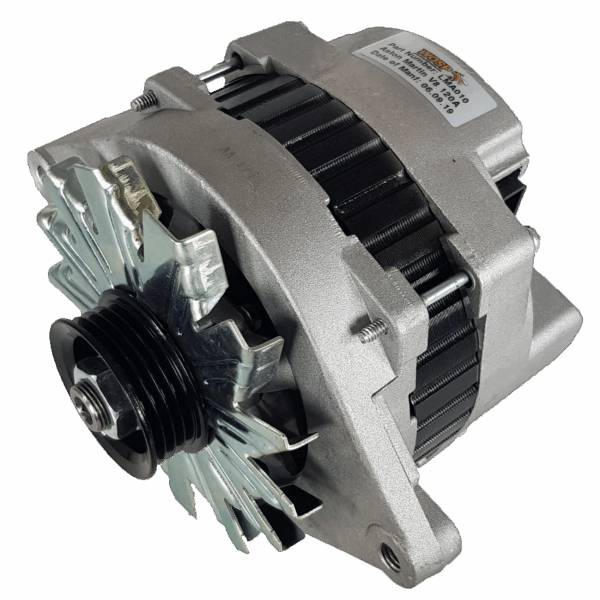

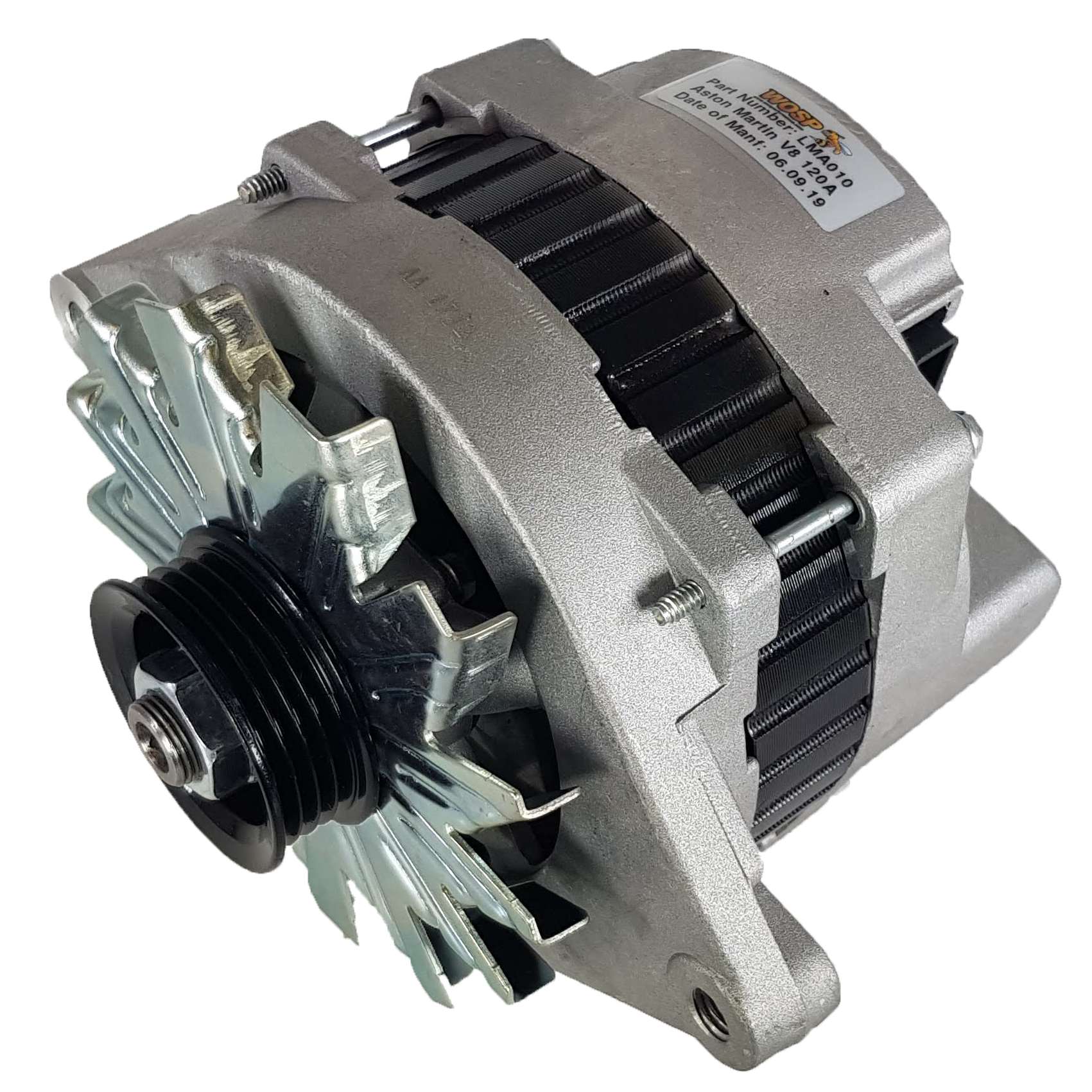

WOSP Aston Martin V8 ‘Efi’ 120A High Output Alternator
Engineered as a high-output, OE-quality direct replacement for the Aston Martin V8 EFI engine, providing reliable 120-Amp charging performance in a robust cast unit.
Key Features & Performance Highlights
- ☑ High-output 120-Amp charging capacity for modern ignition and ECU electronics
- ☑ Direct fit replacement designed specifically for Aston Martin V8 EFI models
- ☑ Heavy-duty cast housing construction weighing 6.4 kg (14.11 lbs)
- ☑ Pre-fitted with LMP214-17 multi-groove pulley for seamless belt alignment
- ☑ Multi-terminal connection configuration (B+, P, L, F, S) for complete vehicle integration
- ☑ 180° 2-lug mounting pattern for secure, robust installation
| Specification | Details |
|---|---|
| Brand | WOSP Performance |
| Part Number | LMA010 |
| Output Current | 120 Amp |
| Operating Voltage | 12V (-VE Negative Polarity) |
| Mounting Style | 2 Lugs (180° Indexing) |
| Housing Type | Cast Housing |
| Weight | 6.4 kg / 14.11 lbs |
| Terminal Connections | B+ / P / L / F / S |
| B+ Position | Fixed |
| Fitted Pulley | LMP214-17 (Multi-Groove) |
| Vehicle Application | Aston Martin V8 ‘Efi’ |
What’s Included in the Box
- 1x WOSP LMA010 Aston Martin V8 EFI 120A Alternator
- 1x Pre-installed LMP214-17 Multi-Groove Pulley
- 1x Wiring & Terminal Connection Sheet
Built to uncompromising OE standards by WOSP Performance, the LMA010 alternator offers a ultimate ‘fit and forget’ replacement solution for road and motorsport applications. Designed to resolve charging deficiencies and deliver rock-solid voltage under high electrical loads, this unit comes fully supported by JP Racing with fast UK shipping and technical assistance.
