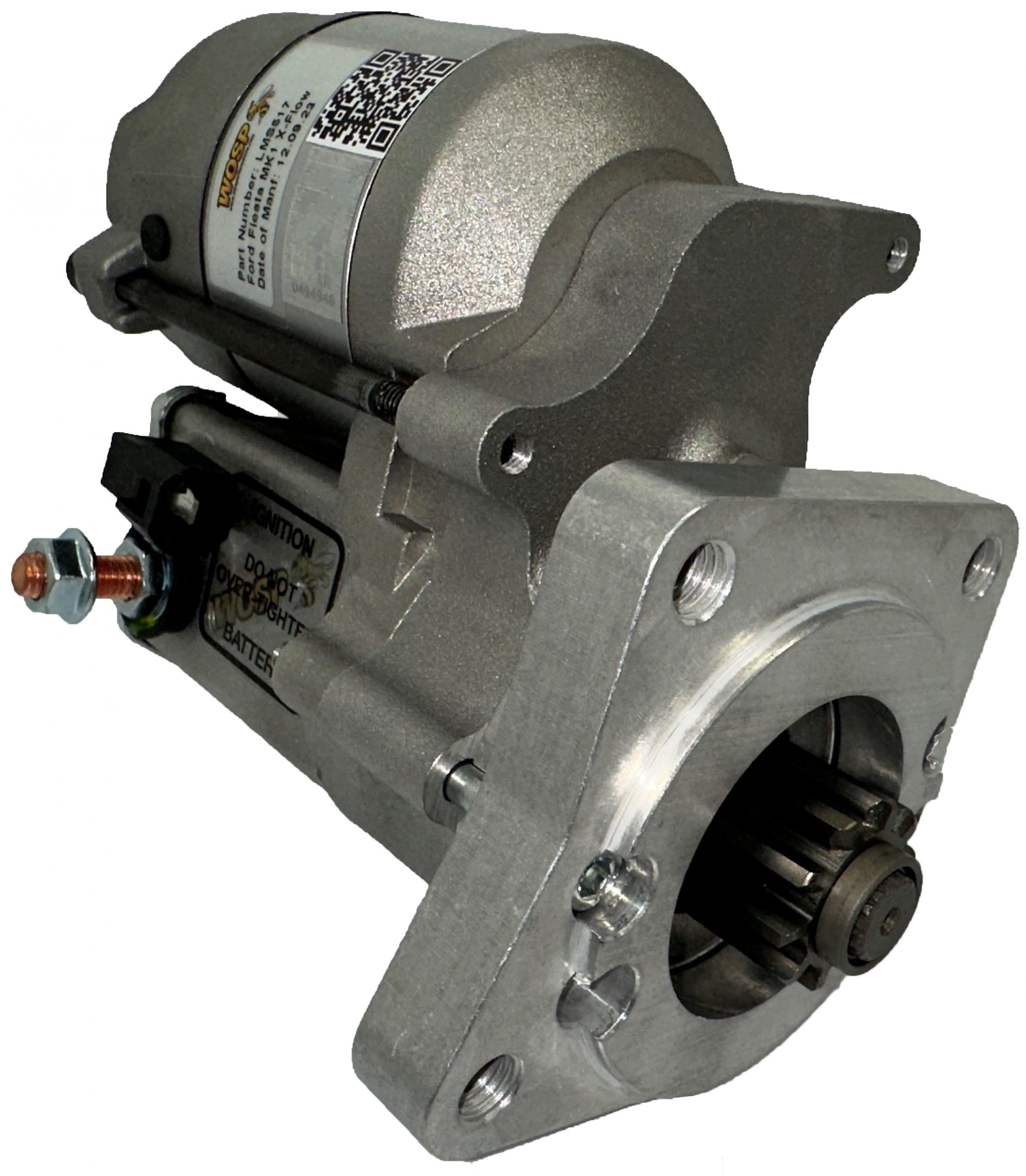

WOSP High Torque Starter Motor, Ford Fiesta MK1 X-Flow XR2 950 1100 1300

Description

WOSP High Torque Starter Motor, Ford Fiesta MK1 X-Flow XR2 950 1100 1300

Designed and manufactured in house using only OE platforms, these lightweight, gear reduction and high torque starter motors are ideal for use in hostile or bespoke environments and are warranted for 12 months and in most cases offer twice the power and half the current draw and weight to an original unit. Unless specifically intended for just one application all our units can be rotated 360° on their own axis giving the unit an infinite number of mounting positions to clear any obstruction.

Overview

• Description: WOSP High Torque Starter Motor, Ford Fiesta MK1 X-Flow XR2 950 1100 1300
• Supplier: WOSP
• Part Number: LMS517
• Type: Denso OSGR *r
• Weight: 3.7 KG / 8.15 LBS
• Voltage: 12V
• Polarity: Both
• Power: 1.4kW
• Rotation: CW
• Pinion Teeth: 10
• Pinion ⌀: 29mm

Fitments

• Ford Fiesta MK1 X-Flow XR2 (110 tooth ring gear)
• Ford Fiesta 950 & 1100 (RHD) ’76-’80
• Ford Fiesta 1300 (RHD) ’77-’83

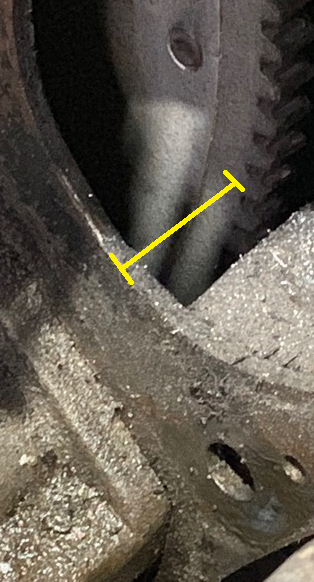

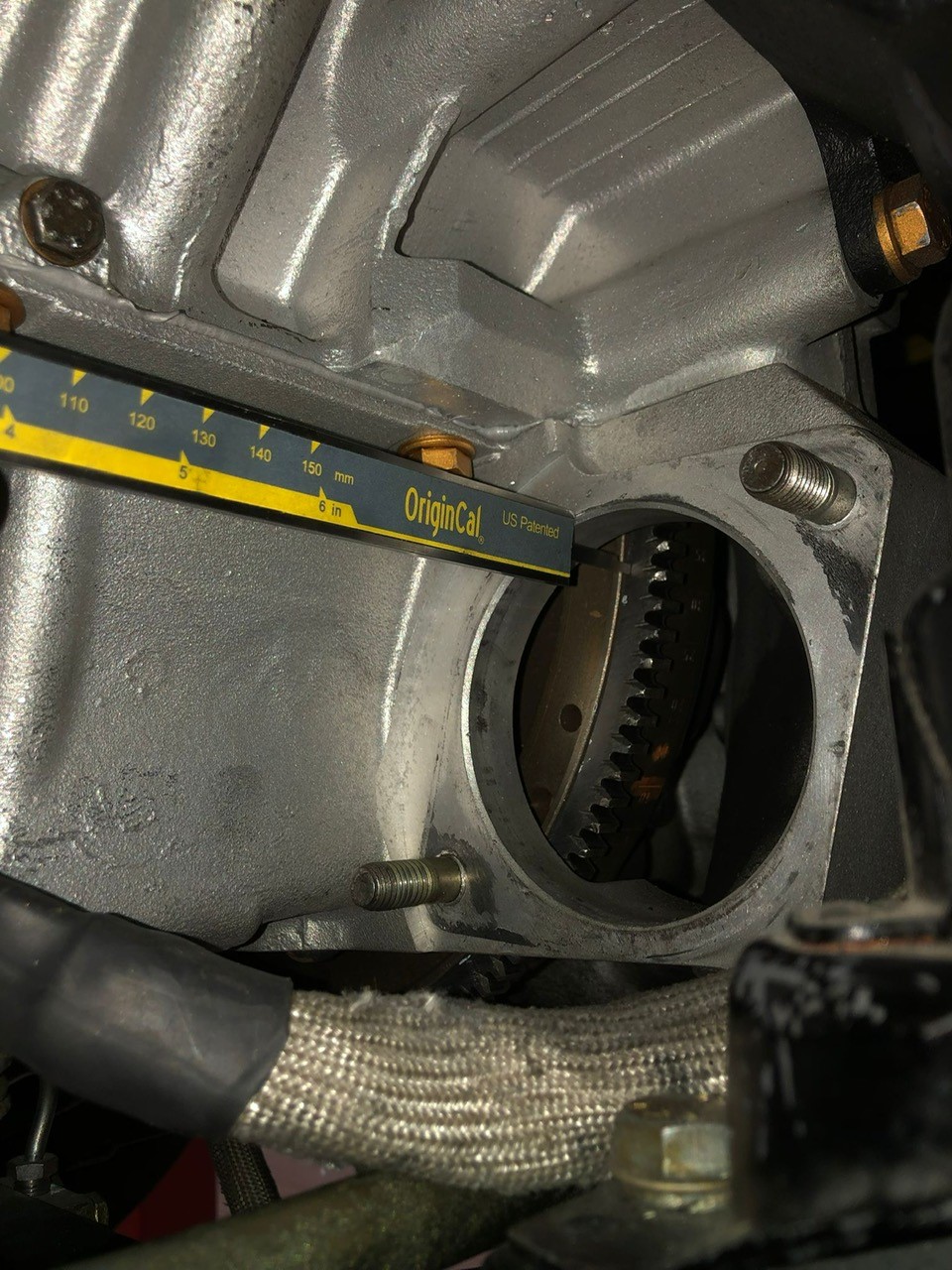

• Important Note: This starter motor has a choice of bellhousing-ring gear measurements, either 17mm or 23mm, please confirm yours at point of order.

Documents

• Installation Instructions

WOSPerformance have been manufacturing and supplying bespoke starting and charging systems via a dealer network for decades. They are a family-run company which refuses to be beaten on service and quality, whilst pushing the boundaries of what is possible.

Widely regarded as the world leader with over 1500 starter applications and alternators to suit almost any possible requirement, all units are built to the highest standards using only original specification parts.
