Description
Part Number: LMS569

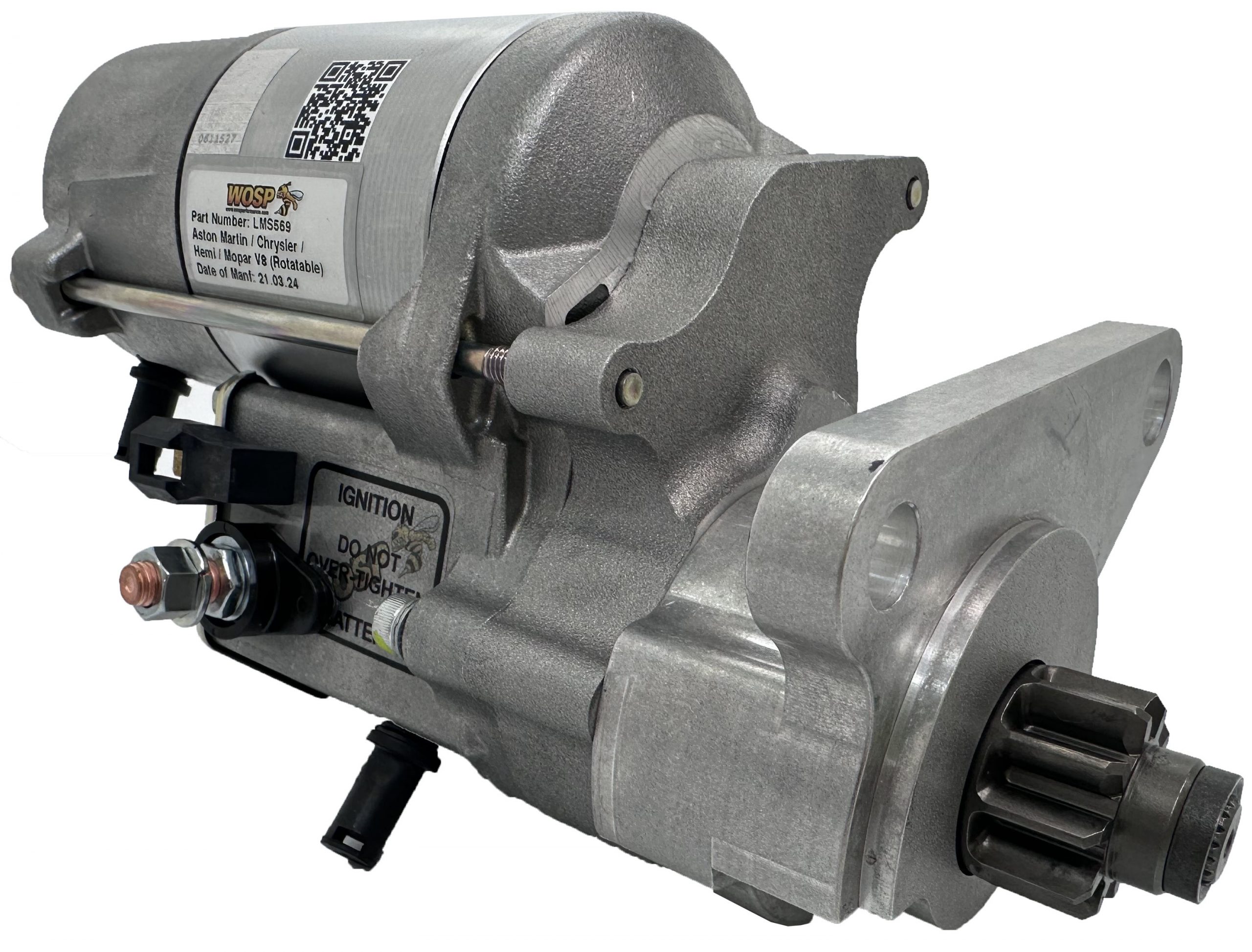

WOSP Super-Duty 2.0kW High Torque Rotatable Starter Motor
Engineered specifically for high-compression classic Aston Martin V8, Chrysler, Hemi, and Mopar V8 applications, providing maximum cranking power in tight motorsport engine bays.
Key Features
- ☑ High-output 2.0kW Denso OSGR offset gear reduction motor for maximum cranking torque.
- ☑ 360-degree rotatable index plate provides unlimited mounting positions to clear headers and chassis obstruction.
- ☑ Delivers up to twice the starting speed with half the battery current draw compared to original units.
- ☑ Dual polarity setup suitable for both negative and positive earth vehicles.
- ☑ Heavy-duty 10-tooth, 32mm pinion gear designed for extreme thermal environment durability.
Technical Specifications
| Manufacturer | WOSP Performance |
|---|---|
| Part Number | LMS569 |
| Motor Type | Denso OSGR (Offset Gear Reduction) |
| Power Output | 2.0 kW |
| Voltage | 12V |
| Polarity | Both (Negative & Positive Earth) |
| Rotation & Pinion | Clockwise (CW) / 10-Tooth (32mm Diameter) |
| Weight | 4.1 kg (9.03 lbs) approx. |
What’s Included in the Box
- 1x WOSP LMS569 2.0kW Super-Duty High Torque Starter Motor
- 1x Pre-fitted 360-Degree Indexable Billet Mounting Plate
- 1x Electrical Terminal Connection Hardware Kit
Handcrafted in the UK using 100% brand-new OE Denso components, WOSP starter motors are built to withstand heat soak and extreme motorsport conditions. At JP Racing, we deliver genuine WOSP rotating electrical units backed by full UK technical assistance and fast dispatch.
