AEROFLOW billet sandwich adapter -8ORB ports 2 x 1/8″

Description

AEROFLOW billet sandwich adapter -8ORB ports 2 x 1/8″

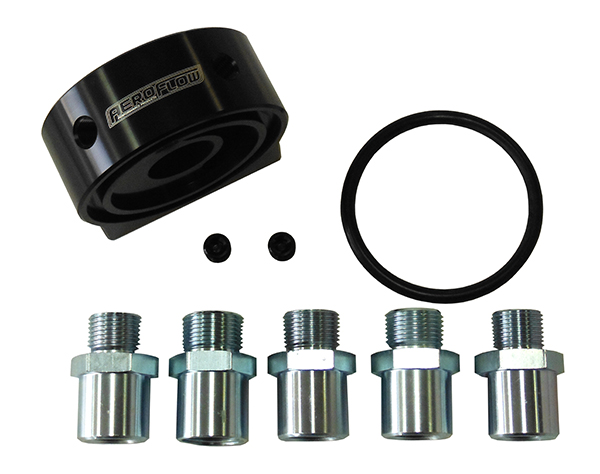

AEROFLOW billet sandwich adapter -8ORB ports 2 x 1/8″ Billet Oil Cooler Sandwich Adapter Universal fitment, with 2 x -8ORB ports & 2 x 1/8″ NPT ports, Black anodised finishThe Aeroflow Performance universal billet oil cooler and sender adapter is designed to sit in-between the standard oil filter and the vehicle engine block. It is required for most engine oil cooler installations to provide oil flow to the external oil cooler. It also allows an adaptation of a gauge sender or sensors to be installed at the engine. In most cases the factory OE oil filter will work with this sandwich adaptor. It is designed as a universal fitment item and may or may not fit your application.The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. This features two labelled inlet and outlet -8AN ORB ports provided for plumbing the engine oil to and from the sandwich adapter. These Ports must be used. Two 1/8″ NPT ports and plugs re provided for auxiliary sensors.The oil filter landing will take oil filter O-ring sizes from inner diameter of 65mm (2-9/16″) to outer diameter 71mm (2-13/16″). In some applications when fitting this sandwich adaptor, it may interfere with the frame or exhaust systems and a new shorter depth filter may need to be used for ground clearance.This includes the following thread inserts that fit most makes and models (Holden, Ford, Nissan, Toyota, Subaru, Honda & BMW) that are the same thread on both male and female sides:3/4″-16 thread insert13/16″-16 thread insertM18 x 1.5mm thread insertM20 x 1.5mm thread insertM22 x 1.5mm thread insert Overview Description: AEROFLOW billet sandwich adapter -8ORB ports 2 x 1/8″ Part Number: AF64-2108 Supplier: Aeroflow Features/Specs Since 2010, Aeroflow Performance Products has grown to design and manufacture close to 11,000 exceptional quality products. Fittings and hoses, fuel system components, air and oil filters, oil systems, silicone hoses, fabricated tanks, alternators, workshop tools and much more. As a company, they have tried to lead the way for the Performance enthusiast. –> Aeroflow Website
