Description
Part Number: AF2296-1017

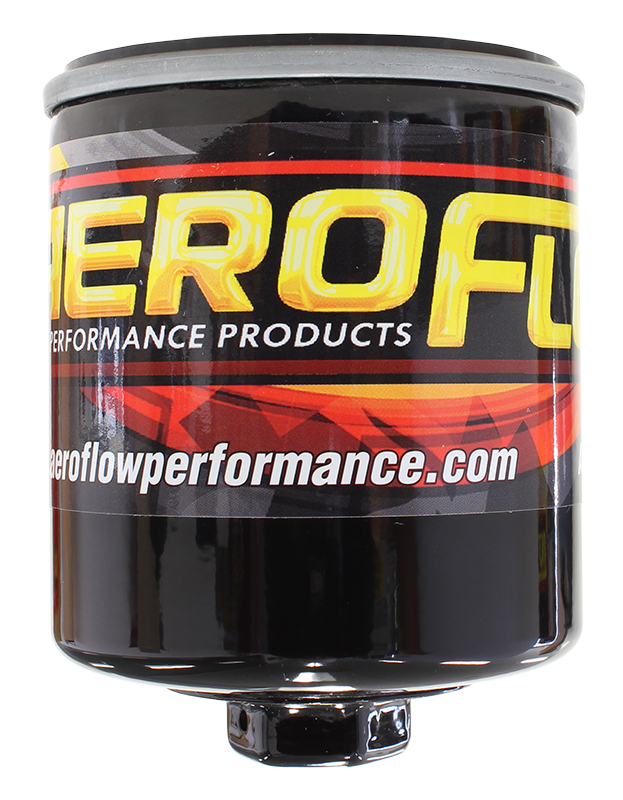

Aeroflow High Performance Oil Filter – M22 x 1.5 Thread (Holden / GM LS2 LS3 V8)
Engineered for extreme racing and high-performance street applications, the Aeroflow AF2296-1017 spin-on oil filter provides superior filtration and maximum flow rates under demanding motorsport conditions.
Key Features & Performance Benefits
- ☑ High-Flow Synthetic Blend Media: Premium pleated synthetic blend media delivers exceptional filtration efficiency with minimal pressure drop at high engine RPM.
- ☑ Heavy-Duty Construction: Features an extra-thick backing plate and reinforced canister to withstand intense oil pressure surges in track and race applications.
- ☑ Integrated Removal Hex Nut: Equipped with a 15/16″ (24mm) hex nut on the top of the canister for easy, clean removal using a standard socket or wrench.
- ☑ Advanced Internal Valving: Built-in anti-drain back valve prevents dry starts, while an integrated 11-17 PSI relief bypass valve protects engine internals.
- ☑ Fuel & Chemical Compatibility: Premium Buna-N rubber sealing gasket ensures a leak-free seal and full compatibility with synthetic engine oils and race fuels.
Technical Specifications
| Brand | AeroFlow |
|---|---|
| Part Number | AF2296-1017 |
| Thread Specification | M22 x 1.5mm |
| Filter Media Type | High-Flow Pleated Synthetic Blend |
| Filter Height | 3.75″ (95.25mm) |
| Outside Housing Diameter | 3.00″ (76.00mm) |
| O-Ring Inside / Outside Diameter | 2.40″ (61.00mm) / 2.83″ (72.00mm) |
| Relief Valve Pressure | 11 – 17 PSI Bypass Valve |
| Anti-Drain Back Valve | Yes |
| Removal Nut Hex Size | 15/16″ (24mm) |
| Ryco Cross-Reference | Z663 |
What’s Included in the Box
- 1 x Aeroflow AF2296-1017 High Performance Spin-On Oil Filter
- 1 x Pre-installed Nitrile Rubber O-Ring Gasket
Aeroflow Performance products are built to withstand the rigours of competitive track driving and high-power engine setups. When sourcing your genuine Aeroflow hardware from JP Racing, you benefit from dedicated UK technical expertise, guaranteed authentic components, and fast domestic shipping.
