Description
Part Number: Tue Feb 01 7566 00:00:00 GMT+0000 (Greenwich Mean Time)

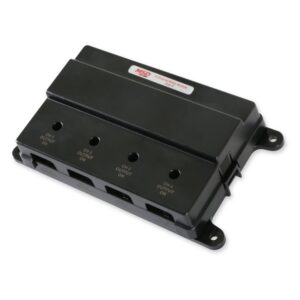

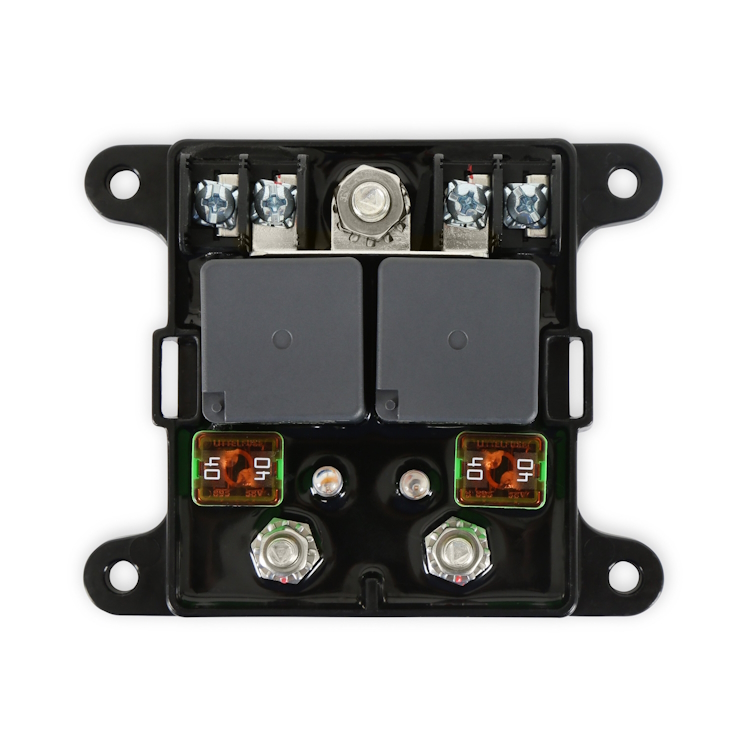

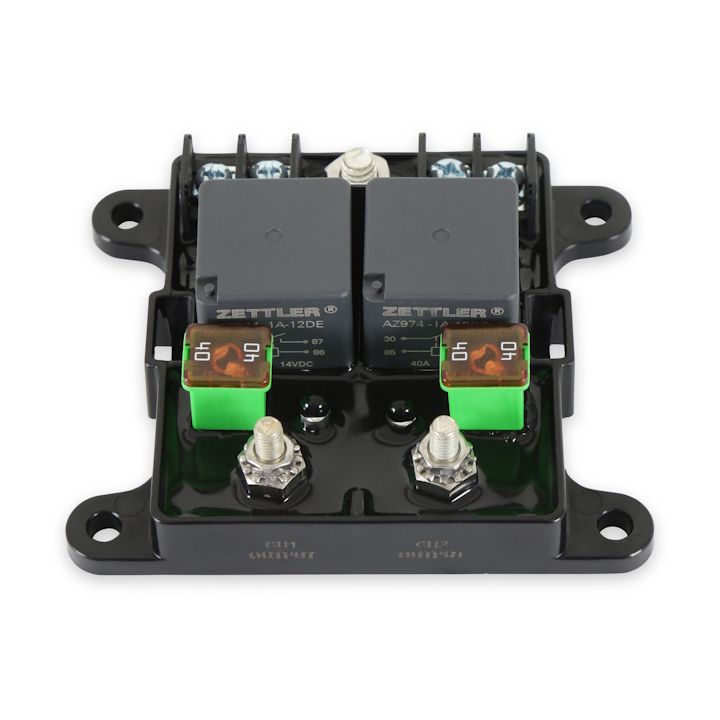

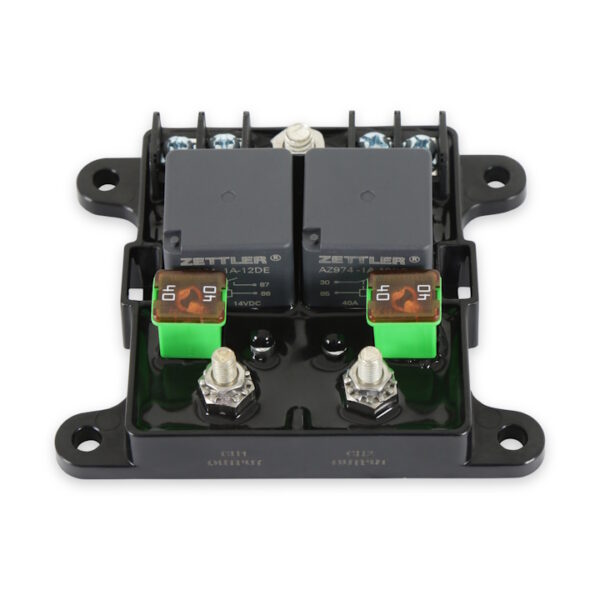

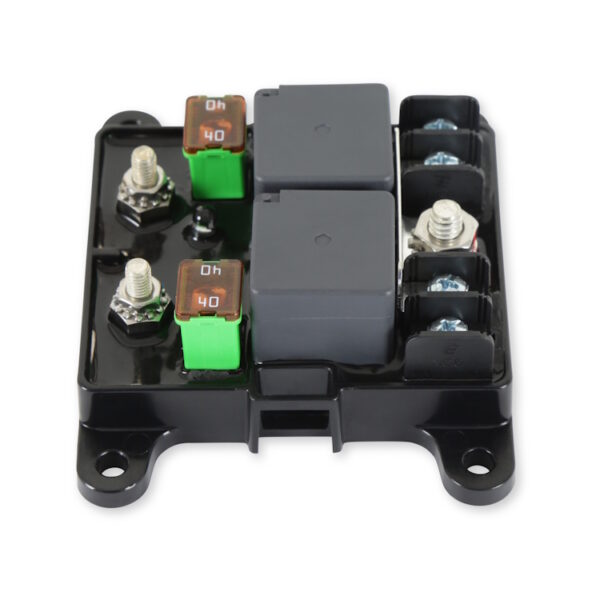

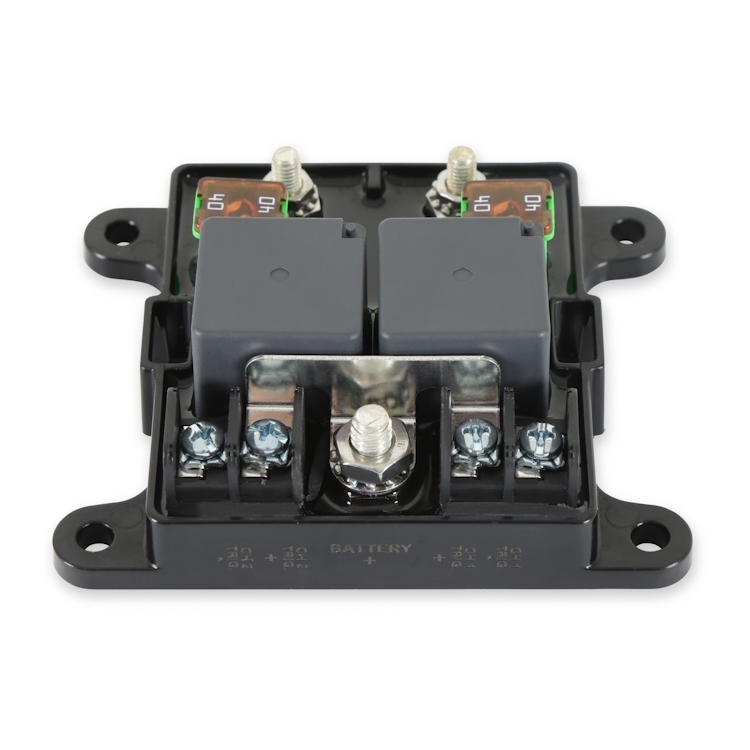

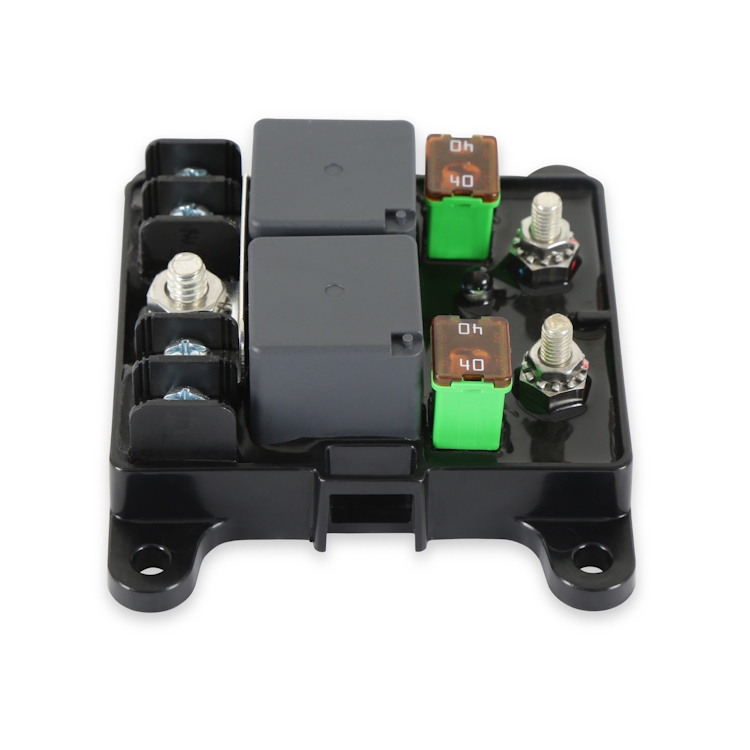

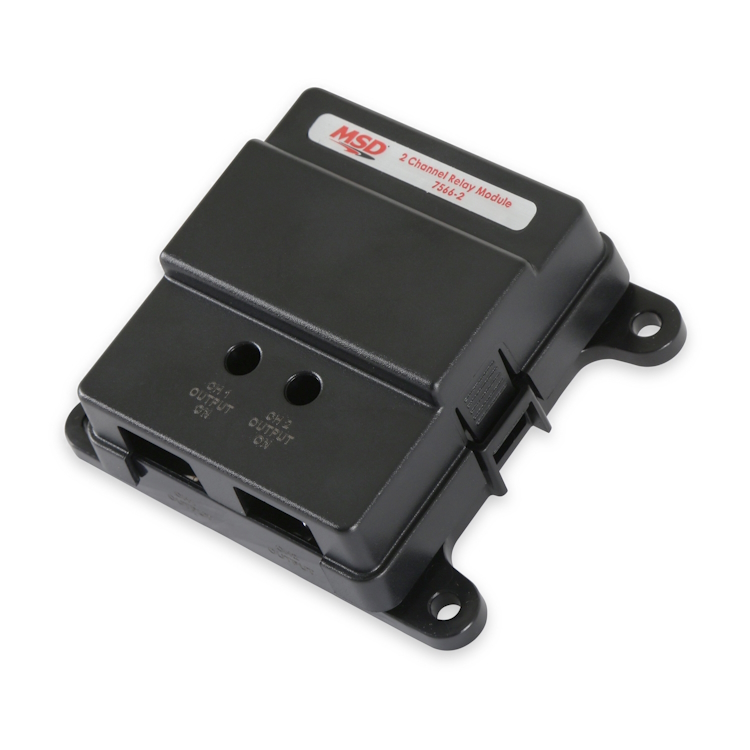

MSD Automotive Relay Module
Heavy-duty 40A electrical power distribution module engineered for high-demand automotive electrical systems, high-flow fuel pumps, and electric cooling fans.
Key Features & Benefits
- ☑ High Power Output: Independent 40A rated outputs deliver clean, uninterrupted current to high-draw pumps and electric fans.
- ☑ Wide Operating Range: Operates reliably across a 7V to 20V supply voltage to fit a wide variety of motorsport applications.
- ☑ Configurable Triggering: Single-wire activation easily configured for Ground (-) input or 12V (+) input by adjusting the installed tie-bar.
- ☑ LED Diagnostics: Integrated status indicators show active triggering at a glance for effortless troubleshooting in the workshop or trackside.

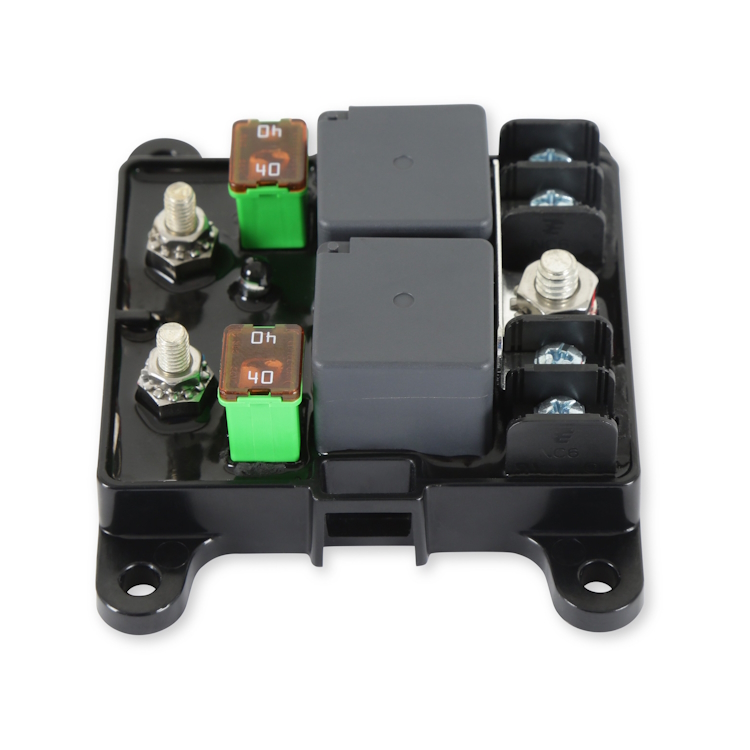

- ☑ Circuit Protection: Uses low-profile JCASE fuses to safeguard main power studs and triggers against shorts and contamination.
Technical Specifications
| Brand | MSD |
|---|---|
| Part Number | Tue Feb 01 7566 00:00:00 GMT+0000 (Greenwich Mean Time) |
| Supply Voltage | 7V to 20V DC |
| Output Current Rating | 40 Amps per channel |
| Fuse Type | Low-Profile JCASE (40A included) |
| Activation Trigger | Configurable Ground (-) or +12V (+) |
| Housing | Impact-Resistant Enclosure with Labeled Snap-On Lid |
What’s Included in the Box
- • 1 x MSD Electrical Relay Module
- • 1 x 40 Amp Low-Profile JCASE Fuse (pre-installed)
- • 1 x Labeled Snap-On Protective Lid
- • Complete Power Stud Hardware Kit
Engineered by MSD for ultimate reliability under demanding race conditions, this relay module simplifies vehicle wiring and guarantees stable power distribution. Order yours from JP Racing today for guaranteed genuine MSD components, rapid UK shipping, and expert technical support.
