Description
Part Number: 7566-4

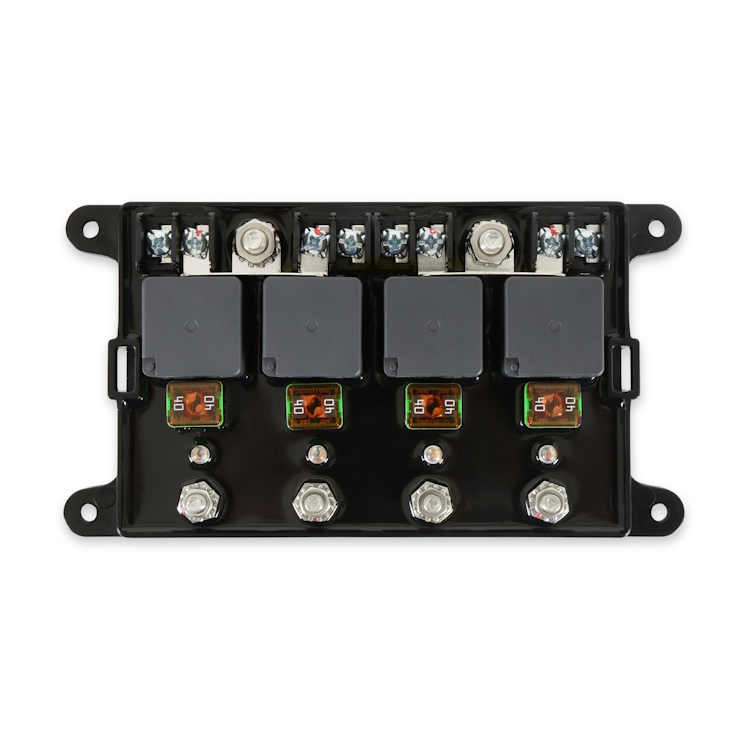

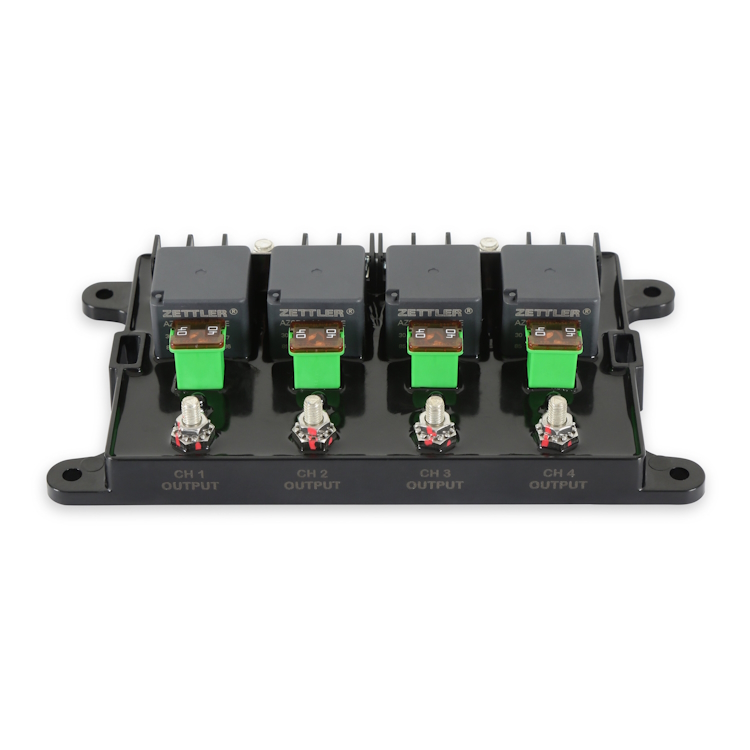

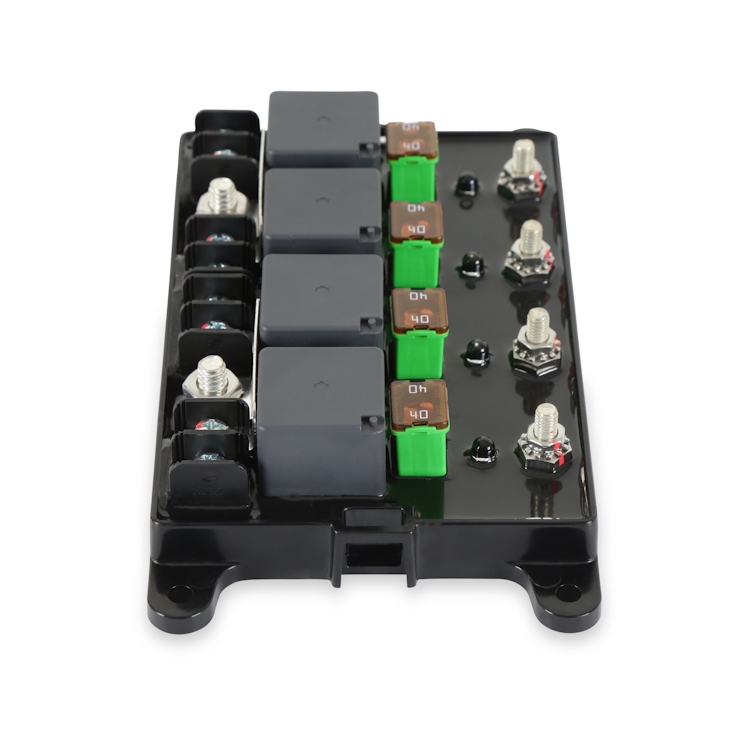

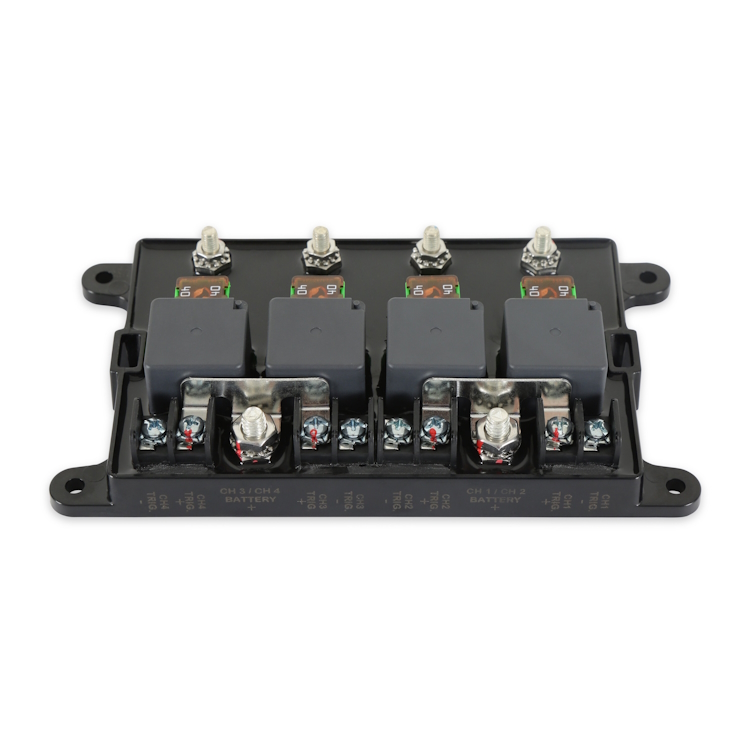

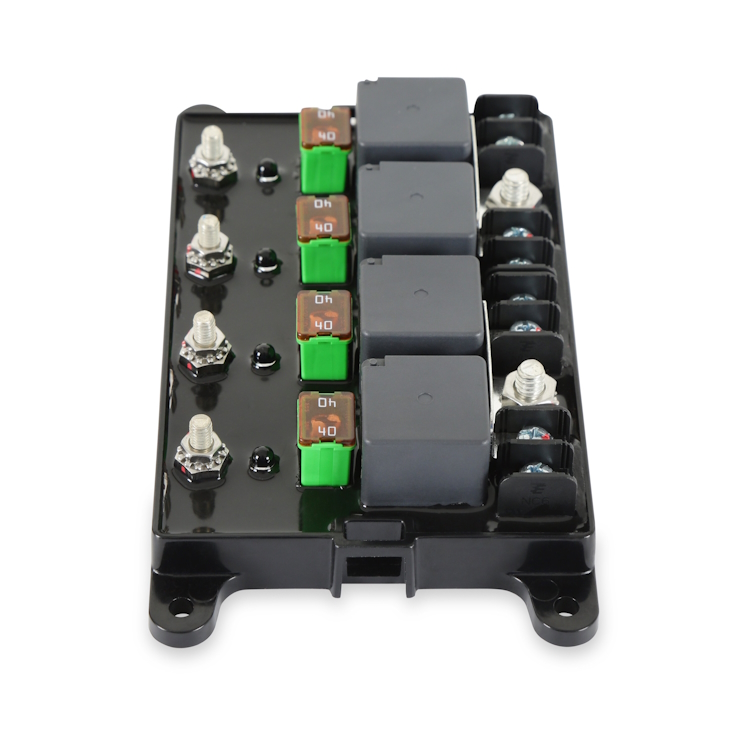

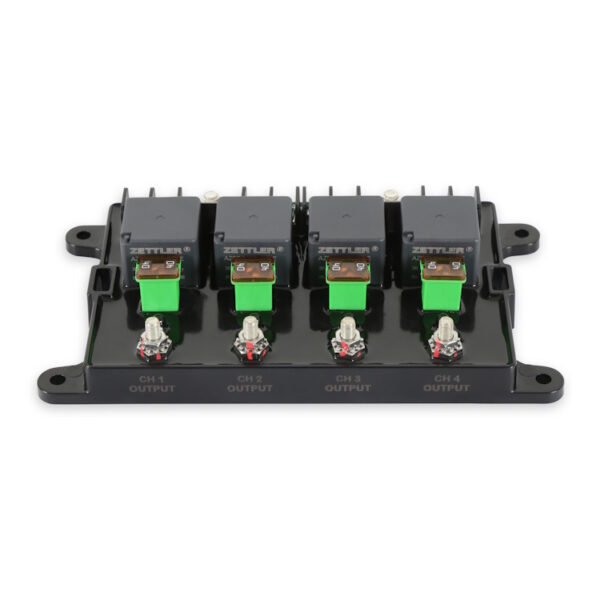

MSD Automotive Relay Module
Engineered to simplify vehicle wiring while delivering heavy-duty current handling, the MSD Relay Module provides an efficient and compact electrical solution for powering high-draw race and performance street accessories.
Key Features
- ☑ Independent 40 Amp continuous output for high-demand electronics
- ☑ Configurable single-wire activation for Ground (-) or +12V (+) trigger inputs
- ☑ Integrated LED status indicators show active channel operation at a glance
- ☑ Low-profile JCASE fuse protection against current spikes and shorts

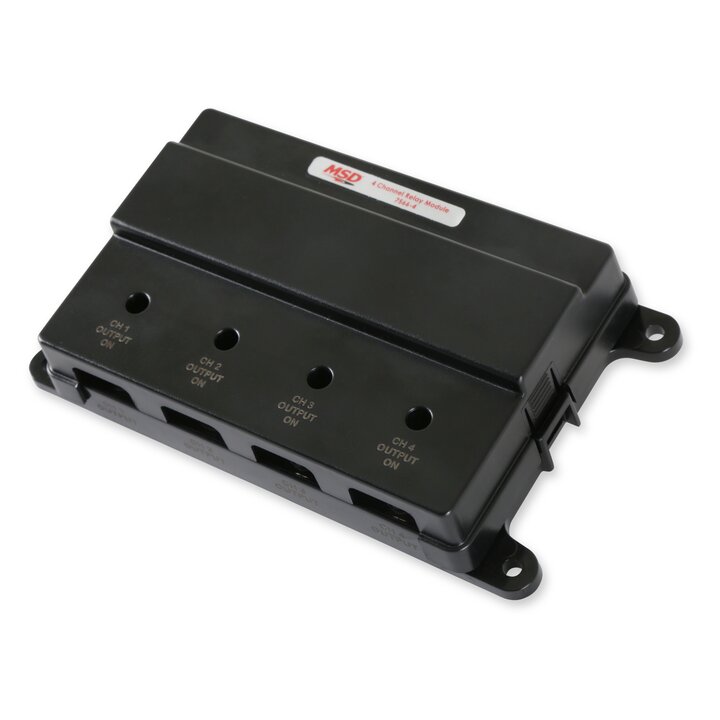

- ☑ Snap-on protective cover safeguards main power stud and signal triggers
Technical Specifications
| Brand | MSD |
|---|---|
| Manufacturer Part Number | Fri Apr 01 7566 00:00:00 GMT+0100 (British Summer Time) |
| Supply Voltage | 7V to 20V DC |
| Current Rating | 40 Amps continuous output |
| Fuse Rating | Low-Profile JCASE Fuse (40A included) |
| Trigger Type | Configurable Ground (-) or +12V (+) |
What’s Included in the Box
- 1 x MSD Relay Module (Part No. Fri Apr 01 7566 00:00:00 GMT+0100 (British Summer Time))
- 1 x Protective Snap-On Housing Lid
- 1 x 40 Amp Low-Profile JCASE Fuse
- 1 x Terminal Mounting Hardware Kit
When configuring high-performance automotive electronics, dependable power routing is essential. MSD products deliver market-leading quality and reliability for motorsport applications. Order now from JP Racing for expert technical assistance and fast UK delivery.
