Sale!

MSD Blaster HVC, Works w/ MSD 6 Series Units

Original price was: £273.19.Current price is: £259.54. Inc. VAT

SKU: MSD8252 Categories: , Brand:

Description

Part Number: 8252

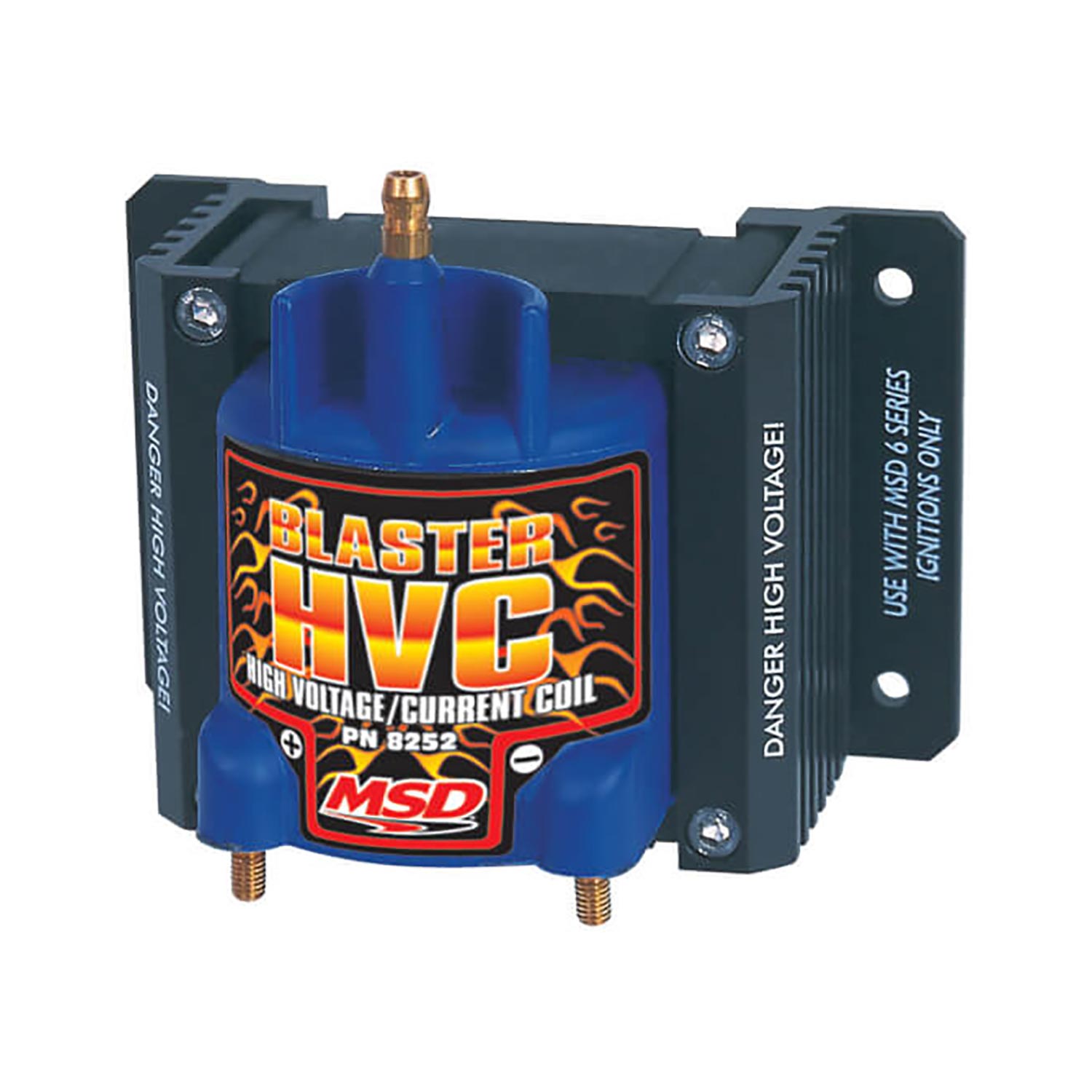

MSD Blaster HVC Ignition Coil

High-output blue E-core ignition coil engineered for high-RPM, long-duration circuit and drag racing applications.

Product Overview

Engineered to eliminate the traditional trade-off between voltage and current output, the MSD Blaster HVC Ignition Coil (PN 8252) features a high-efficiency E-core winding design. Operating with a 100:1 turns ratio and ultra-low primary resistance, this coil delivers up to 42,000 volts and 300 mA peak spark current to reliably ionize plug gaps under high compression and elevated engine speeds. Housed in a durable blue composite case and secured with heavy-duty extruded brackets, the Blaster HVC is supplied complete with vibration-damping rubber mounts for extreme motorsport environments.

Key Features

  • ☑ High-Voltage E-Core Design: Delivers exceptional spark energy without compromising peak voltage output.
  • ☑ 100:1 Turns Ratio: Low primary resistance (0.020 Ω) maximises energy transfer to the secondary windings.
  • ☑ High-RPM Endurance: Optimized for circuit, road race, and circle track applications paired with MSD 6-Series ignitions.
  • ☑ Vibration Isolated: Encased in blue epoxy with extruded brackets and supplied rubber shock mounts.
  • ☑ Brass Primary Terminals: Threaded brass studs and male HEI spark plug tower ensure positive electrical connections.
  • ☑ 50-State Legal: CARB E.O. Approved (D-40-37) for street and motorsport compliance.

Technical Specifications


Brand MSD Ignition
Part Number 8252
Coil Style E-Core (Remote Mount)
Housing Colour Blue
Maximum Voltage 42,000 V
Peak Current 300 mA
Primary Resistance 0.020 Ω
Secondary Resistance 1.38 kΩ
Inductance 7.0 mH
Spark Duration 200 µs
Turns Ratio 100:1
Primary Terminal Type Threaded Brass Studs
Secondary Tower Type Male / HEI Spark Plug Style

What’s Included in the Box

  • 1x MSD Blaster HVC Ignition Coil – Blue (PN 8252)
  • 4x Rubber Vibration Shock Mounts
  • 1x Mounting Hardware Pack

As an official UK stockist of genuine MSD Ignition products, JP Racing ensures swift dispatch and expert technical advice across the UK and Europe. Upgrade your race ignition setup with confidence backed by our dedicated support team.

Additional information

Weight 1.84 kg
Dimensions 12.7 × 12.7 × 12.7 cm
