Description

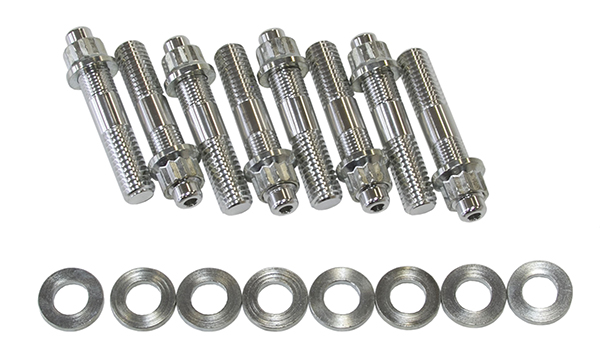

Aeroflow Blower Stud Kit 2.50″ Total Length (Silver)
Precision-engineered 6061-T6 aluminium blower studs designed to safeguard your supercharger and engine during severe backfire conditions.
Engineered Supercharger Protection
The Aeroflow AF37-0602 Blower Stud Kit is manufactured specifically for high-performance supercharged engine applications. Precision CNC-machined from aerospace-grade 6061-T6 aluminium and finished in silver anodising, these studs act as a sacrificial safety mechanism during extreme engine backfires. In the event of a severe manifold over-pressurisation, the aluminium studs shear intentionally, allowing the supercharger to separate cleanly from the intake manifold to prevent catastrophic housing and engine damage.
Each kit features 2.50″ (63mm) overall length studs paired with high-tensile 12-point steel nuts and hardened steel washers for reliable, consistent clamping force across high-boost motorsport applications.
Key Features
- ☑ 6061-T6 Aerospace Aluminium: Machined for exact mechanical fail-safe shear strength during manifold backfires.
- ☑ Corrosion-Resistant Finish: Anodised silver coating provides long-lasting protection against oxidation and heat cycles.
- ☑ Dual Thread Configuration: Machined with 7/16″ UNC thread for the manifold/blower side and 7/16″ UNF on the nut side.
- ☑ Complete Hardware Package: Includes premium 12-point steel nuts and hardened steel washers for accurate torque application.
- ☑ 2.50″ Overall Length: 63mm total length engineered for standard supercharger manifold mounting dimensions.
Quick Tech Specs
- Brand: Aeroflow Performance
- MPN: AF37-0602
- Overall Length: 2.50″ (63mm)
- Thread (Blower Side): 7/16″ UNC
- Thread (Nut Side): 7/16″ UNF
- Torque Rating: 15 ft lbs (20 Nm)
Technical Specifications
| Manufacturer | Aeroflow Performance |
|---|---|
| Part Number | AF37-0602 |
| Stud Material | 6061-T6 Billet Aluminium |
| Finish | Silver Anodised |
| Overall Length (OAL) | 2.50″ / 63mm |
| Thread Pitch (Blower / Manifold Side) | 7/16″ UNC |
| Thread Pitch (Nut Side) | 7/16″ UNF |
| Nut Type | 12-Point Quality Steel Nuts |
| Washer Type | Hardened Steel Washers |
| Recommended Torque | 15 ft lbs (20 Nm) |
What’s Included in the Box
- Aeroflow 6061-T6 Silver Anodised Blower Studs (2.50″ OAL)
- High-Tensile Steel 12-Point Nuts
- Hardened Steel Washers
Aeroflow Performance products are manufactured to rigorous aerospace quality standards, delivering proven dependability on the drag strip and street. As an authorised UK supplier, JP Racing keeps genuine Aeroflow hardware ready for fast UK dispatch with dedicated technical support for your motorsport build.
