Description
Part Number: AF64-4054BLK

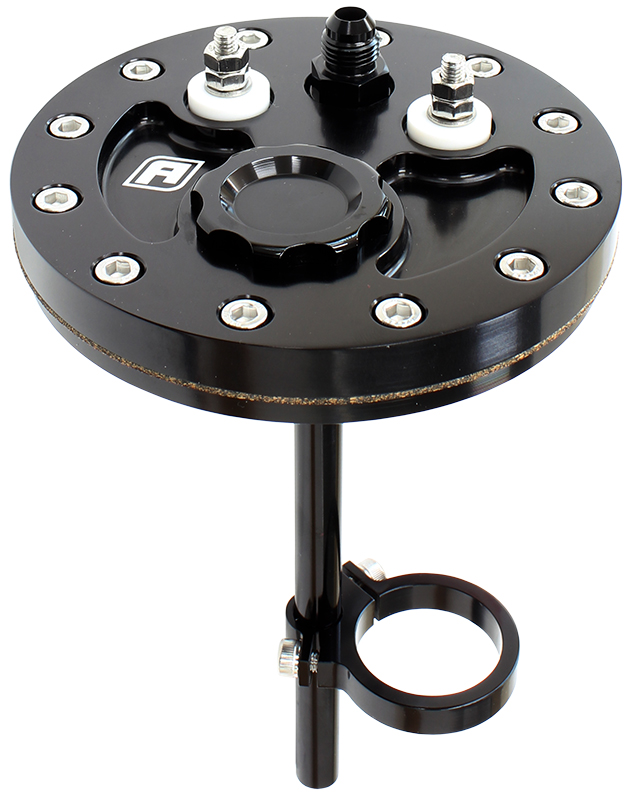

Aeroflow Drop-In Billet Fuel Cell Pump Hanger – Black Finish
Upgrade your fuel delivery system when converting from carburettor to EFI with this premium single billet fuel cell pump hanger from Aeroflow Performance. Precision CNC-machined from 6061-T6 aluminium and finished in hard black anodising, it provides superior durability and corrosion protection for E85, methanol, and race fuels.
Key Features
- ☑ Single 40mm Pump Mounting: Accommodates one AF49-1041, AF49-1042, or any 40mm (1-37/64″) diameter in-tank fuel pump.
- ☑ Billet 6061-T6 Aluminium: Lightweight, high-strength CNC-machined construction.
- ☑ E85 & Methanol Compatible: Anodised black finish ensures long-term fuel system protection.
- ☑ Integrated Filler Assembly: Includes built-in fuel cap with -16 ORB port.
- ☑ High-Flow AN Feed: Features a -6 AN male feed outlet for maximum EFI flow efficiency.
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Manufacturer Part Number | AF64-4054BLK |
| Material | Billet 6061-T6 Aluminium |
| Finish | Black Anodised |
| Pump Compatibility | Single 40mm (1-37/64″) Diameter In-Tank Pump |
| Tank Depth | Suits 250mm (10″) Deep Fuel Cells |
| Bolt Circle PCD | 120mm (4-23/32″) |
| Tank Cutout Diameter | 76.2mm (3″) |
| Outlet Port | -6 AN Male Feed |
| Filler Port / Cap | Integrated Cap with -16 ORB Port |
| Fuel Compatibility | Petrol, E85, Ethanol, and Methanol |
What’s Included in the Box
- 1 x Aeroflow Black Billet Drop-In Fuel Cell Pump Hanger Assembly
- 1 x Integrated Billet Fuel Filler Cap
- 1 x In-Tank PTFE Fuel Filler Hose
- Stainless Steel Hose Clamps & Hardware Kit
Aeroflow Performance components are engineered for demanding motorsport applications. Order your AF64-4054BLK fuel hanger from JP Racing for authentic quality, fast UK shipping, and dedicated technical support.
