Description
Part Number: 79632
FiTech Ultimate LS 1000 HP EFI Master Kit with Long Runner Cathedral Intake & Fuel Module
Take your LS engine swap or high-performance retrofit to the next level with FiTech’s complete self-tuning 1,000 HP fuel injection master kit.
Key System Features
- ☑ Complete self-tuning EFI system rated for up to 1,000 HP on Cathedral Port LS heads
- ☑ Fabricated 3mm aluminum TIG-welded long-runner intake manifold
- ☑ High-flow 102mm cable-operated throttle body and 80 lb/hr fuel injectors
- ☑ Go Fuel 440 LPH in-tank pump module with Go Fuel tight-fit regulator and 0-100 PSI gauge

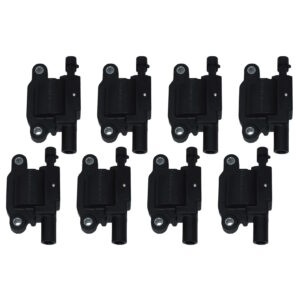

- ☑ Includes Go Spark LS3-style ignition coils (8-pack) with integrated diagnostic LEDs
- ☑ Integrated 3-bar MAP sensor supporting up to 30 psi of forced-induction boost
- ☑ Handheld color touchscreen controller for easy setup, diagnostics, and real-time monitoring
Technical Specifications
| Brand | FiTech Fuel Injection |
|---|---|
| Manufacturer Part Number | 79632 |
| Horsepower Rating | Up to 1,000 HP |
| Cylinder Head Fitment | Cathedral Port LS (LS1, LS2, LS6, LR4, LM4, LM7, LQ4, LQ9) |
| Intake Manifold Style | Fabricated 3mm Aluminum Long Runner |
| Throttle Body Diameter | 102mm Cable-Operated |
| Fuel Injector Size | 80 lbs/hr |
| MAP Sensor | 3-Bar (Supports up to 30 PSI Boost) |
| Fuel Pump Module | Go Fuel In-Tank 440 LPH |
| Ignition System | Go Spark LS3-Style Coils with LED (8-Pack) |
What’s Included in the Box
- Fabricated Aluminum Long-Runner Cathedral Port Intake Manifold
- 102mm Cable-Driven Throttle Body
- Go Fuel 440 LPH In-Tank Fuel Pump Module & Go Fuel Regulator with Gauge
- Go Spark LS3-Style Ignition Coils with LEDs (8-Pack)
- 80 lb/hr High-Flow Injectors & Billet Fuel Rails
- Touchscreen Handheld Self-Tuning ECU Controller
- Dual Bosch Wideband O2 Sensors & Oxygen Sensor Bungs
- Plug-and-Play Wiring Harness & Engine Sensors
Designed to take the guesswork out of LS engine retrofits, the FiTech 79632 Ultimate LS Master Kit delivers high-end fuel delivery, ignition control, and intake efficiency in one package. Order yours today from JP Racing with fast UK delivery and expert motorsport customer support.
