Description
Part Number: 1300-00408

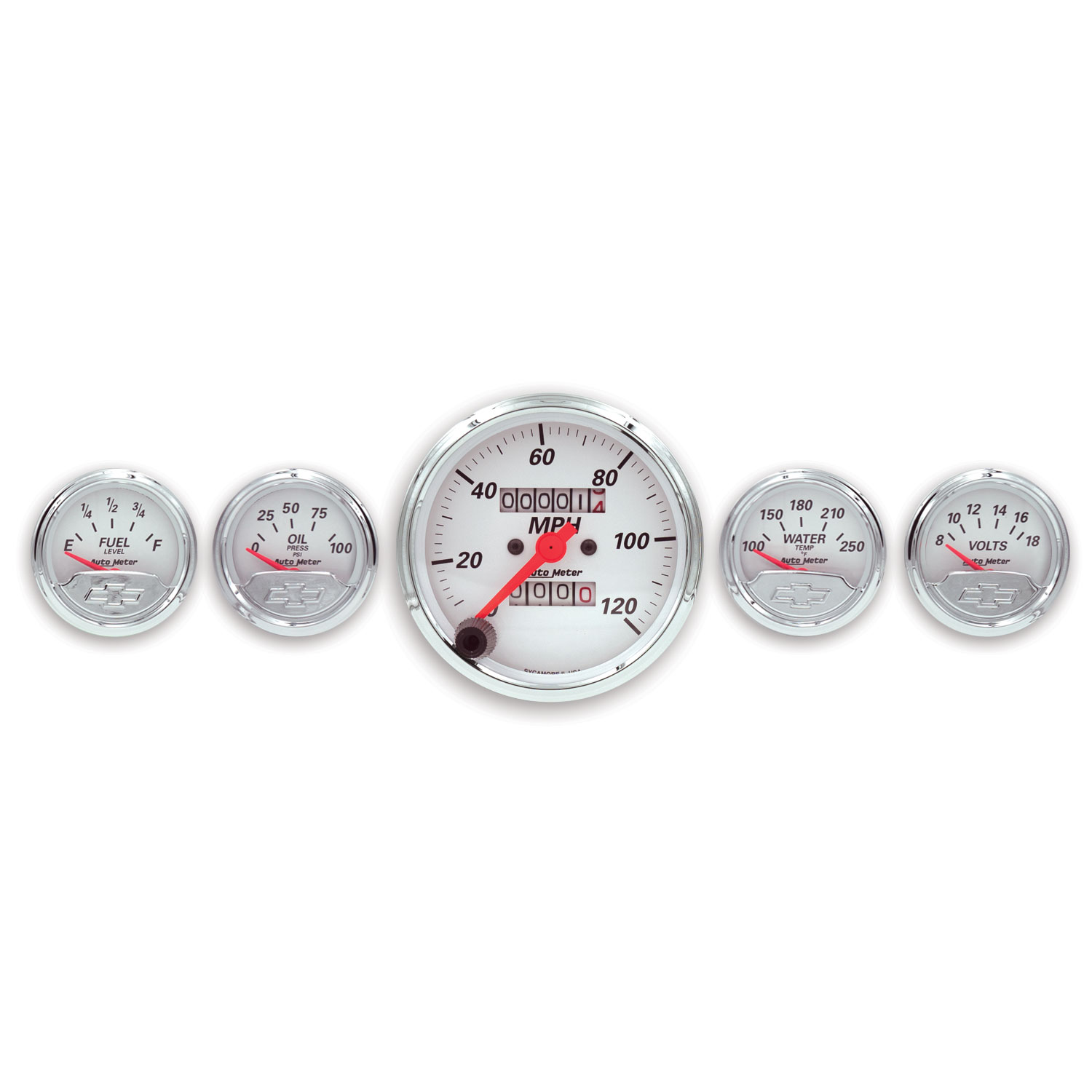

AutoMeter Chevrolet Heritage Bowtie 5-Piece Mechanical Gauge Kit
Complete vintage-styled instrument cluster featuring iconic Chevrolet Bowtie branding, domed glass lenses, chrome bezels, and reliable mechanical movements.
Key Features
- ☑ Classic Chevrolet Heritage Bowtie white dial design with retro street rod chrome bezels and clear domed lenses
- ☑ Complete 5-gauge kit: 3-1/8″ mechanical speedometer plus four 2-1/16″ auxiliary monitoring gauges
- ☑ Speedometer features a traditional rolling drum odometer and resettable trip meter
- ☑ Perimeter incandescent illumination with included red and green light covers
- ☑ Includes high-accuracy senders for fuel level, oil pressure, and engine water temperature
- ☑ Universal design ideal for classic Chevy restorations, hot rods, and custom dashboard builds
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Manufacturer Part Number | 1300-00408 |
| Series | Chevrolet Heritage Bowtie (Chevy Vintage) |
| Kit Type | 5-Piece Gauge Kit |
| Speedometer Size & Type | 3-1/8″ (79.4mm) Mechanical Speedometer (0-120 MPH) |
| Auxiliary Gauge Size | 2-1/16″ (52.4mm) |
| Included Gauges | Speedometer (120 MPH), Oil Pressure (0-100 PSI), Water Temp (100-250 °F), Voltmeter (8-18V), Fuel Level (240E/33F Ohms) |
| Speedometer Thread | Accepts 5/8″ x 18 Thread Speedometer Cable (60 MPH @ 1,000 Cable RPM) |
| Dial & Pointer Finish | White Dials, Chrome Bezels, Fluorescent Red Pointers |
| Lighting | Traditional Incandescent Perimeter Lighting (12V/16V Compatible) |
What’s Included in the Box
- 1x 3-1/8″ Mechanical Speedometer Gauge (120 MPH)

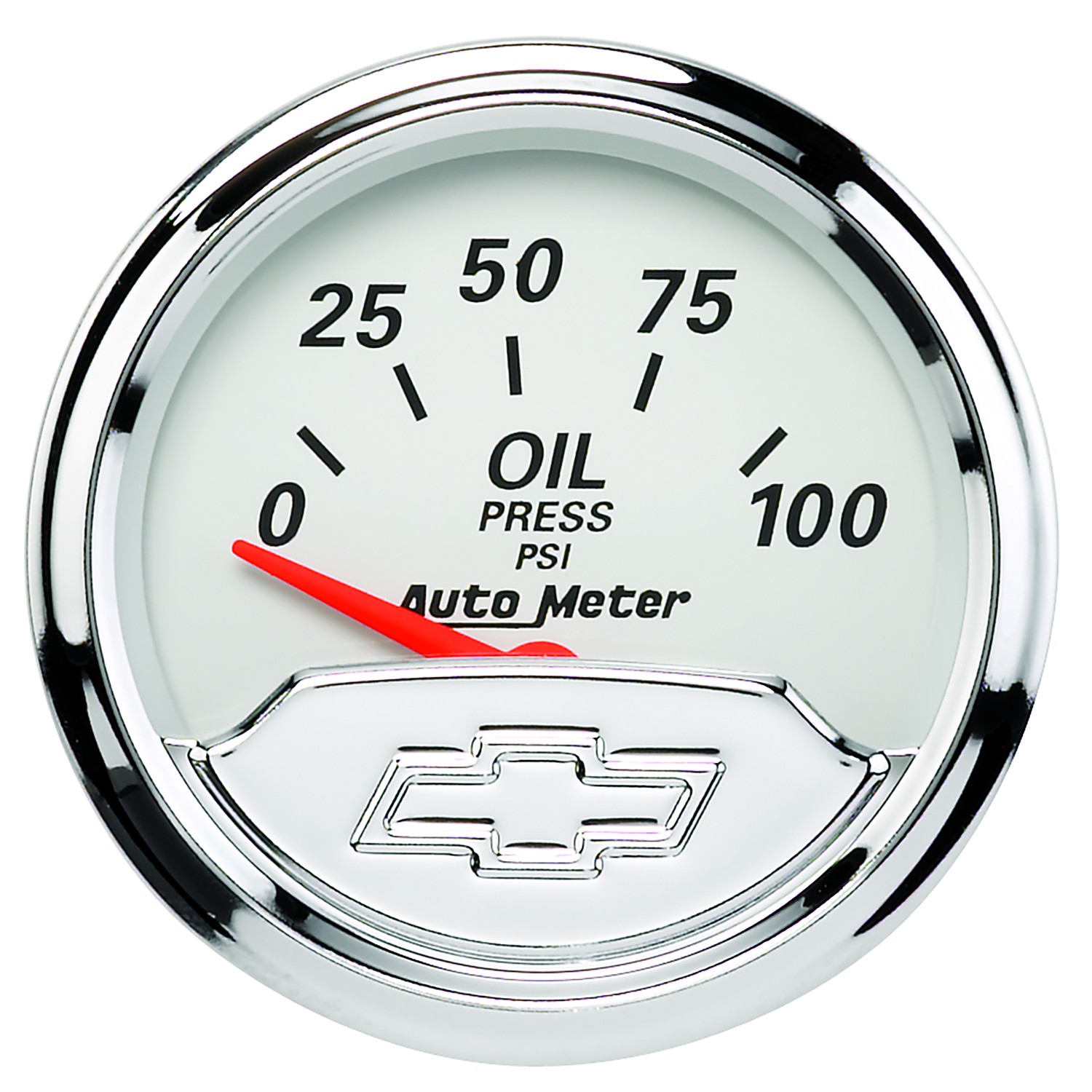

- 1x 2-1/16″ Oil Pressure Gauge (0-100 PSI)

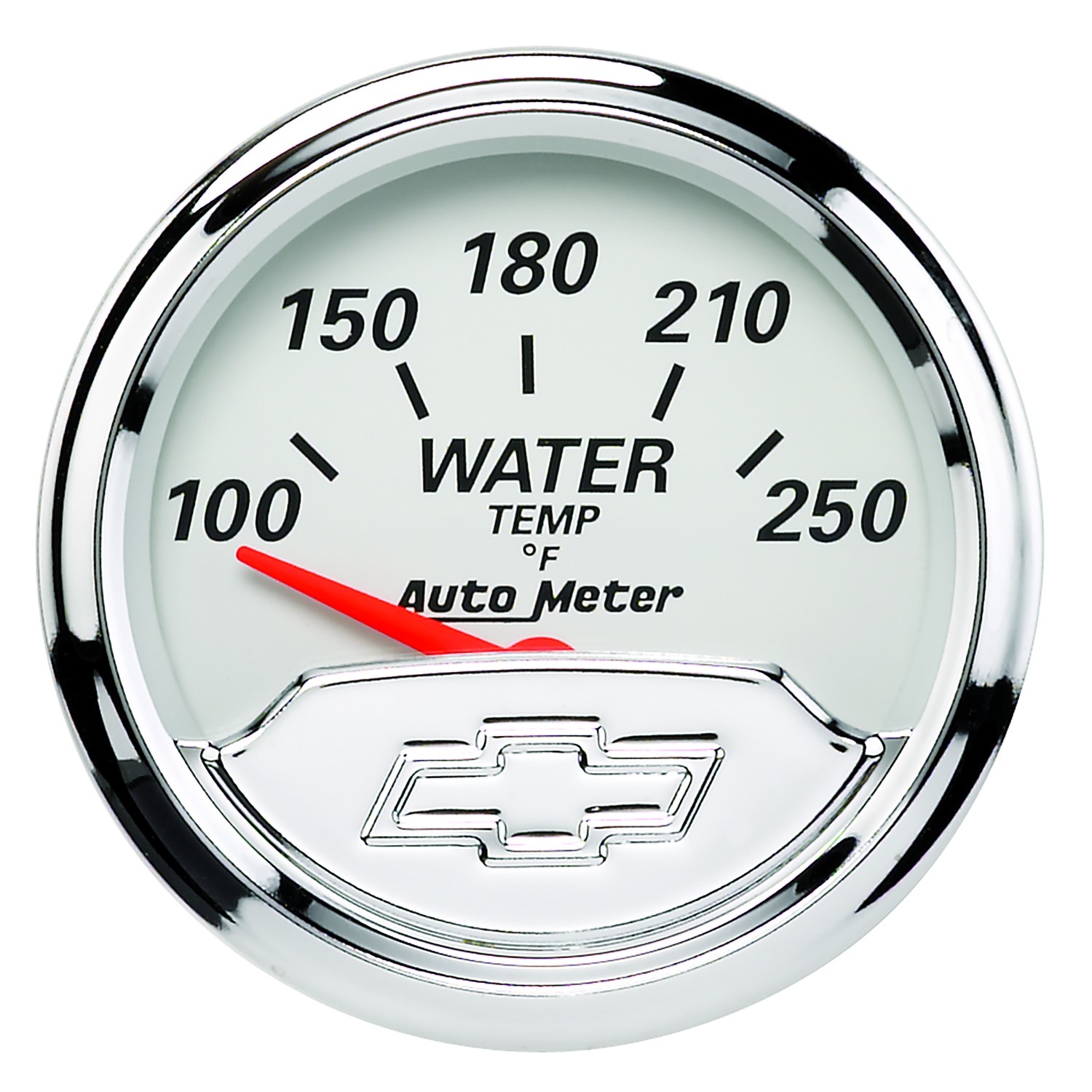

- 1x 2-1/16″ Water Temperature Gauge (100-250 °F)

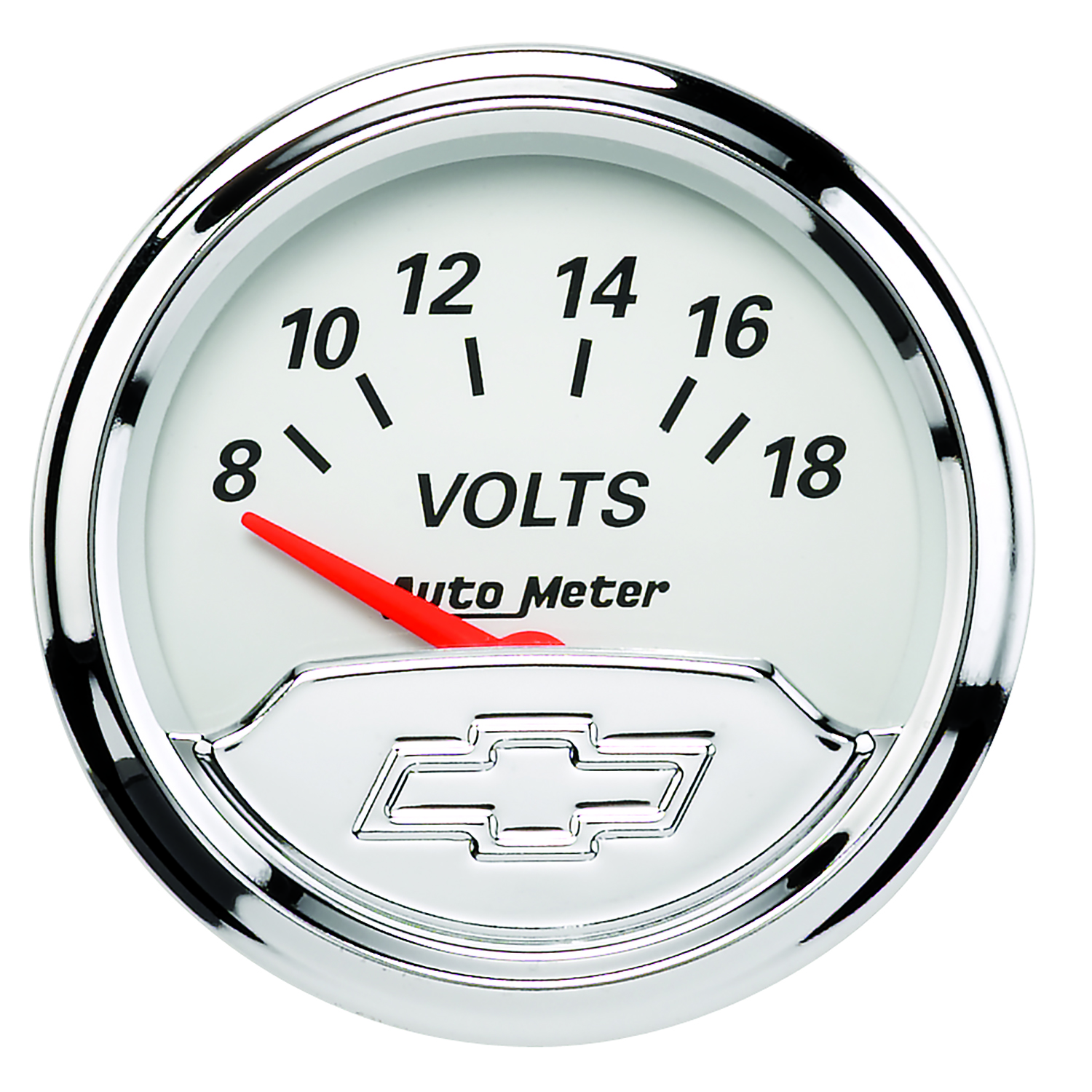

- 1x 2-1/16″ Voltmeter Gauge (8-18V)

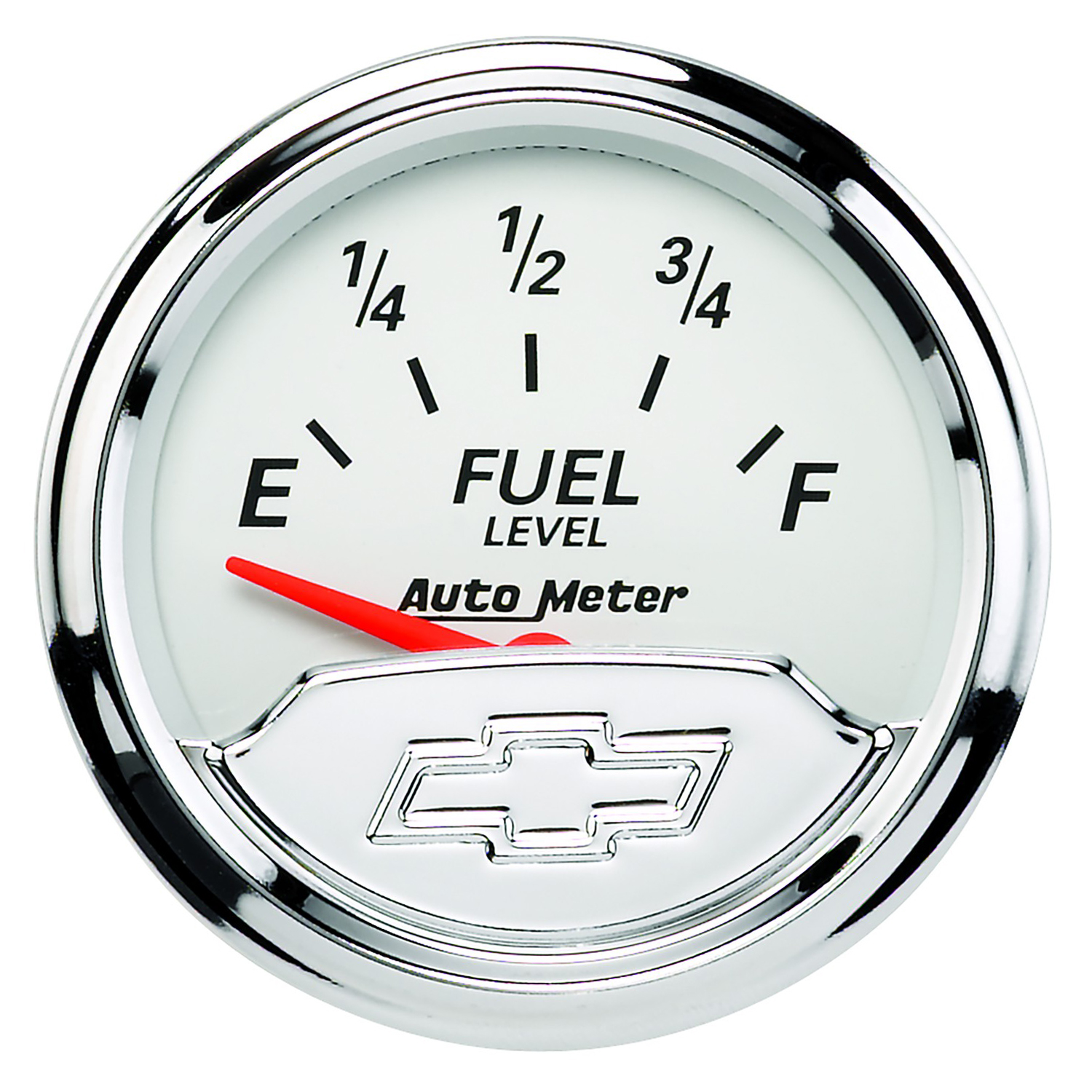

- 1x 2-1/16″ Fuel Level Gauge (240E/33F Ohms)
- 1x Fuel Level Sender (Model 3262)
- 1x Oil Pressure Sender (Model 2242)
- 1x Water Temperature Sender (Model 2258)
- 1x Bulb and Socket Assemblies with Red & Green Bulb Covers
- 1x Mounting Brackets and Assembly Hardware Kit
Engineered to AutoMeter’s rigorous motorsport standards, the 1300-00408 kit delivers exceptional reliability and period-correct styling for classic American builds. As an authorized UK distributor, JP Racing supplies 100% genuine AutoMeter products directly from UK stock with quick dispatch and full technical support.
