Description

Part Number: 7008

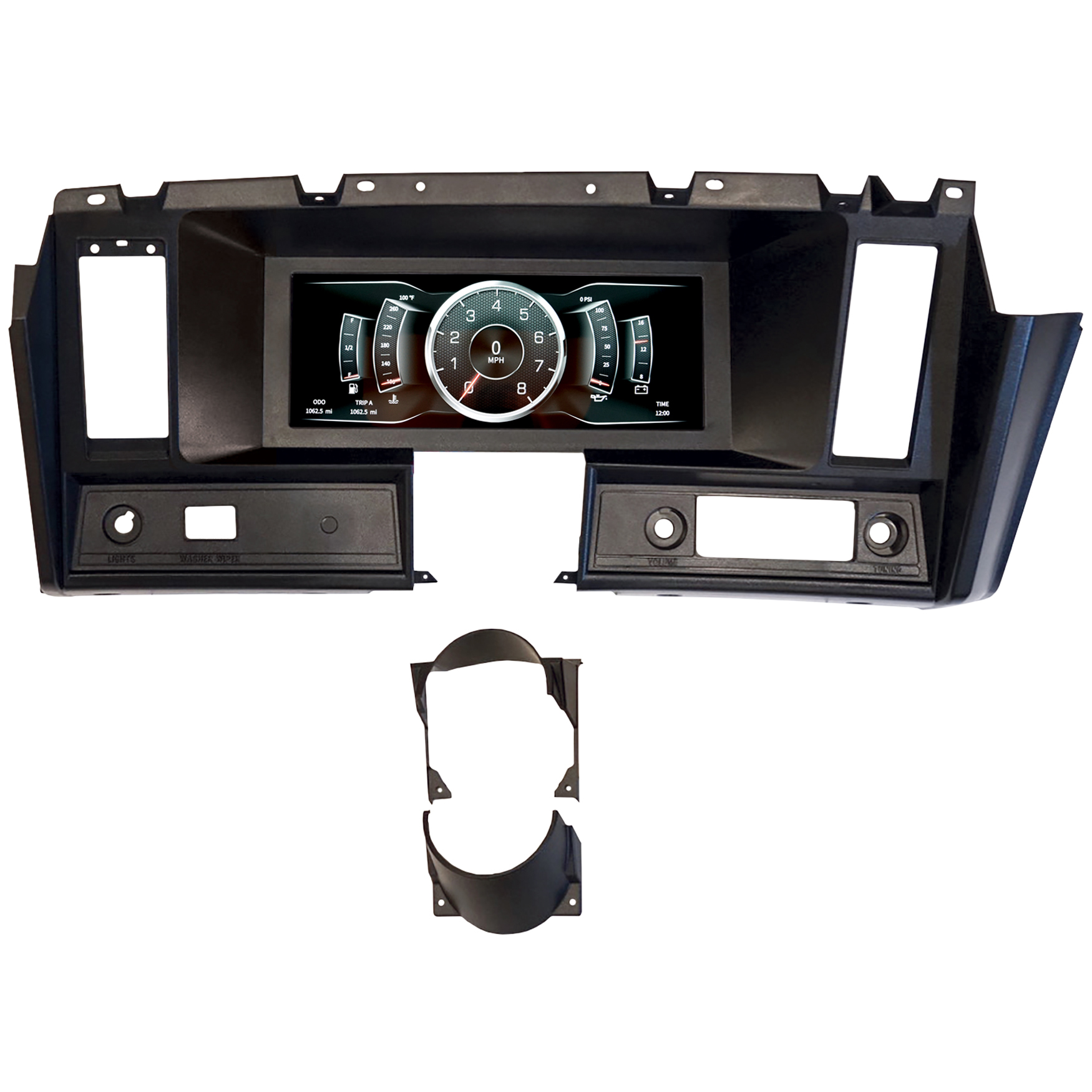

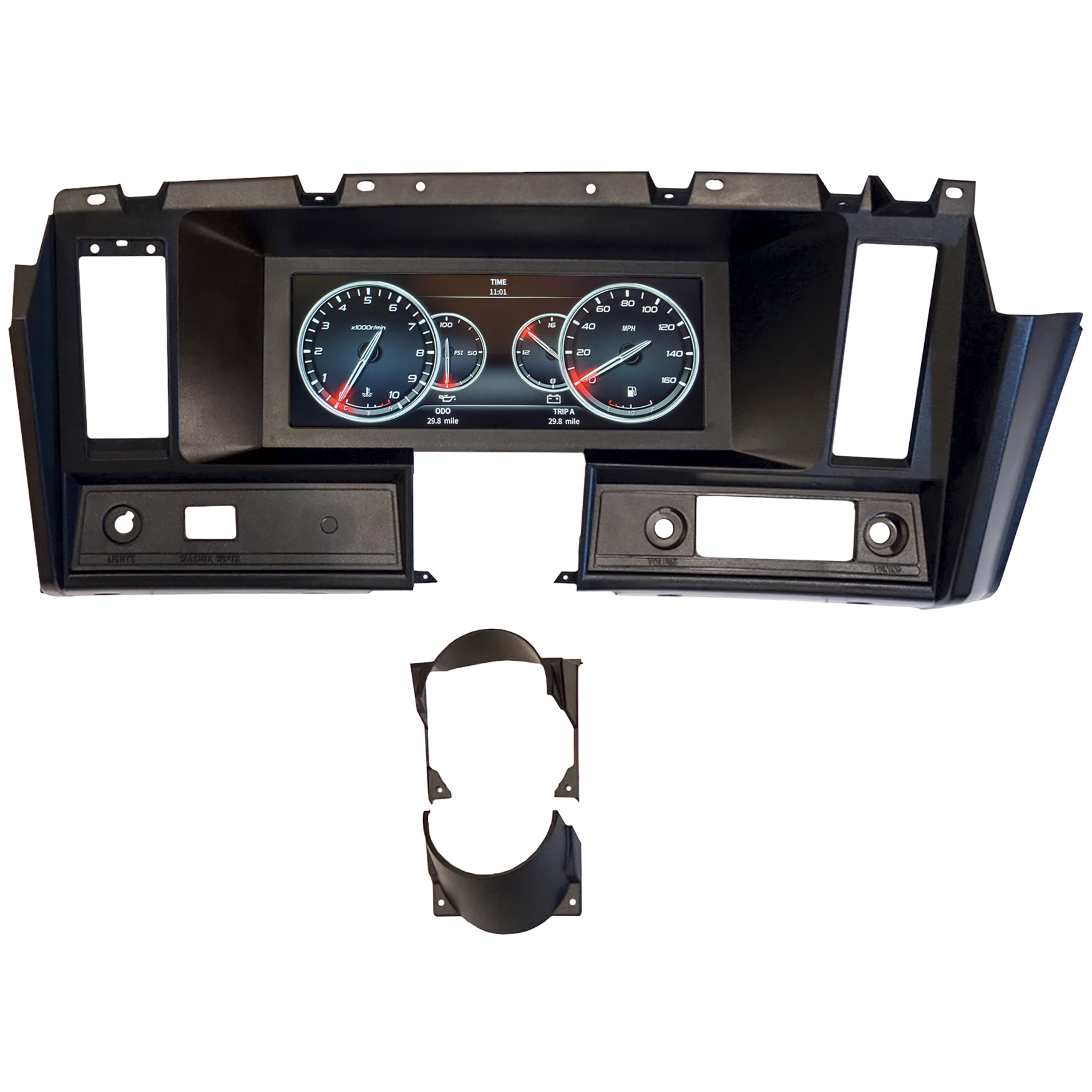

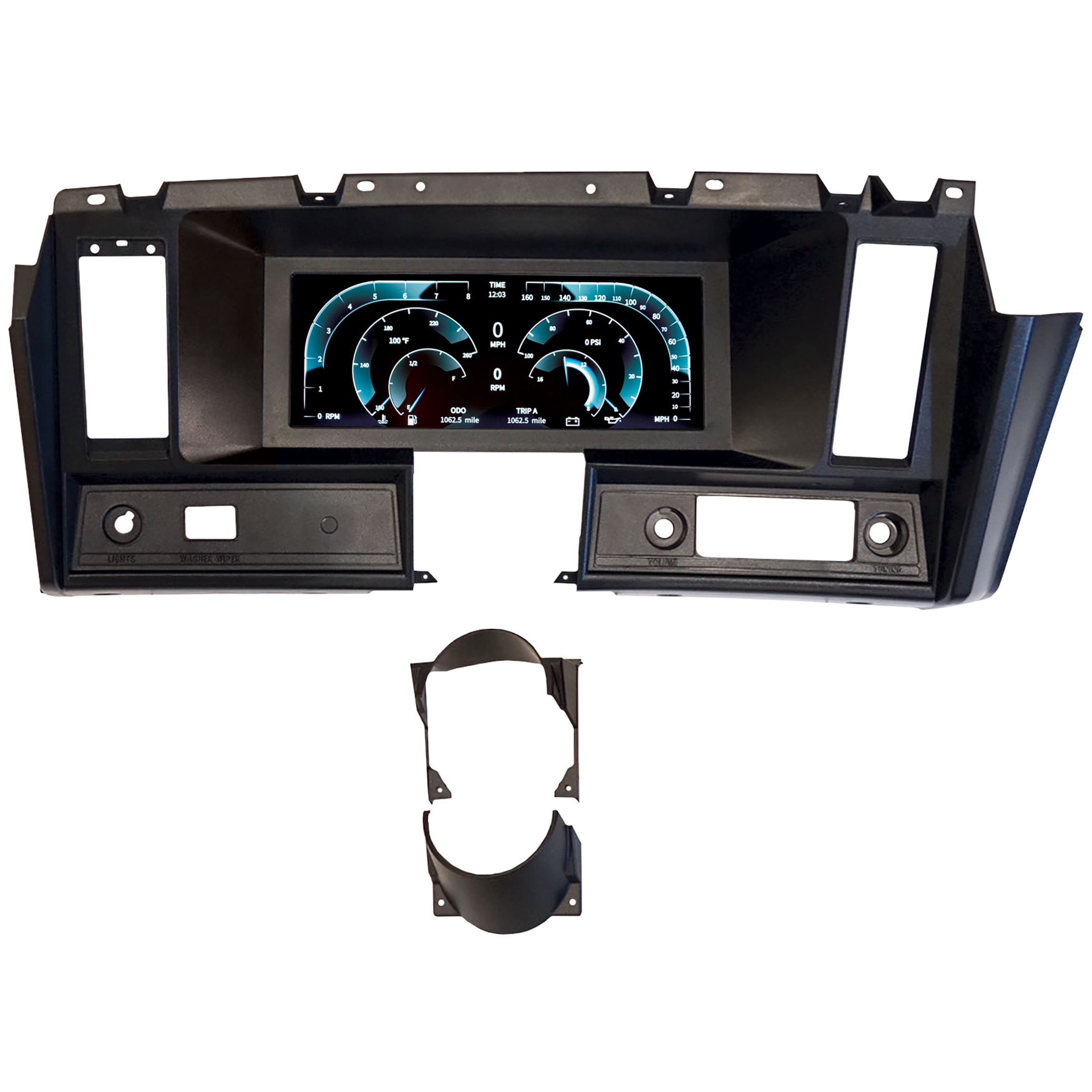

AutoMeter InVision Direct Fit LCD Digital Dash Kit for 1969 Chevrolet Camaro

Upgrade your classic 1969 Chevy Camaro with state-of-the-art 12.3″ LCD digital instrumentation engineered for direct fitment into the factory dashboard bezel without cutting or drilling.

Key Features

☑ High-resolution 12.3″ multi-color LCD screen with user-selectable display layouts.
☑ Direct-fit design engineered specifically for 1969 Chevrolet Camaro dash bezels with zero modification required.
☑ Monitors 6 essential parameters: Speedometer, Tachometer, Fuel Level, Oil Pressure, Water Temperature, and Volts.
☑ Visual and audible warnings for low fuel, low oil pressure, high water temperature, and voltage fluctuations.
☑ Integrated indicators for turn signals, high beams, check engine light, and customizable warning notifications.
☑ Speedometer calibrates easily to OEM or aftermarket vehicle speed sensors (VSS) and tachometer supports 1-12 cylinder engines.

Technical Specifications

Brand	AutoMeter
Manufacturer Part Number	7008
Display Type	12.3″ Color LCD
Vehicle Fitment	1969 Chevrolet Camaro
Bezel Material & Finish	Direct-Fit Molded ABS Plastic (Black)
Gauges Monitored	Speedometer, Tachometer, Water Temp, Oil Pressure, Fuel Level, Voltmeter
Units of Measure	User-selectable Imperial or Metric
Sending Units Included	Water Temperature & Oil Pressure Senders Included

What’s Included in the Box

AutoMeter InVision 12.3″ LCD Digital Display Module
Direct-Fit 1969 Camaro Dashboard Bezel
Wiring Harness & Dash Customization Joystick
1/8″ NPT Water Temperature Sensor & Adapter Fittings
1/8″ NPT Oil Pressure Sensor
Mounting Hardware & Installation Guide

Engineered with decades of competition-proven racing technology, AutoMeter instruments deliver unmatched precision and reliability. Order your AutoMeter 7008 InVision digital dash kit from JP Racing today to benefit from expert UK technical advice, dedicated customer support, and fast dispatch across the UK.

Additional information

Weight	6.35 kg
Dimensions	38.1 × 81.28 × 35.56 cm

Frequently Asked Questions

No, the AutoMeter 7008 InVision system includes a custom direct-fit molded bezel specifically designed for the 1969 Chevrolet Camaro. It installs directly into the original factory dash location without requiring any cutting, drilling, or permanent modifications to your original dash structure.

The kit comes complete with dedicated electric oil pressure and water temperature sending units, along with adapter fittings, a universal wiring harness, and a dash joystick. It utilizes your existing factory or aftermarket fuel tank sending unit and vehicle speed sensor (VSS) signal.

Calibration is easily done using the supplied joystick controller and menu navigation on the 12.3" display. You can calibrate the speedometer via a drive-to-calibrate function or pulsed input setting, while the fuel gauge features built-in selectable ohm resistance ranges for factory GM, Ford, Chrysler, and popular aftermarket senders.
