Description
Part Number: 3227
AutoMeter Braided Stainless Steel Pressure Gauge Line Kit (3ft / #4 AN)
Engineered for extreme reliability under severe motorsport conditions, the AutoMeter 3227 gauge line kit provides a leak-free high-pressure connection for mechanical fuel and oil pressure gauges or remote-mounted electric senders.
Key Features
- ☑ High-durability Type 304 braided stainless steel outer jacket for maximum abrasion and heat protection.
- ☑ Smooth-bore PTFE inner liner fully resistant to fuel, oil, race fluids, and extreme temperatures.
- ☑ Heavy-duty rating: 3,000 PSI maximum operating pressure with a 12,000 PSI burst pressure threshold.
- ☑ Flexible 3-foot (36″) length for versatile routing through vehicle firewalls and tight engine bays.
- ☑ Includes firewall pass-through grommet and full set of precision NPT and AN brass/steel adapter fittings.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Part Number | 3227 |
| Hose Length | 3 Feet (36 Inches / 0.91 m) |
| Hose Diameter / Size | #4 AN (-4AN) |
| Hose Material | Type 304 Braided Stainless Steel with PTFE Liner |
| Max Operating Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Operating Temperature | -65°F to 450°F (-54°C to 232°C) |
| Included Fittings | 1/8″ NPT & -4AN Adapters |

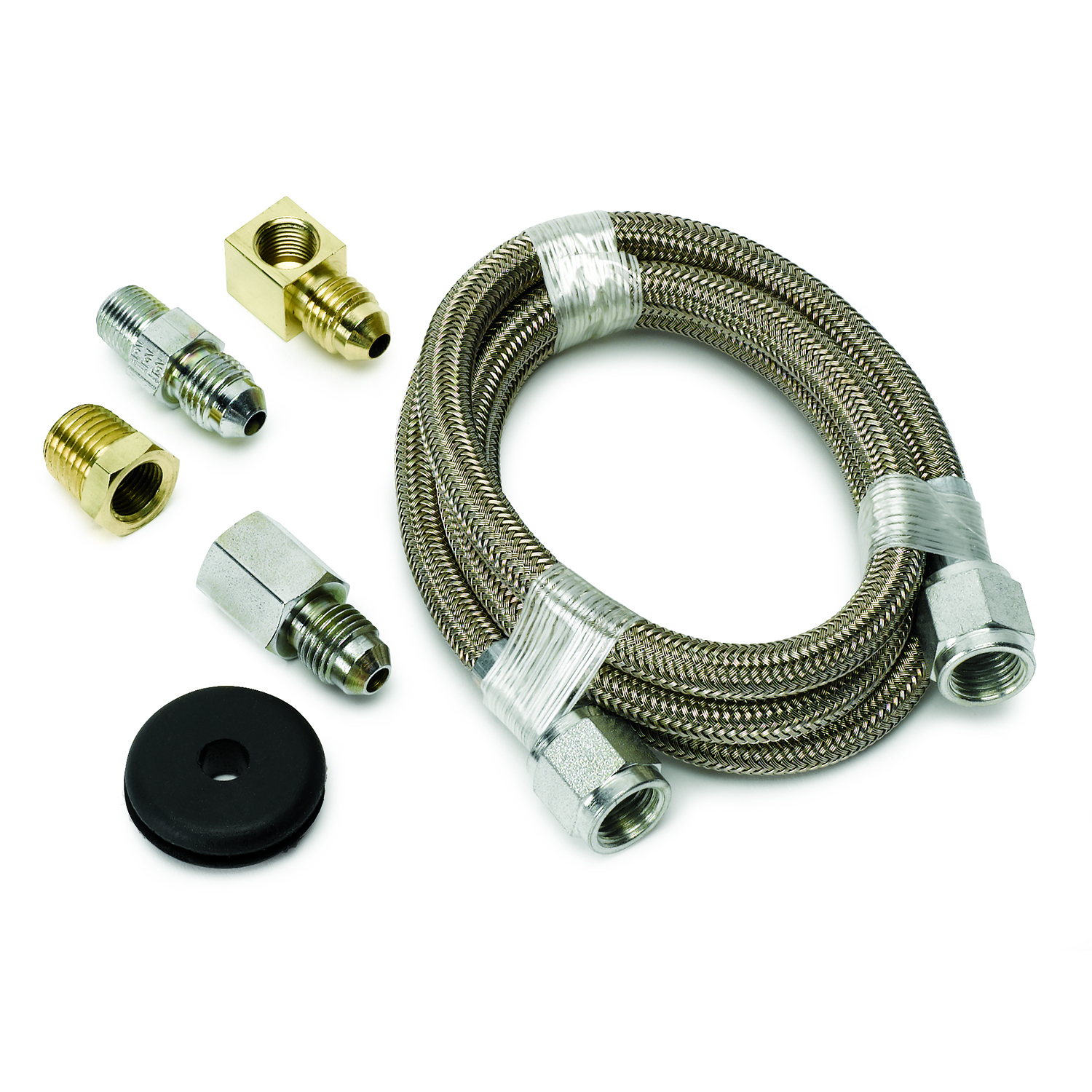

What’s Included in the Box
- 1x 3 ft #4 AN Braided Stainless Steel Hose (-4AN PTFE Lined)
- 1x Rubber Firewall Pass-Through Grommet
- 1x 1/8″ NPT Female Right Angle to -4AN Male Fitting (90 Degree)
- 1x -4AN Male to 1/8″ NPT Male Straight Fitting
- 1x -4AN Male to 1/8″ NPT Female Straight Fitting
- 1x 1/8″ NPT to 1/4″ NPT Adapter Bushing
AutoMeter is trusted by professional race teams worldwide for precision instrumentation and accessories. The 3227 pressure line kit ensures accurate gauge response and bulletproof durability under demanding track conditions. Available now from JP Racing with fast UK shipping and full technical support.
