Part Number: 3229
AutoMeter 4 ft Braided Stainless Steel Gauge Line Kit (-4 AN)
Engineered for high-performance automotive and motorsport applications, the AutoMeter 3229 braided stainless steel line kit delivers leak-free pressure monitoring for mechanical pressure gauges and remote gauge pressure senders.
Key Features
- ☑ High-grade 304 braided stainless steel outer sheath for maximum heat and abrasion resistance
- ☑ Premium PTFE (Teflon) inner liner compatible with fuel, oil, synthetic lubricants, and engine fluids
- ☑ Generous 4-foot length (#4 AN hose diameter) ideal for routing through engine bays and firewalls
- ☑ Engineered for high-pressure durability with 3,000 PSI operating pressure and 12,000 PSI burst pressure
- ☑ Complete hardware package including 1/8″ NPT and 1/4″ NPT adapter fittings and rubber firewall grommet
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Part Number | 3229 |
| Hose Length | 4 ft (48 inches) |
| Hose Size / Diameter | #4 AN (-4 AN) |
| Hose Material | Type 304 Braided Stainless Steel |
| Inner Core | PTFE (Teflon) |
| Max Operating Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Temperature Range | -65°F to 450°F (-54°C to 232°C) |
| Fitting Specifications | -4 AN & 1/8″ NPT / 1/4″ NPT Adapters Included |

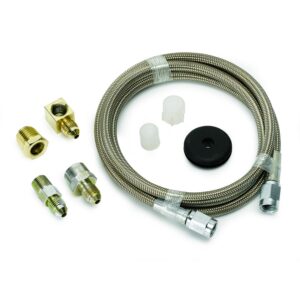

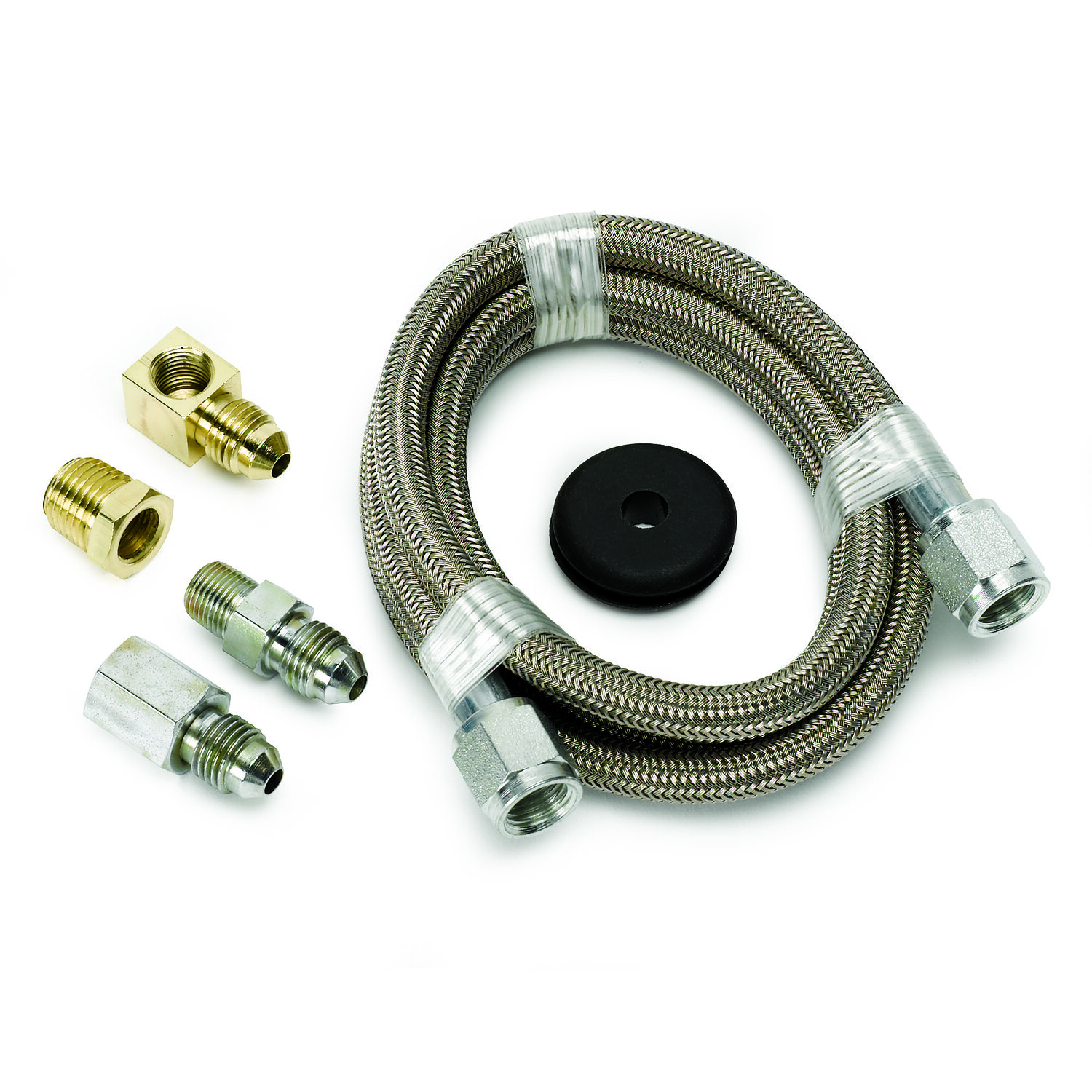

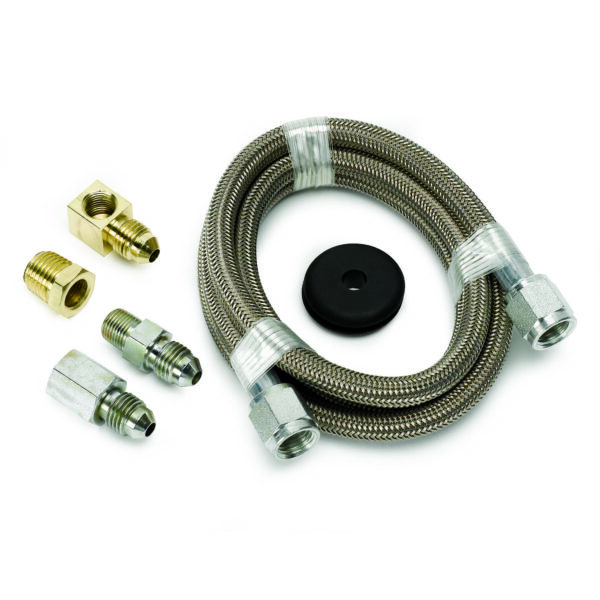

What’s Included in the Box
- 1 x 4 ft Braided Stainless Steel Hose (-4 AN)
- 1 x 1/8″ NPT Female Right-Angle (90°) to -4 AN Male Fitting
- 1 x -4 AN Male to 1/8″ NPT Male Fitting
- 1 x -4 AN Male to 1/8″ NPT Female Fitting
- 1 x 1/8″ NPT to 1/4″ NPT Adapter Bushing
- 1 x Protective Rubber Firewall Grommet
AutoMeter products set the standard for competition instrument plumbing. Sourced directly and held in stock by JP Racing, all AutoMeter kits include expert technical support and fast dispatch throughout the UK.
