Description
Part Number: AF49-1002

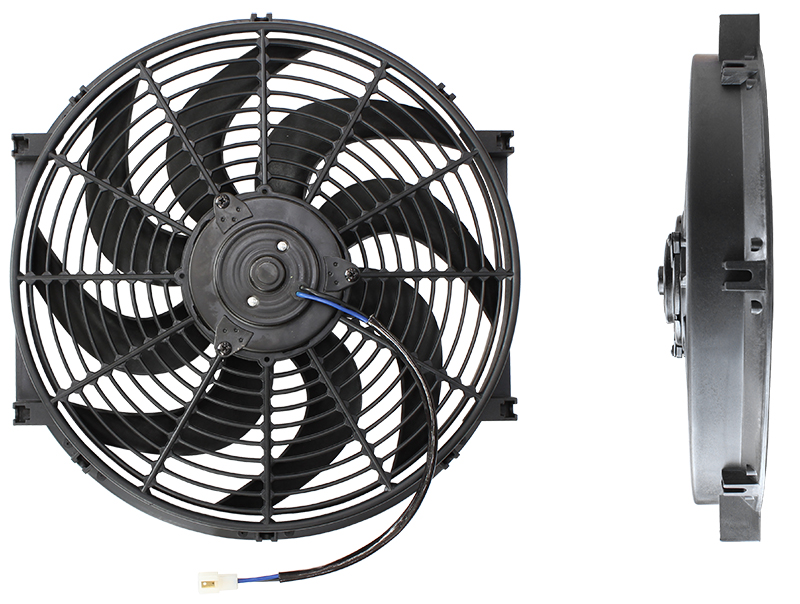

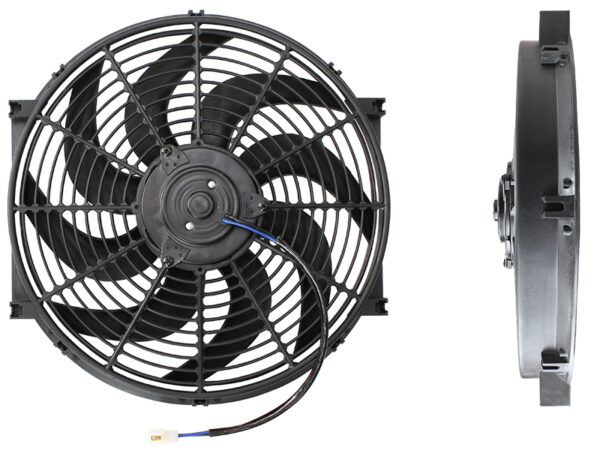

Aeroflow 14″ Curved Blade Reversible Electric Thermo Fan (1,650 CFM)
Engineered for high-efficiency cooling in high-performance street, circuit, and motorsport applications, delivering impressive airflow with a quiet curved blade design.
Key Features & Performance Highlights
- ☑ High-output 1,650 CFM airflow rating for reliable temperature management
- ☑ Fully reversible operation – factory puller configuration easily converted to pusher setup
- ☑ Aerodynamically optimized 14″ curved blades for maximum efficiency and reduced noise
- ☑ IP68 weatherproof-rated motor designed to endure severe street and motorsport conditions
- ☑ Slimline 2-7/8″ (74mm) overall depth ideal for tight engine bays and auxiliary heat exchangers
Technical Specifications
| Manufacturer | Aeroflow Performance |
|---|---|
| Part Number | AF49-1002 |
| Fan Blade Diameter | 14″ (355mm) |
| Overall Dimensions | 14-7/8″ x 14″ x 2-7/8″ (378mm x 356mm x 74mm) |
| Airflow Rating | 1,650 CFM |
| Default Configuration | Puller (Reversible to Pusher) |
| Operating Voltage | 12 Volts DC |
| Current Draw | 10 Amps (15A Fuse Recommended) |
| Weatherproof Rating | IP68 Waterproof / Dustproof |
| Weight | 1.65 kg |
What’s Included in the Box
- 1 x Aeroflow 14″ Curved Blade Thermo Fan Assembly (Motor, Shroud & Blade)

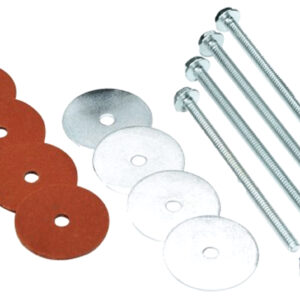

- 1 x Universal Fan Mounting/Fitting Hardware Kit
Aeroflow Performance products are manufactured to rigorous motorsport standards, providing proven reliability and thermal performance. Order your AF49-1002 thermo fan from JP Racing for fast UK dispatch and technical support.
