Snow Performance Water Methanol Extended Injection Nozzle 2 Gallons Per Hour (GPH)

Snow Performance Water Methanol Extended Injection Nozzle 2 Gallons Per Hour (GPH)

Original price was: £41.27.Current price is: £37.14. Inc. VAT

SKU: NITSNO-N0200EX Categories: , Brand:

Description

Part Number: SNO-N0200EX

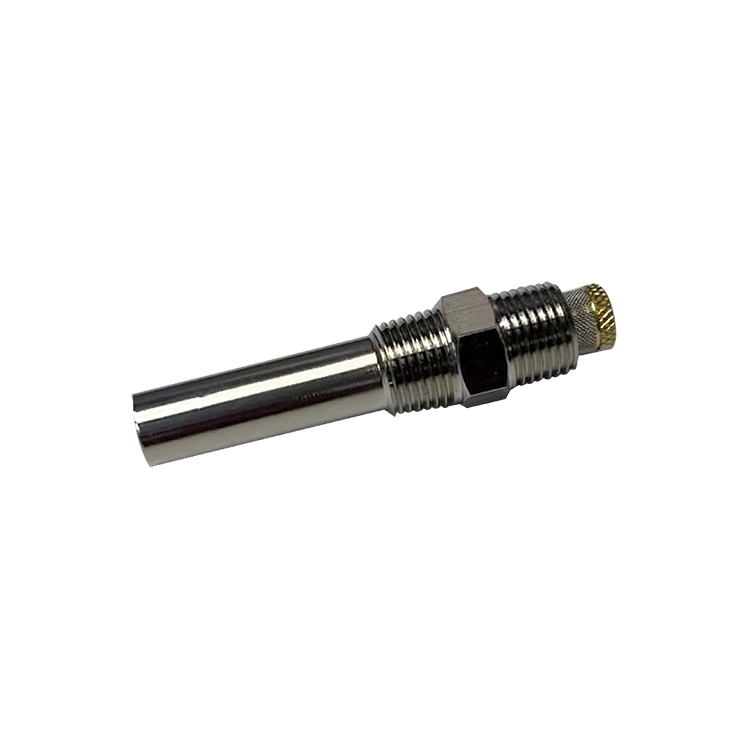

Snow Performance 2 GPH 1″ Extended Water-Methanol Injection Nozzle

Precision fluid atomization with extended reach for deep intake plenum and runner mounting.

Key Features

  • ☑ 2 GPH Flow Rate: Delivers ~126 ml/min atomized fluid output for precise thermal management and knock prevention.
  • ☑ 1″ Extended Reach: Projects the atomizing tip directly into high-velocity intake airflow, bypassing thick manifold walls or spacers.
  • ☑ Hyper-Sonic Atomization: Engineered nozzle geometry creates an ultrafine mist for maximum evaporative cooling efficiency.
  • ☑ 100-Micron Mesh Filter: Integrated stainless steel filter protects nozzle orifice from debris and clogging.
  • ☑ Standard 1/8″ NPT Thread: Direct fitment into standard water-methanol bungs, plates, and intake boots.

Technical Specifications


Brand Snow Performance
MPN SNO-N0200EX
Flow Rate 2.0 GPH (approx. 126.18 ml/min)
Extension Length 1″ (25.4 mm)
Overall Length 2″ (50.8 mm)
Thread Specification 1/8″ NPT Male
Filter Element 100 Micron Stainless Steel Mesh

What’s Included in the Box

  • 1x Snow Performance 2 GPH 1″ Extended Water-Methanol Nozzle (SNO-N0200EX)
  • 1x Integrated 100-Micron Stainless Steel Filter Screen

As an authorized UK supplier of Snow Performance motorsport hardware, JP Racing offers direct access to authentic water-methanol injection components backed by fast UK delivery and expert technical assistance. Contact our team today for tailored system selection and advice.

Additional information

Weight 0.45 kg
Dimensions 10.16 × 12.7 × 15.24 cm

Frequently Asked Questions

The 1" extended tip allows the atomizing orifice to pass through thick intake manifold walls, throttle body spacers, or silicone couplers directly into the primary airstream, preventing fluid from pooling along the wall boundary.

The SNO-N0200EX nozzle is rated at 2.0 Gallons Per Hour (GPH), delivering approximately 126 ml/min under standard 150 PSI operating pressure. It is suited for lower horsepower applications or dual-nozzle staged arrangements.

Unscrew the rear assembly of the nozzle to remove the internal 100-micron stainless steel mesh screen. Clean the mesh with compressed air or a clean solvent to clear any particulate matter before reassembling.
