FITECH Ultimate LS 500 HP EFI System With Long Runner Cathedral Intake,Transmission Control & LS3 Coil Pack With LED Set

FITECH Ultimate LS 500 HP EFI System With Long Runner Cathedral Intake,Transmission Control & LS3 Coil Pack With LED Set

£2,568.37 Inc. VAT

SKU: FIT79007 Categories: , , Brand:

Description

Part Number: 79007

FiTech Ultimate LS 500 HP EFI System with Transmission Control

Complete self-learning fuel injection and electronic transmission control kit engineered for GM LS1, LS2, and LS6 cathedral port engines.

Key Features

  • ☑ Supports naturally aspirated GM LS engines up to 500 HP with cathedral port heads (LS1/LS2/LS6)
  • ☑ Integrated electronic transmission control for GM 4L60E, 4L65E, 4L70E, and 4L80E automatic transmissions
  • ☑ Tall high-runner intake manifold designed to clear standard GM truck accessory drive setups
  • ☑ Self-learning ECU with full color touchscreen handheld controller for easy tuning and data logging
  • ☑ Compatible with both 24X and 58X crank and camshaft position sensor triggers
  • ☑ Includes custom high-output smart LED coil pack set and plug-and-play wiring harness

Technical Specifications

Brand FiTech Fuel Injection
Manufacturer Part Number 79007
Engine Compatibility GM LS1 / LS2 / LS6 (Cathedral Port)
Max Horsepower Rating 500 HP
Transmission Control GM 4L60E / 4L65E / 4L70E / 4L80E
Crank / Cam Trigger Support 24X / 58X Reluctor Wheels
Throttle Body Size 92mm Billet Aluminum
Fuel Injector Rating 36 lbs/hr
Coil Pack Included Yes (Smart LED Coil Pack Set)

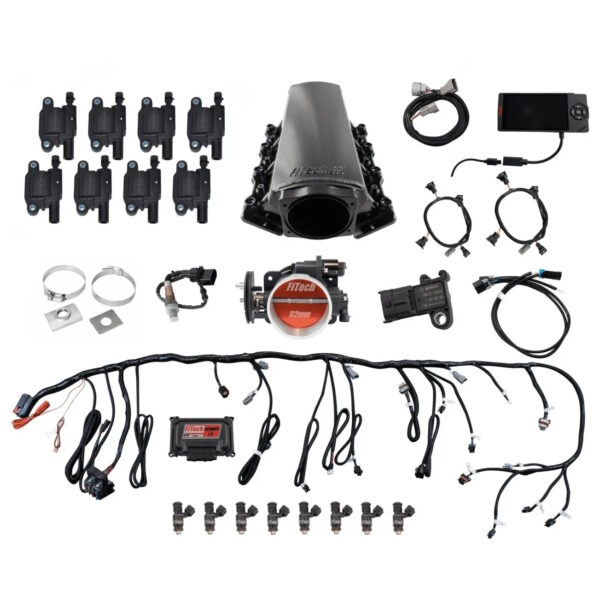

What’s Included in the Box

  • High-Runner Cathedral Port Fabricated Intake Manifold
  • 92mm Billet Aluminum Throttle Body
  • 36 lbs/hr High-Flow Fuel Injectors & Billet Fuel Rails
  • Self-Learning ECU & Touchscreen Handheld Controller with Windshield Mount
  • Complete Plug-and-Play Wiring Harness & Sensors (MAP, CTS, TPS, IAC, O2)
  • GM Electronic Transmission Control Harness
  • High-Output LED Coil Pack Set with Mounting Hardware

FiTech Fuel Injection delivers market-leading EFI performance and retro-fit convenience. Designed for straightforward bolt-on installation, the Ultimate LS system modernises classic muscle cars, kit cars, and swap projects. When purchased through JP Racing, you benefit from official product authenticity, technical support, and fast UK dispatch.

Additional information

Weight 38 kg
Dimensions 28 × 16 × 10 cm

Frequently Asked Questions

The FiTech 79007 Ultimate LS kit includes integrated electronic transmission control compatible with GM 4L60E, 4L65E, 4L70E, and 4L80E automatic transmissions. Shift points, line pressure, and lockup behavior can be configured directly through the included handheld touchscreen controller.

The tall intake manifold on the 79007 kit is specifically designed to clear GM truck accessory drives, including water pump and alternator brackets. Because the intake height is approximately 7 inches from the top of the block, mock-up hood clearance testing with clay or putty is recommended for low-slung car chassis.

Yes, the FiTech ECU automatically supports both 24X and 58X crank trigger patterns as well as 1X and 4X camshaft signals. You simply select your reluctor pattern during the initial handheld setup wizard.
