Description
Part Number: 1440

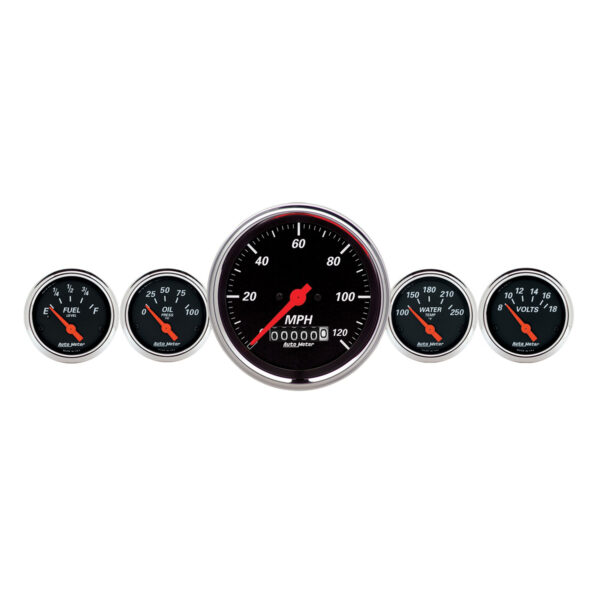

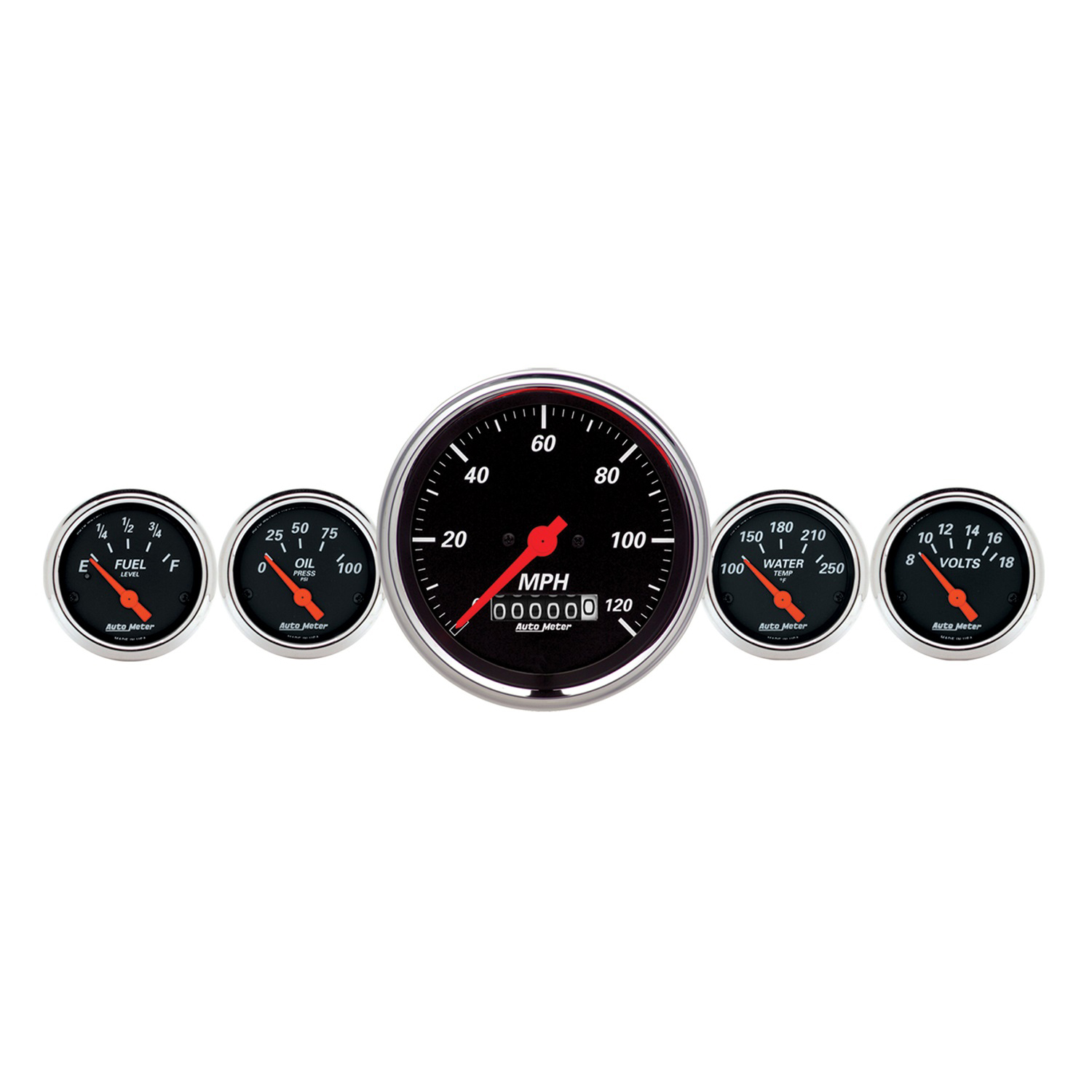

AutoMeter Designer Black 5-Piece Electric Gauge Kit
Bring classic hot rod styling and race-proven electric accuracy to your vehicle with the AutoMeter 1440 Designer Black 5-gauge instrumentation package.
Key Features
- ☑ Classic Designer Black aesthetic with clear domed lenses, black dial faces, and chrome bezels
- ☑ 3-3/8″ 0-120 MPH programmable electric speedometer with rolling drum odometer
- ☑ Includes four 2-1/16″ electric auxiliary gauges: Water Temp, Oil Pressure, Fuel Level, and Voltmeter
- ☑ Race-proven air-core electric gauge movements isolate hazardous fluids from the driver compartment
- ☑ Traditional incandescent perimeter lighting provides glare-free night readability
- ☑ Simple push-button 2-mile drive speedometer calibration without dip switches
- ☑ Fully compatible with 12V and 16V automotive electrical systems
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Manufacturer Part Number | 1440 |
| Gauge Series | Designer Black |
| Speedometer Diameter & Range | 3-3/8″ (85.7mm) | 0-120 MPH |
| Auxiliary Gauge Diameter | 2-1/16″ (52.4mm) |
| Fuel Level Gauge Range | 240 Ohms Empty / 33 Ohms Full |
| Oil Pressure Gauge Range | 0-100 PSI |
| Water Temp Gauge Range | 100-250°F |
| Voltmeter Range | 8-18 Volts |
| Bezel Style | Chrome Street Rod Bezel |
| Pointer Color | Fluorescent Red |
| Lighting Type | White Incandescent Perimeter Lighting |
What’s Included in the Box
- 1x 3-3/8″ Electric Speedometer (0-120 MPH)
- 1x 2-1/16″ Water Temperature Gauge
- 1x 2-1/16″ Oil Pressure Gauge
- 1x 2-1/16″ Fuel Level Gauge (240E/33F)
- 1x 2-1/16″ Voltmeter (8-18V)
- 1x Electric Speed Sender (5293 2-wire Hall-Effect)
- 1x Fuel Level Sending Unit (3262 240E/33F)
- 1x Oil Pressure Sender (2242)
- 1x Water Temperature Sender (2258)
- 1x NPT Adapter Fitting Kit (1/8″ NPT to 1/4″, 3/8″, 1/2″ NPT & 7/8″-18 thread adapter)
- Mounting Brackets & Installation Hardware
Engineered for hot rods, custom restorations, and motorsport builds, the AutoMeter 1440 gauge set offers high-accuracy monitoring paired with iconic design. At JP Racing, we supply complete original AutoMeter kits with expert UK tech support and swift nationwide delivery.
