MEZIERE 4.37" CO2 Bottle Clamp, Polished

MEZIERE 4.37″ CO2 Bottle Clamp, Polished

£67.00 Inc. VAT

SKU: MEZBC3437 Categories: , , Brand:

Description

Part Number: BC3437

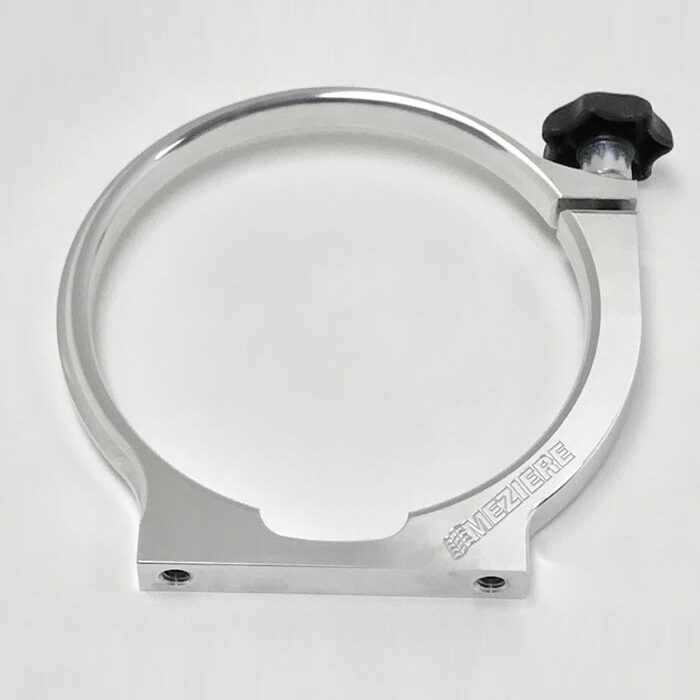

Meziere 4.375″ Billet Aluminum Bottle Clamp

Engineered for high-vibration motorsport environments, the Meziere BC3437 billet aluminum bottle clamp offers rock-solid mounting for 4.375″ outer diameter CO2, nitrous, and air bottles.

Key Features

  • ☑ Precision-machined CNC billet aluminum construction for ultimate strength and durability
  • ☑ Engineered specifically for bottles and tanks with a 4.375″ (4-3/8″) outer diameter
  • ☑ Flat bottom mounting face with 1/4″-20 threaded holes and 2.63″ bolt spacing
  • ☑ Protective clear anodized finish resists corrosion and harsh race environment fluids
  • ☑ Fast mounting hardware included for quick installation on roll cages or chassis brackets

Technical Specifications


Brand Meziere Enterprises
Manufacturer Part Number BC3437
Bottle Outer Diameter 4.375″ (4-3/8″) / 111.1mm
Material CNC Billet Aluminum
Finish Clear Anodized
Mounting Type Flat Bottom Base
Thread Size 1/4″-20 Threaded Mounting Holes
Bolt Hole Spacing 2.63″ Center-to-Center
Quantity Sold Each (2 Recommended Per Bottle)

What’s Included in the Box

  • 1x Meziere BC3437 Billet Aluminum Bottle Clamp (4.375″ ID)
  • 1x Stainless Steel Hardware Mounting Kit

Meziere Enterprises is legendary across drag racing and circuit motorsport for uncompromised engineering and finish quality. Built to withstand extreme g-forces and engine vibrations, the BC3437 clamp ensures your air or CO2 bottle remains safely fastened in the pitlane and on the track. Order directly from JP Racing, your premier UK high-performance motorsport parts specialist, featuring rapid UK dispatch and expert technical advice.

Additional information

Weight 0.5 kg

Frequently Asked Questions

The Meziere BC3437 clamp is specifically machined for bottles and cylinders with a 4.375" (4-3/8") outer diameter. This standard diameter is typically found on 2.5 lb CO2 tanks, air shifter bottles, and select small nitrous bottles.

Meziere recommends using two BC3437 clamps per bottle for secure dual-point mounting. This prevents bottle twisting or movement under high acceleration, heavy braking, or severe motorsport vibration. Note that clamps are sold individually.

The BC3437 features a flat-bottom base with 1/4"-20 threaded holes spaced 2.63" center-to-center. It can be bolted directly to flat aluminum/steel mounting tabs on your chassis, or paired with Meziere roll bar tube clamps (such as MEZ-BC0162) to attach directly onto roll cage tubing.
