Description
Part Number: 13194

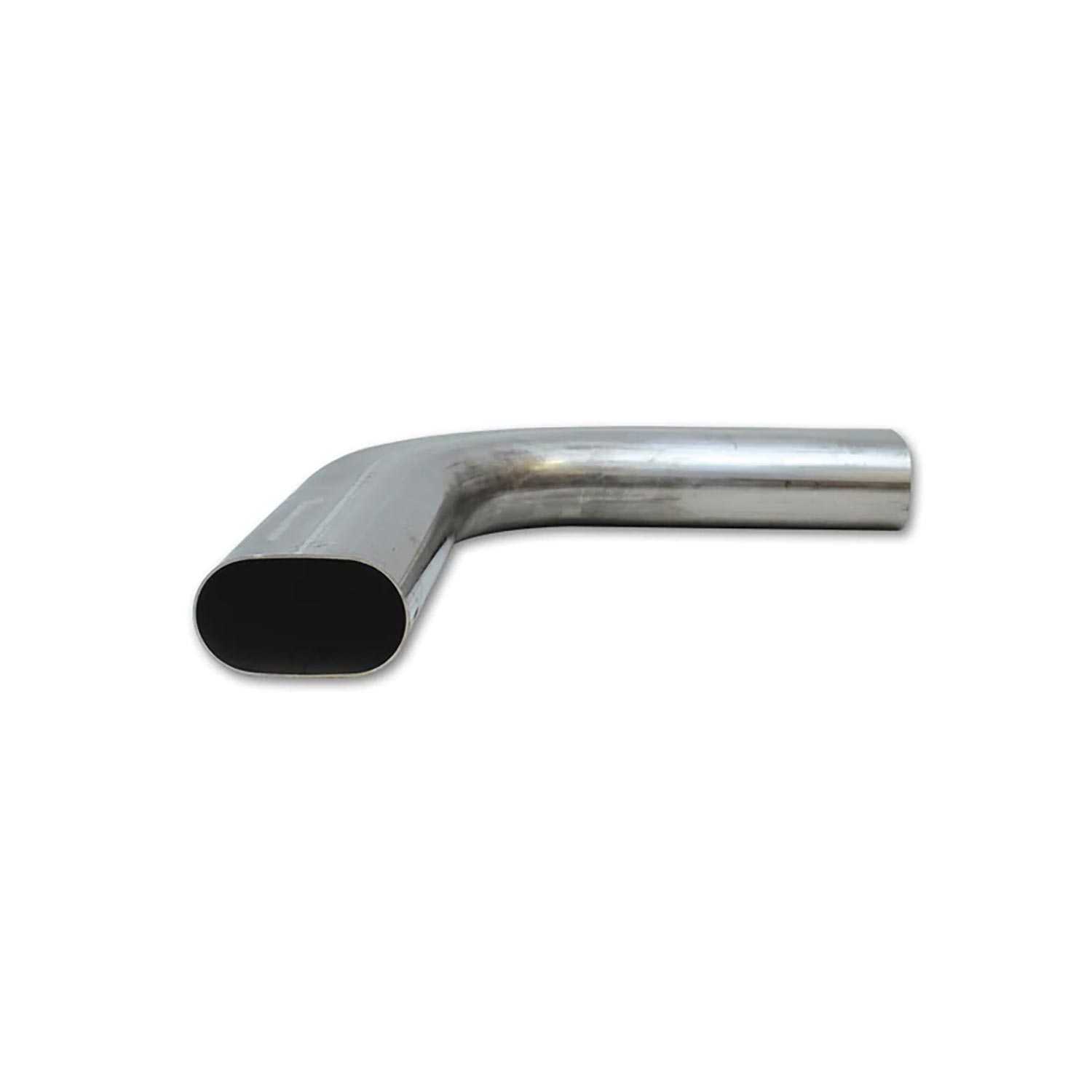

Vibrant Performance 3.5″ Nominal 90° Horizontal Oval T304 Stainless Steel Mandrel Bend
Engineered specifically for low ground-clearance exhaust systems and tight chassis packaging where standard round tubing creates unwanted restriction or contact.
Key Features
- ☑ High-grade T304 stainless steel construction for maximum acidic and thermal corrosion resistance
- ☑ Smooth 90-degree horizontal mandrel bend maintains internal cross-sectional area
- ☑ 3.5″ nominal tube size with 2.375″ x 4.125″ profile for optimal chassis clearance
- ☑ Uniform 16-gauge (0.065″) wall thickness for clean TIG welding and structural integrity
- ☑ Dual 6.00″ straight leg lengths for flexible cutting, trimming, and alignment
- ☑ Backed by Vibrant Performance 5-Year Limited Warranty
Technical Specifications
| Brand | Vibrant Performance |
|---|---|
| Part Number | 13194 |
| Nominal Tube Size | 3.5″ (89.0mm) |
| Inlet / Outlet Dimensions | 2.375″ x 4.125″ (60.3mm x 104.8mm) |
| Bend Angle | 90 Degrees (Horizontal Oval) |
| Center Line Radius (CLR) | 5.250″ (133.4mm) |
| Leg / Straight Length | 6.000″ (152.4mm) each side |
| Wall Thickness | 16 Gauge (0.065″ / 1.6mm) |
| Material | T304 Stainless Steel |
| Surface Finish | Raw Finish |
What’s Included in the Box
- 1x Vibrant Performance 90° Oval Stainless Steel Mandrel Bend (Part Number: 13194)
Vibrant Performance is trusted worldwide by motorsport fabricators and professional race teams for precision exhaust components. Supplied directly in the UK by JP Racing, every part is backed by rapid despatch, expert technical support, and authentic manufacturer quality assurance.
