VIBRANT PERFORMANCE 4 into 1 Turbo Manifold Merge Collector (T3 & T3/T4) - 4 UP STYLE

VIBRANT PERFORMANCE 4 into 1 Turbo Manifold Merge Collector (T3 & T3/T4) – 4 UP STYLE

£123.68 Inc. VAT

SKU: VIB2451 Categories: , , Brand:

Description

Part Number: 2451

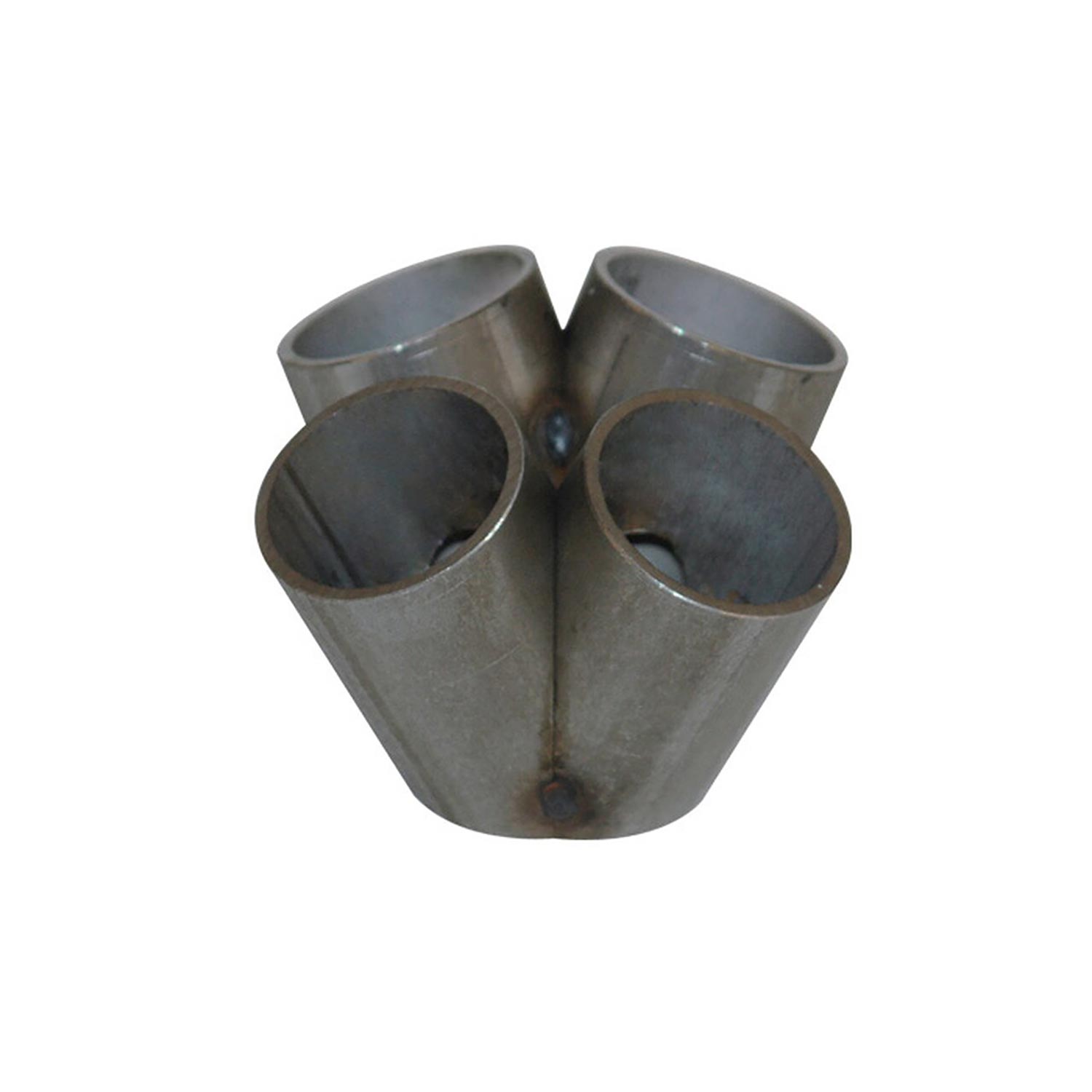

Vibrant Performance 4-into-1 Turbo Manifold Merge Collector

Engineered for fabricators building high-flow T3 and T3/T4 turbo manifolds requiring extreme wall strength and optimized exhaust scavenging.

Key Features

  • ☑ Constructed from heavy-duty Schedule 10 304 stainless steel pipe
  • ☑ Precision 3D laser-cut merge design maximizes exhaust flow efficiency
  • ☑ Tack-welded assembly allowing fabricators easy alignment adjustments before final TIG welding
  • ☑ Designed for 4-into-1 configurations utilizing 1-7/8″ primary tubing
  • ☑ Compact 3″ tall 4-up style collector ideal for T3 and T3/T4 turbo flange transition

Technical Specifications

Brand Vibrant Performance
MPN 2451
Collector Type 4-into-1 Turbo Merge Collector
Material 304 Stainless Steel (Schedule 10)
Primary Pipe Size 1-7/8″ Outside Diameter
Collector Height 3″ (4-Up Style)
Turbo Flange Application T3 / T3/T4 Inlet

What’s Included in the Box

  • 1x Vibrant Performance 4-into-1 Schedule 10 Stainless Steel Merge Collector (PN 2451)

Vibrant Performance components are trusted worldwide by professional motorsport fabricators for race-proven durability. When ordering from JP Racing, you benefit from genuine stock and fast UK dispatch.

Additional information

Weight 0.64 kg

Frequently Asked Questions

The Vibrant 2451 collector is fabricated using Schedule 10 304 stainless steel pipe, providing exceptional structural durability and heat retention for demanding forced-induction applications.

No, the assembly is tack-welded at the factory. This deliberate design allows custom fabricators to easily break tacks and adjust runner angles or fitment during mock-up before final TIG welding.

Part 2451 accepts 1-7/8" OD primary pipes in a 4-into-1 design and features a 3" tall 4-up exit, making it ideal for fabricating custom T3 and T3/T4 turbocharger manifolds.
