Description
Part Number: 19877

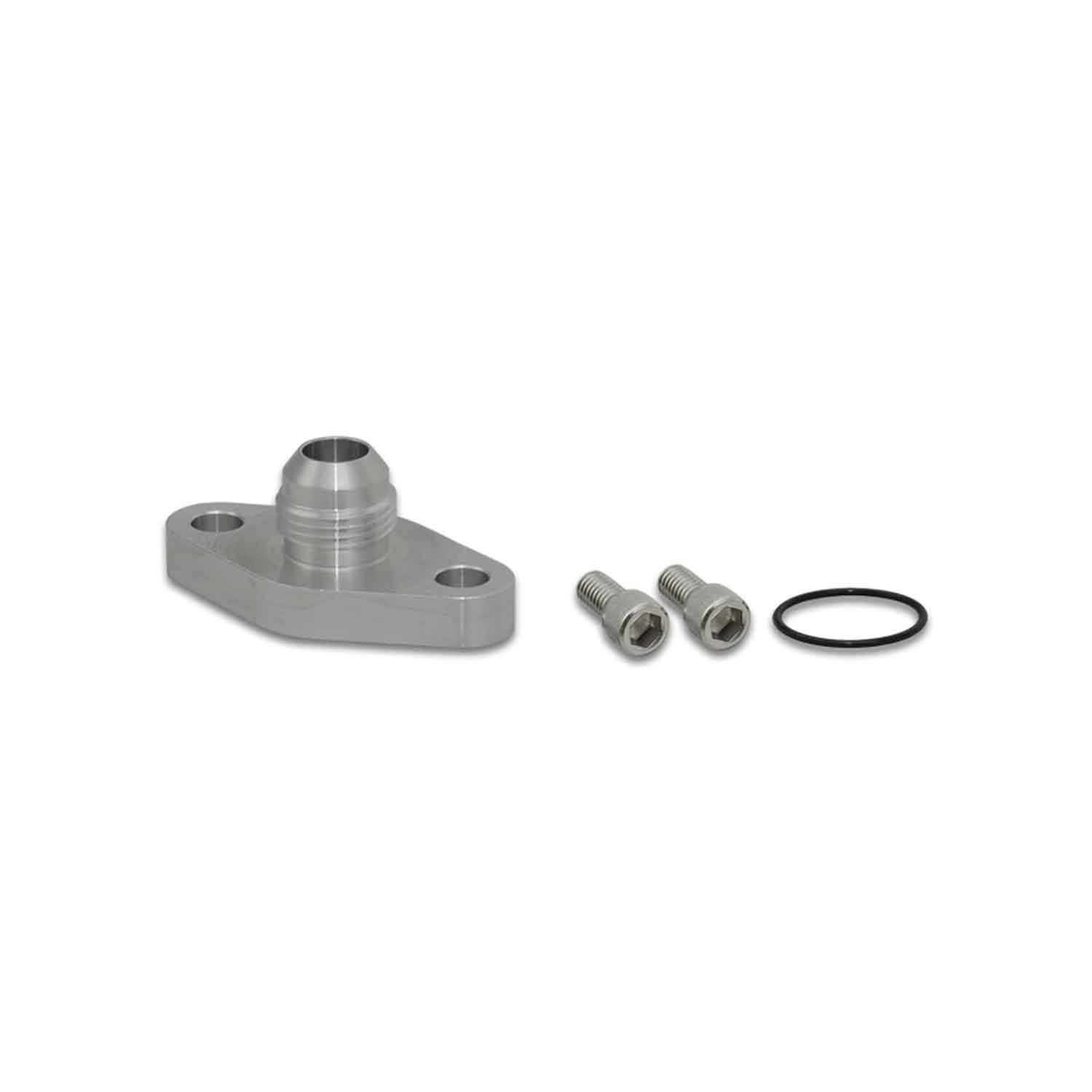

Vibrant Performance Billet Aluminum Turbo Oil Drain Flange (-10AN Male)
Precision CNC-machined 6061 billet aluminum oil drain flange engineered with an integrated -10AN male flare outlet for high-reliability turbocharger oil return plumbing.
Key Features
- ☑ Precision CNC-machined from lightweight T6061 billet aluminum
- ☑ Integrated -10AN male flare outlet for high-flow return line routing
- ☑ Standard 2.000″ (50.8mm) bolt hole center-to-center mounting spacing
- ☑ Machined O-ring recess supplied with high-temp sealing O-ring
- ☑ Compatible with Garrett GT37, GT40, GT42, GT45, GT47, GT50, GT55, and T3/T4 turbos
Technical Specifications
| Brand | Vibrant Performance |
|---|---|
| Manufacturer Part Number | 19877 |
| Material | T6061 Billet Aluminum |
| Outlet Fitting | -10AN Male Flare |
| Bolt Spacing (Center to Center) | 2.000″ (50.8mm) |
| Bolt Hole Diameter | 0.322″ (8.18mm) |
| Flange Thickness | 0.393″ (10mm) |
Additional information
| Weight | 0.1 kg |
|---|
Frequently Asked Questions
This flange features a 2.000" (50.8mm) bolt hole center-to-center spacing. It is directly compatible with Garrett GT37, GT40, GT42, GT45, GT47, GT50, GT55 series, BorgWarner S200, S300, S400, S500 units, and standard T3/T4 turbo housings requiring a 2.0" drain pattern.
The flange features an integrated -10AN male flare outlet, enabling direct connection of female -10AN hose ends without needing supplementary adapter fittings.
No paper gasket or RTV sealant is required. The flange includes a high-temperature sealing O-ring that seats inside the machined groove on the flange mating face to ensure a reliable leak-free seal.
