Part Number: 1302-M

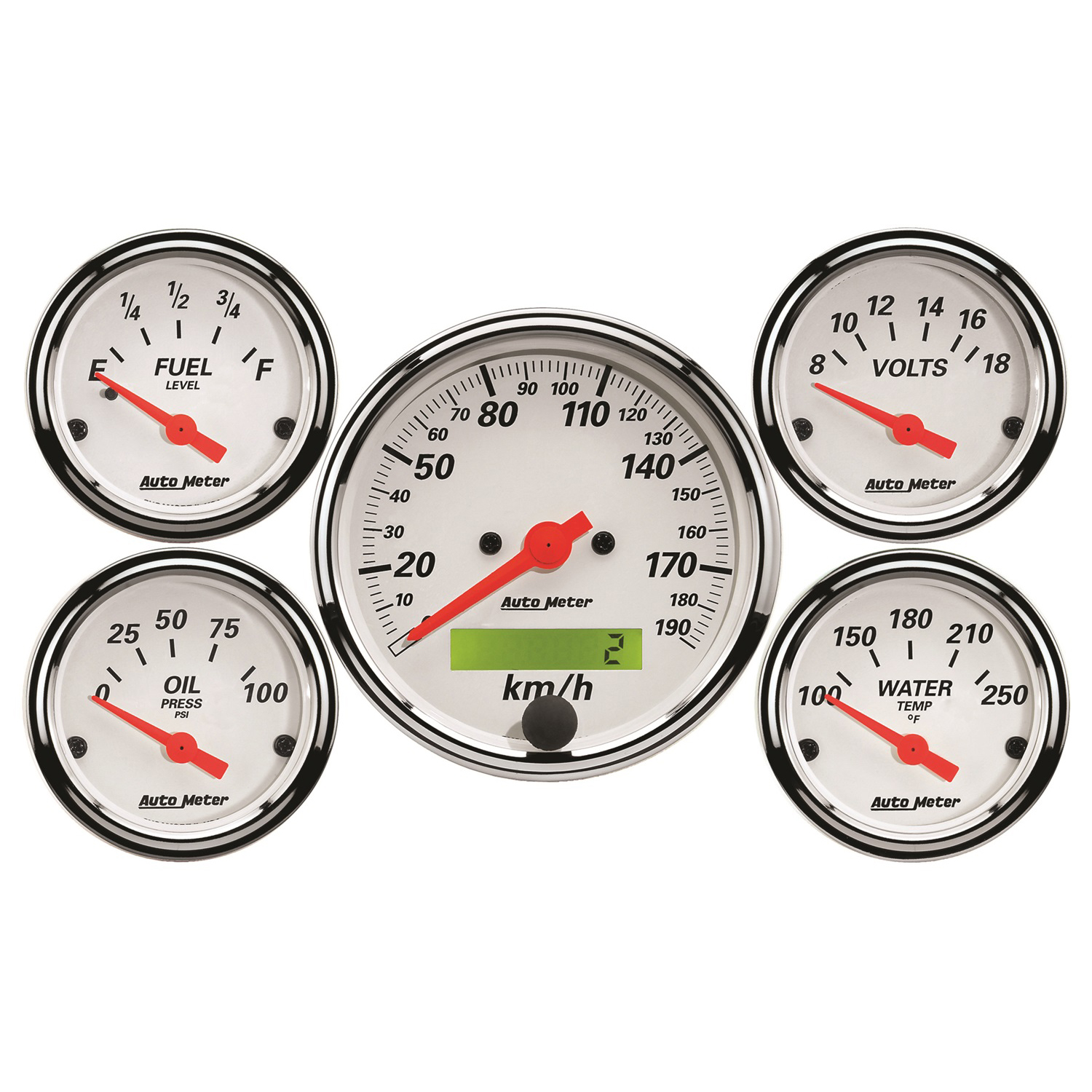

AutoMeter Arctic White 5-Piece Gauge Kit with Electric KM/H Speedometer

Classic American street-rod styling meets modern electric precision in the AutoMeter Arctic White 5-Gauge Instrument Cluster Set.

Key Features

☑ Complete 5-gauge kit featuring Arctic White dials, crisp black graphics, and polished chrome bezels.
☑ Includes 3-1/8″ (80mm) electric push-button calibrated KM/H speedometer and four 2-1/16″ (52.4mm) auxiliary gauges.
☑ Classic domed glass lens design with red and green bulb covers for customized night illumination.
☑ Race-proven air-core electric movement ensures precise readings and isolates hazardous engine fluids from the cabin.
☑ Complete sender package included: speed sensor, oil pressure sender, water temperature sender, and fuel level sender.

Technical Specifications

Brand	AutoMeter
MPN	1302-M
Gauge Series	Arctic White
Speedometer Range	Electric KM/H Speedometer (3-1/8″)
Auxiliary Gauges	Water Temp, Oil Press, Voltmeter (8-18V), Fuel Level (240E/33F)
Bezel / Lens	Polished Chrome Bezel / Classic Domed Lens
Lighting	Traditional Perimeter Incandescent with Red/Green Covers

What’s Included in the Box

3-1/8″ Electric KM/H Speedometer
2-1/16″ Short-Sweep Electric Oil Pressure Gauge & 1/8″ NPT Sender
2-1/16″ Short-Sweep Electric Water Temperature Gauge & 1/8″ NPT Sender
2-1/16″ Short-Sweep Electric Voltmeter (8-18V)
2-1/16″ Short-Sweep Electric Fuel Level Gauge (240E/33F Sender Included)
2-Wire Hall-Effect Speed Sensor (7/8″-18 THD) & Adapter Bushings (1/4″, 3/8″, 1/2″ NPT)
Bulb & Socket Assemblies with Red & Green Lens Covers
Mounting Hardware & Mounting Brackets

Engineered for hot rods, muscle cars, and custom builds, AutoMeter’s Arctic White series offers unmatched reliability and timeless aesthetic appeal. As an authorized UK supplier, JP Racing provides genuine AutoMeter products backed by fast UK dispatch and dedicated technical support for your build.

Additional information

Weight	2.2 kg
Dimensions	11.43 × 45.09 × 22.23 cm

Frequently Asked Questions

The electric speedometer features AutoMeter's simple push-button calibration system. Drivers calibrate the gauge by driving a measured 2-kilometre distance and pressing the button, removing the need for dipswitches or cable changes when altering wheel diameter or differential ratios.

The fuel level gauge operates on a standard 240 Ohm Empty / 33 Ohm Full resistance calibration range. A matching universal fuel tank sender (AutoMeter 3262) is included in the kit for easy custom installation.

Yes, the kit includes a 2-wire Hall-effect speed sender featuring standard 7/8"-18 THD threads, making it directly compatible with mechanical speedometer take-off points found on most classic transmissions.
