Description
Part Number: 5750

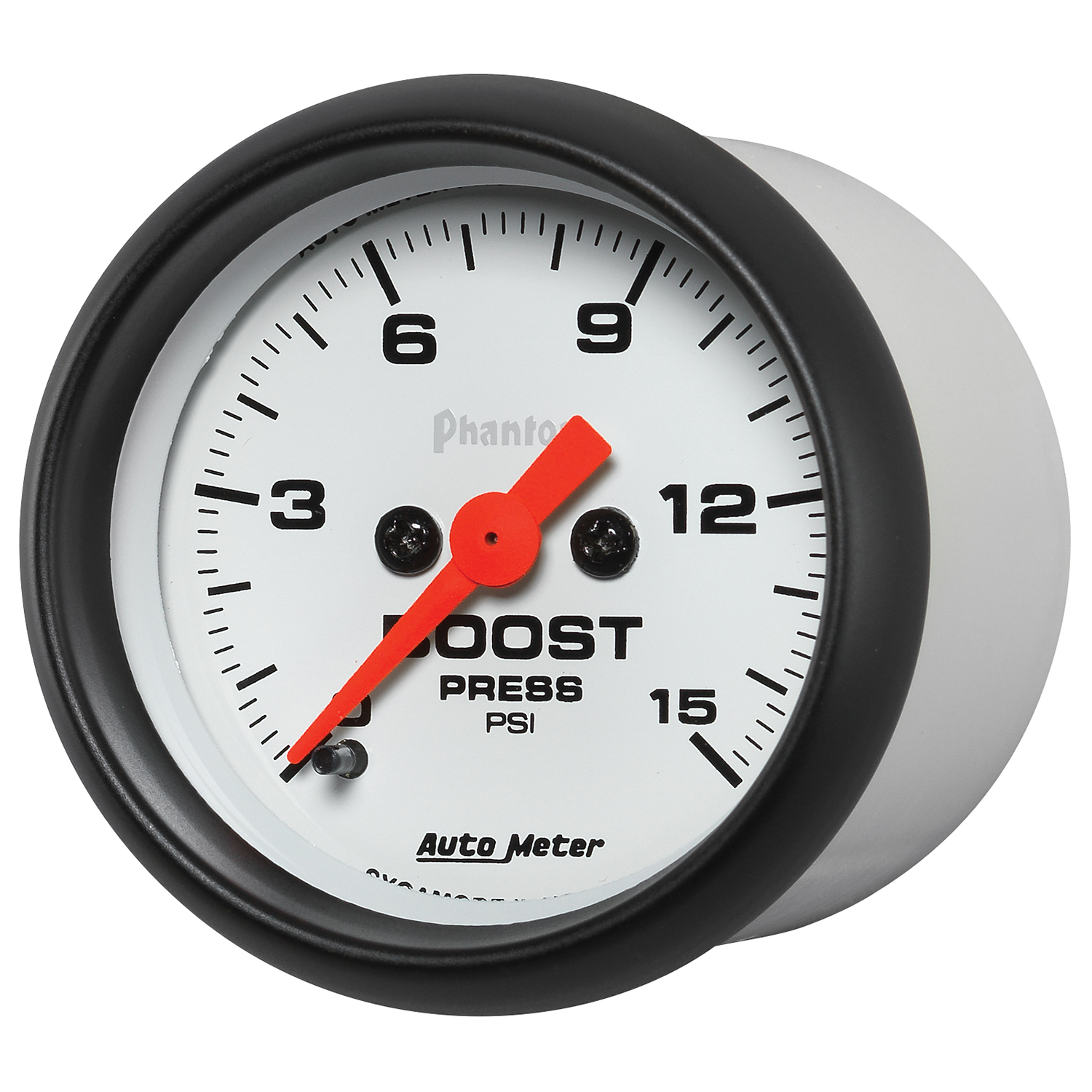

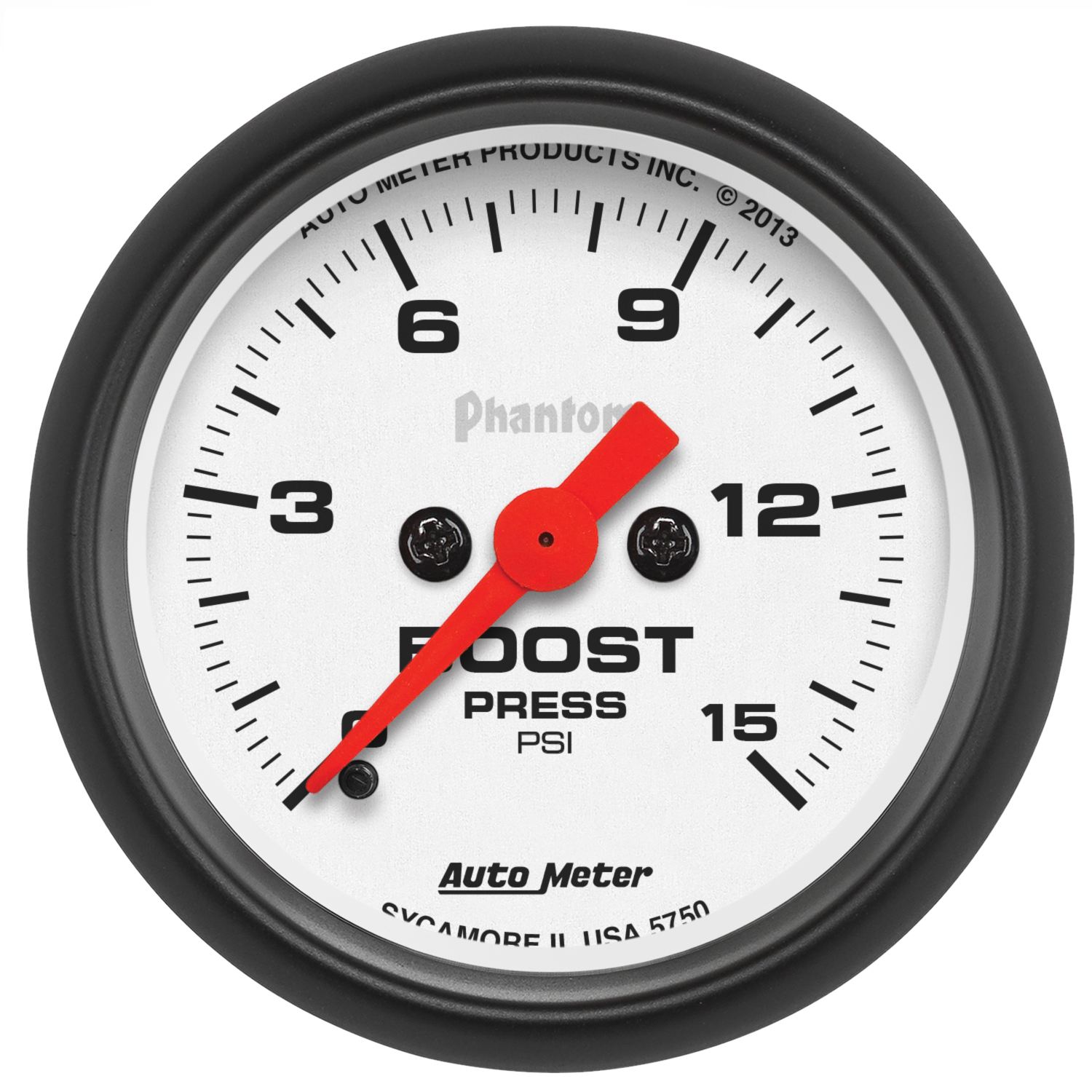

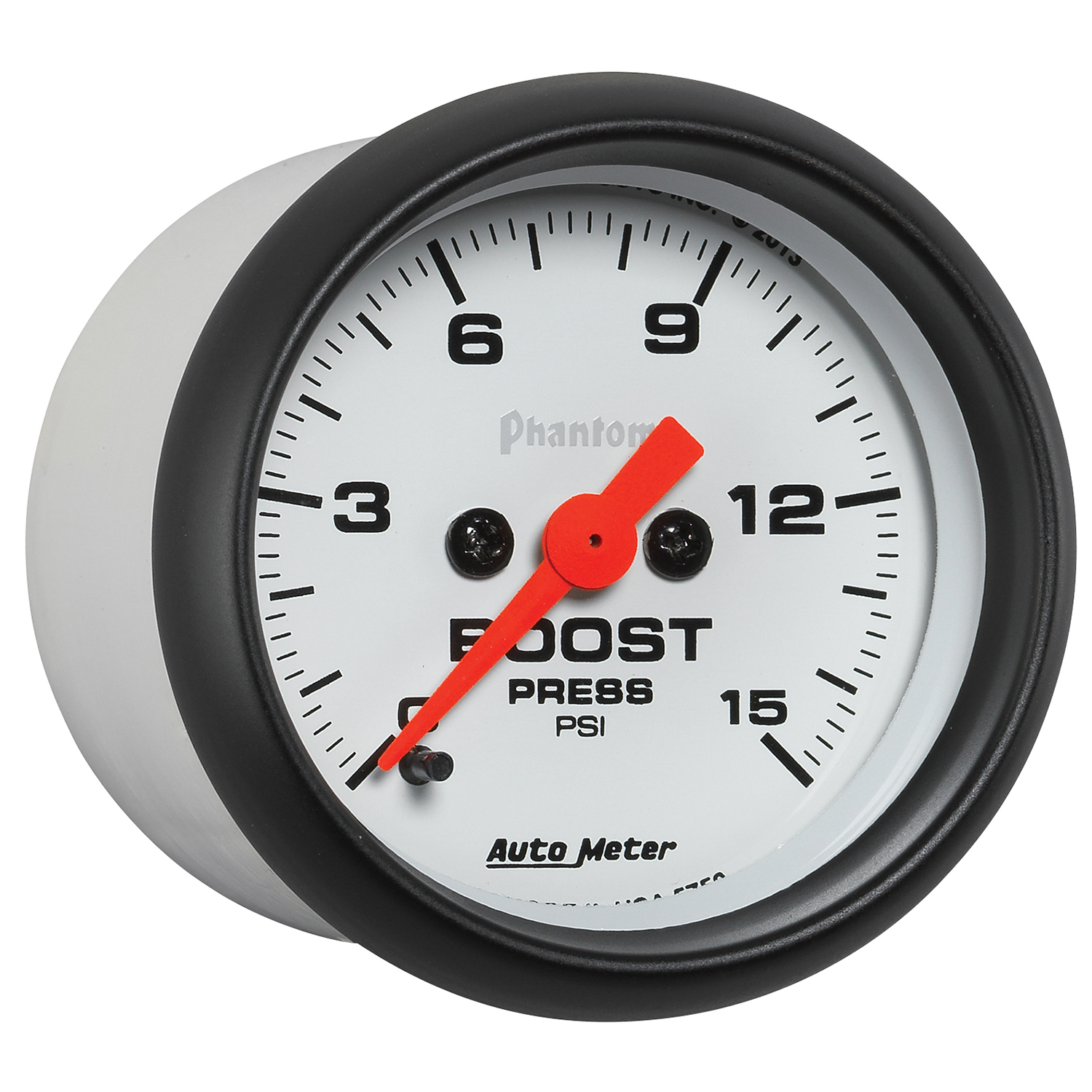

AutoMeter Phantom 2-1/16″ Digital Stepper Motor Boost Gauge (0-15 PSI)
Engineered for precision forced induction monitoring, the AutoMeter 5750 Phantom series boost gauge delivers unmatched digital stepper motor accuracy, rapid response times, and full data logging capability for performance street and motorsport setups.
Key Features
- ☑ Digital Stepper Motor Accuracy: High-precision electronic movement ensures smooth, instantaneous pointer reaction and extreme reliability under high vibration.
- ☑ Fluid & Fuel Isolation: External solid-state pressure transducer keeps hazardous fluids and high pressures safely outside the cabin.
- ☑ Data Logging Ready: Features an analog 0.5V to 4.5V output signal for seamless integration with modern ECU and standalone data acquisition systems.
- ☑ Auto Self-Calibration: Automatically performs a self-calibration sequence on power-up to ensure absolute zero-point accuracy.
- ☑ Classic Phantom Aesthetics: Clean white dial face with high-contrast black markings, fluorescent red pointer, and perimeter incandescent illumination.
- ☑ Wide System Compatibility: Fully compatible with 12V and 16V street and race car electrical systems.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Manufacturer Part Number | 5750 |
| Gauge Series | Phantom |
| Gauge Size | 2-1/16″ (52.4mm) |
| Pressure Range | 0 – 15 PSI |
| Gauge Type | Electric Digital Stepper Motor Boost Gauge |
| Dial / Face Color | White |
| Bezel Style / Finish | Black Super Bezel |
| Pointer Color | Fluorescent Red |
| Lighting | White Incandescent (Includes Red & Green Covers) |
| Analog Output | 0.5V – 4.5V Data Logging Output |
What’s Included in the Box
- AutoMeter 5750 Phantom 2-1/16″ 0-15 PSI Boost Gauge
- 1/8″ NPT Stainless Steel Solid-State Pressure Transducer
- 1/4″ NPT Brass Adapter Fitting
- Dedicated Wiring Harness
- Bulb & Socket Assembly with Red and Green Bulb Covers
- Mounting Hardware & Gauge Retaining Bracket
AutoMeter is world-renowned for setting the benchmark in racing instrumentation and performance electronics. At JP Racing, we supply genuine AutoMeter gauges backed by technical expertise and fast UK dispatch. Keep your turbocharged or supercharged engine running safely at peak output with verified data from JP Racing.
