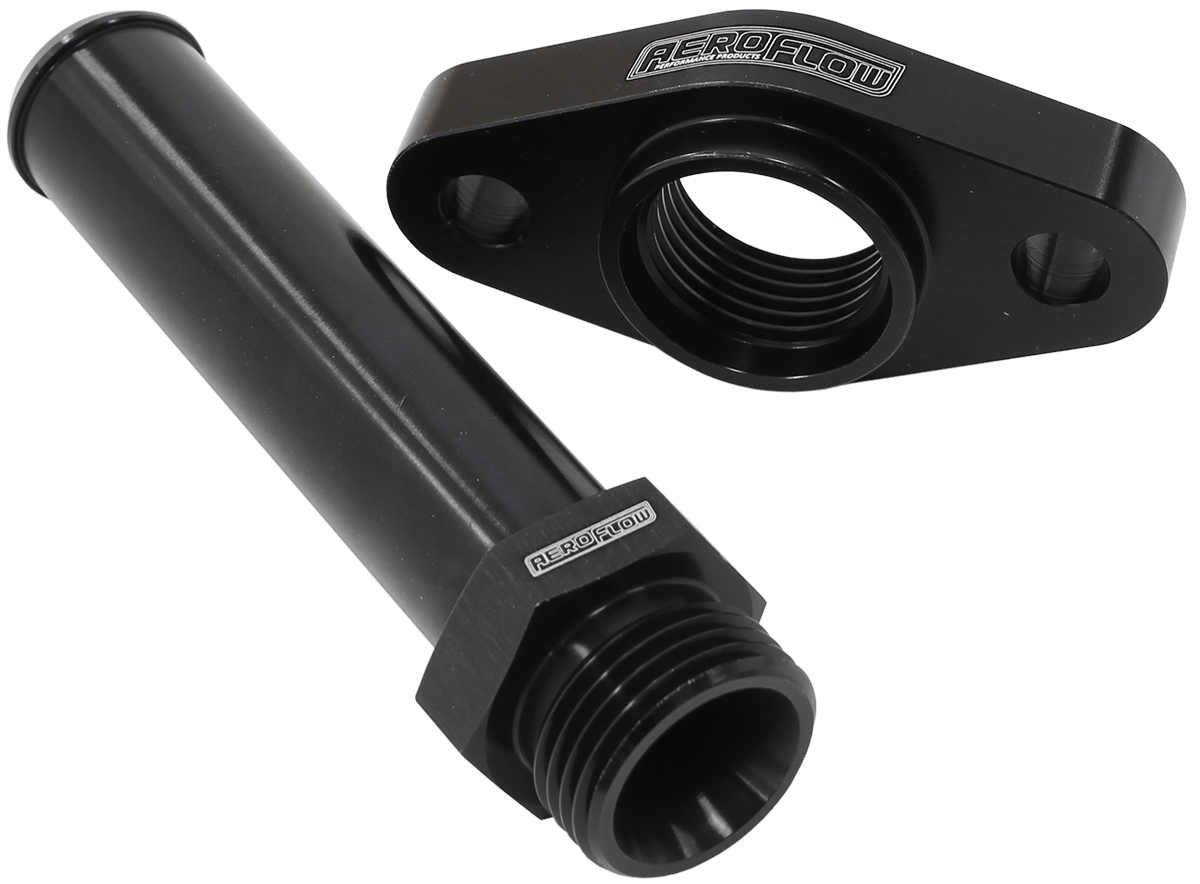

AEROFLOW TURBO DRAIN ADAPTER 19MM BARB 51MM CENTRE LENGTH 100MM

Description

AEROFLOW TURBO DRAIN ADAPTER 19MM BARB 51MM CENTRE LENGTH 100MM

AEROFLOW TURBO DRAIN ADAPTER 19MM BARB 51MM CENTRE LENGTH 100MM Turbo Drain AdaptorWith 100mm x 19mm Barb, 51mm Hole Centre. Black Finish.Turbo Oil Drain Adaptor With O-Ring Seal. 19mm Barb 4″ (100mm) long tube with 50.8mm hole centres to suit turbos with 50.8mm bolt centres on core. This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil for both bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the life of the hose. Overview Description: AEROFLOW TURBO DRAIN ADAPTER 19MM BARB 51MM CENTRE LENGTH 100MM Part Number: AF463-17 Supplier: Aeroflow Features/Specs Since 2010, Aeroflow Performance Products has grown to design and manufacture close to 11,000 exceptional quality products. Fittings and hoses, fuel system components, air and oil filters, oil systems, silicone hoses, fabricated tanks, alternators, workshop tools and much more. As a company, they have tried to lead the way for the Performance enthusiast. –> Aeroflow Website
