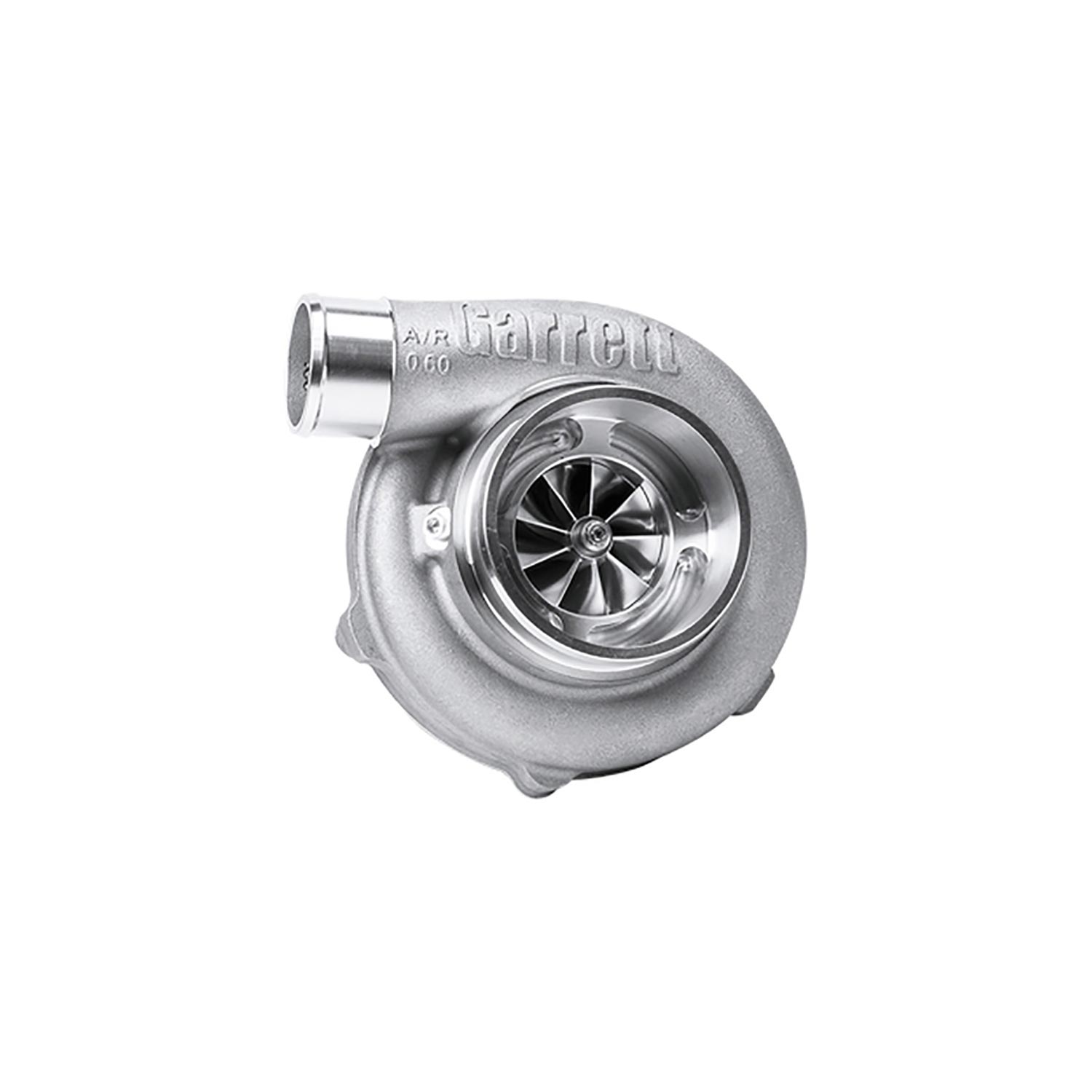

GARRETT 856802-5005S – GTX3076R Gen II Turbo Assembly Reverse Rotation 400-750HP

Description

GARRETT 856802-5005S – GTX3076R Gen II Turbo Assembly Reverse Rotation 400-750HP

Turbo GTX3076R Gen 2 Reverse RotationGen II Aero Comp Wheel for improved performance.Billet CNC machined Comp Wheel.Improved ported shroud design for surge resistance with new Compressor Housing aesthetics and integrated speed sensor port.Sold as Assembly Kits – Super Core plus Turbine HousingCompressor side: Trim 58 A/R 0.60Compressor Air Inlet: Hose 4″ (101.6mm)Compressor Air Outlet: Hose 2″ (50.8mm)Turbine side: Trim 84 A/R 0.83 V-band Inlet/V-band Outlet – Non wastegatedGarrett’s new GTX3076R GEN II Reverse Rotation Turbocharger. The GTX GEN II is the next evolution of our GTX line with major updates and new technology. Updates include a compressor wheel aero update that gives it the ability to produce up to 20% more horsepower than the previous version.
