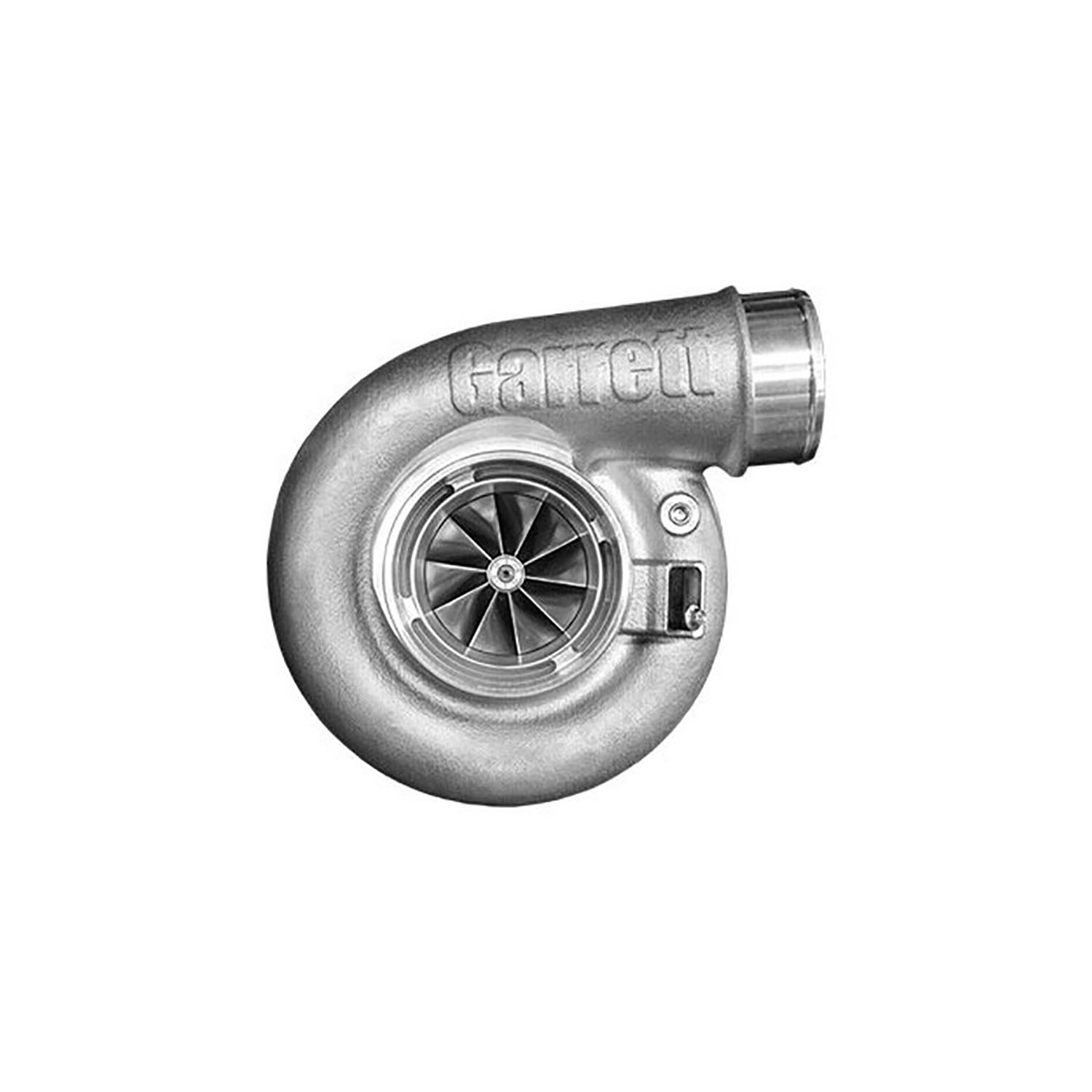

GARRETT 879779-5002S – G42-1200C Compact Turbo Assembly 475-1200HP

Description

GARRETT 879779-5002S – G42-1200C Compact Turbo Assembly 475-1200HP

Garrett G42-1200C Compact Turbo Assembly 475-1200HP – Turbine Housing V-Band/V-Band A/R 1.15Horsepower: 475 – 1200HPDisplacement: 2.0 – 7.0LGarrett G Series Compressor Aerodynamics (10 blades) for maximum HP. Fully machined Speed Sensor and pressure ports. Turbine Wheel Aero constructed of Inconel super alloy rated 950?C. Stainless Steel non wastegated turbine housing option capable of 950?C. Oil restrictor and water fittings included.Compressor side: Trim 65 A/R 0.90Compressor Air Inlet: Hose 4″ (101.6mm)Compressor Air Outlet: Hose 3″ (76.2mm)Turbine side: Trim 84 A/R 1.15 – Non dividedTurbine Inlet: V-Band 3.6″ (92mm)Turbine Outlet: V-Band 4.3″ (109mm)
