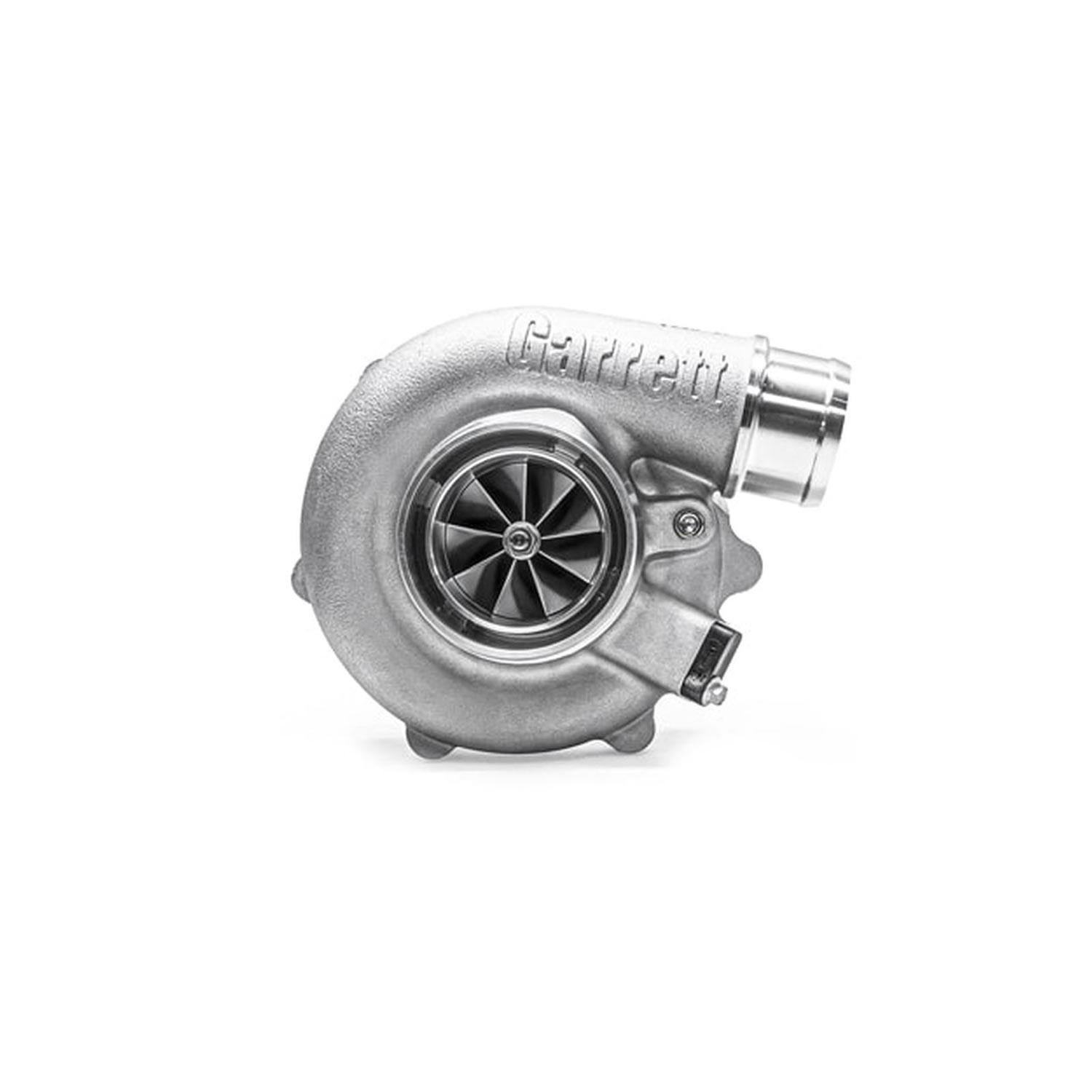

GARRETT 880698-5001S – Turbo G30-660 Reverse Rotation 350-660HP

Description

GARRETT 880698-5001S – Turbo G30-660 Reverse Rotation 350-660HP

Garrett Turbo G30-660 Reverse Rotation 350-660HP – Turbine Hsg A/R 0.61 V band/V band Horsepower: 350 – 660HPDisplacement: 1.4L – 3.0LGarrett G Series Compressor Aerodynamics for maximum HP. Fully machined Speed Sensor and pressure ports. New Turbine Wheel Aero constructed of MAR-M alloy rated 1055?C. Stainless Steel wastegated and non wastegated turbine housing option capable of 1050?C. Oil restrictor and water fittings included.Compressor side: Trim 65 A/R 0.72Compressor Air Inlet: Hose 3″ (76.2mm)Compressor Air Outlet: Hose 2″ (50.8mm)Turbine side: Trim 84 A/R 0.61 – Non wastegatedTurbine Inlet: V-Band 3″ (76.2mm) Non dividedTurbine Outlet: V-Band 3.55″ (90.17mm)Forged fully-machined compressor wheel and new aerodynamics increase maximum horsepower output and boost response. The CFD (computational fluid dynamics) engineered compressor wheel increases airflow up to 15% for 60mm and 30% for 67mm with 79-80% efficiency. (Compared to GTX GEN II) Compressor wheel features 9 blade count and wider compressor maps for a larger operating area.
