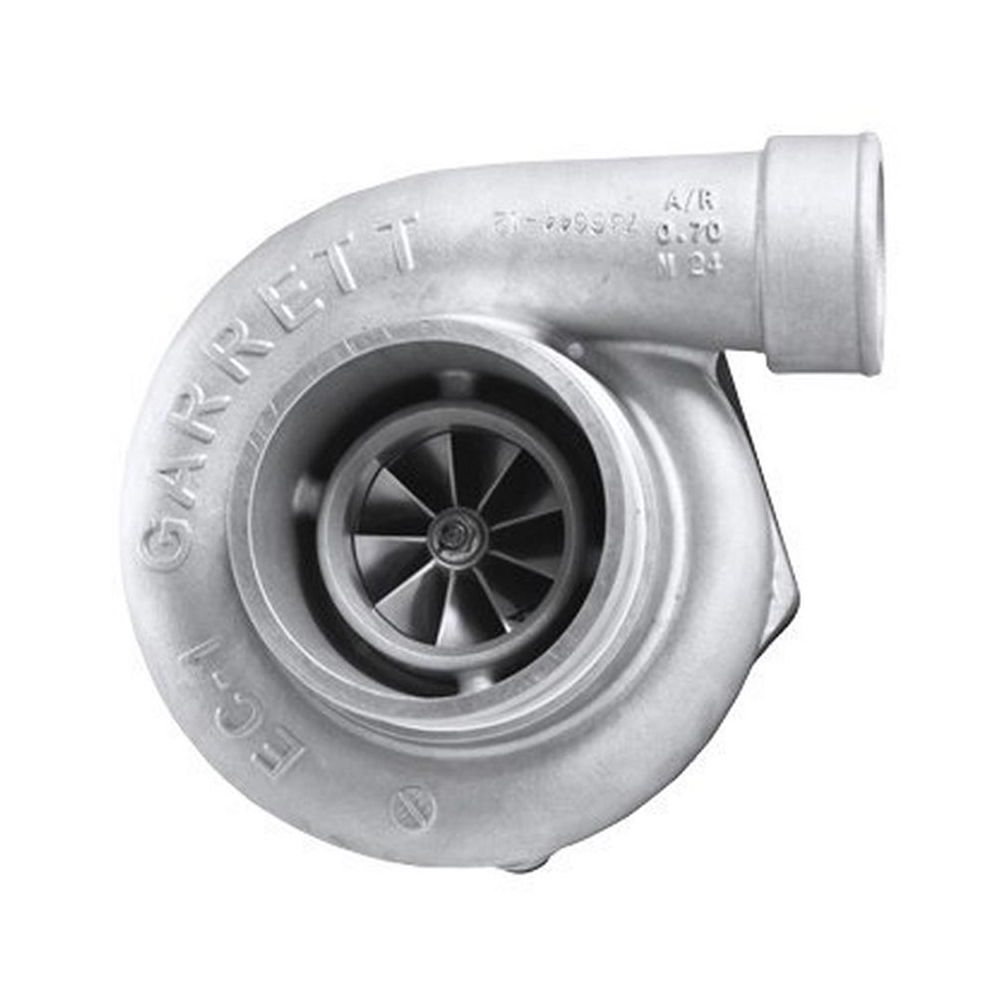

GARRETT GTW3884R 64mm Journal Bearing Super Core Turbo 450-950HP 2-6L
GARRETT GTW Series Turbochargers: GTW3884R 64MM
Garrett GTW Series Turbochargers were designed to provide budget-minded enthusiasts with a high-performing mid frame product offering available in ball bearing and journal bearing options.
The fully-machined billet aluminum compressor wheels provide optimal horsepower range and boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A lightweight aluminum backplate comes standard on all GTW turbochargers and reduces overall weight.
The water cooled CHRA keeps housing temperatures to a minimum. The GTW3476 and GTW3884 turbine wheels are constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. The GTW is a cost effective option for enthusiasts looking to turbocharge their vehicles.
Specifications
Horsepower: 450 – 950
Displacement: 2.0L – 6.0L
Features
Ported shroud design for surge resistance
Available in 62mm, 64mm and 67mm compressor options
Available in both journal bearing and ball bearing options
Forged, fully-machined billet compressor wheel
Inconel super-alloy turbine wheel
Lightweight aluminium backplate
Super Core Reference Data
Super Core P/N: 841297-5004S
CHRA P/N: 715582-0009

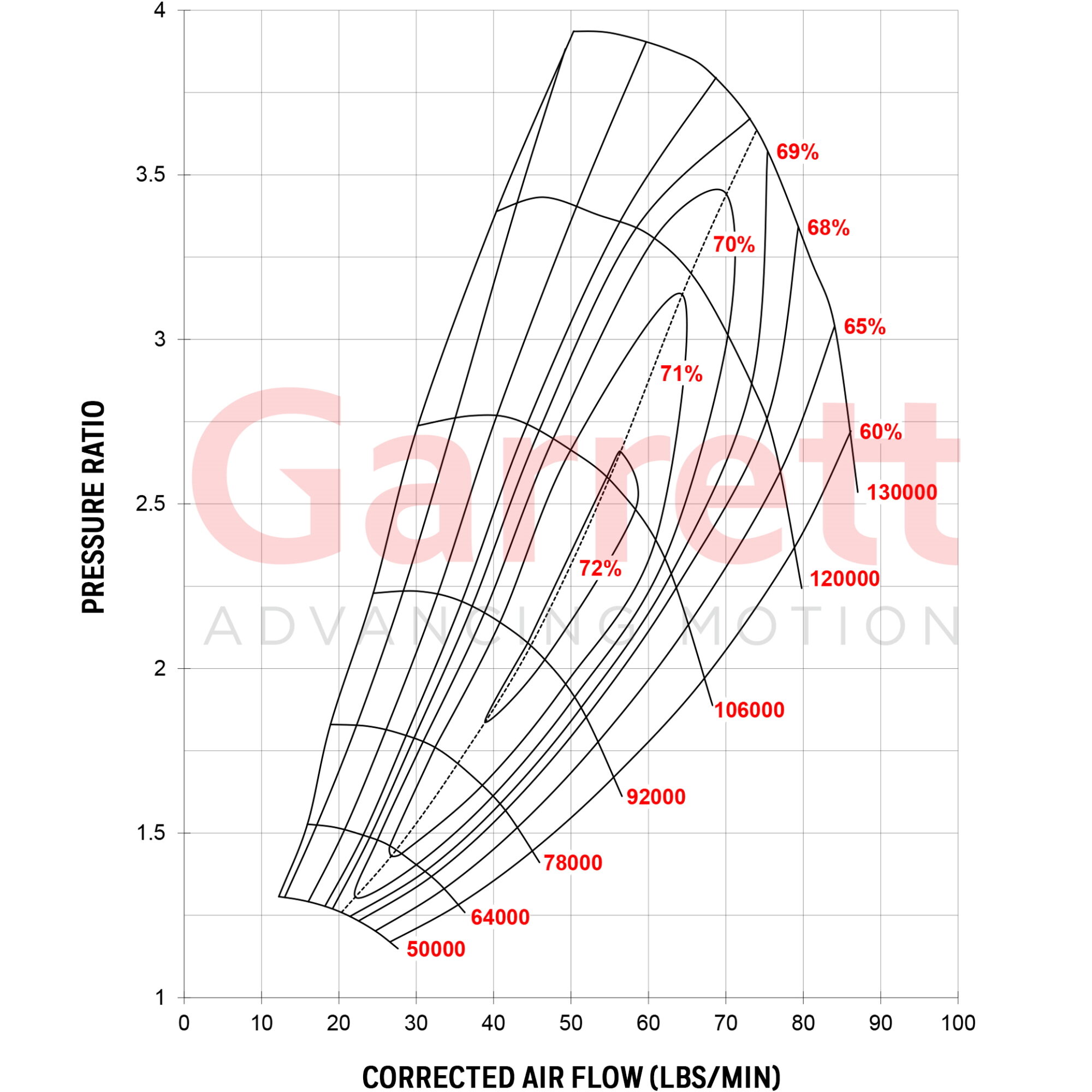

Compressor
Inducer: 64mm
Exducer: 84mm
Trim: 58
A/R: 0.70

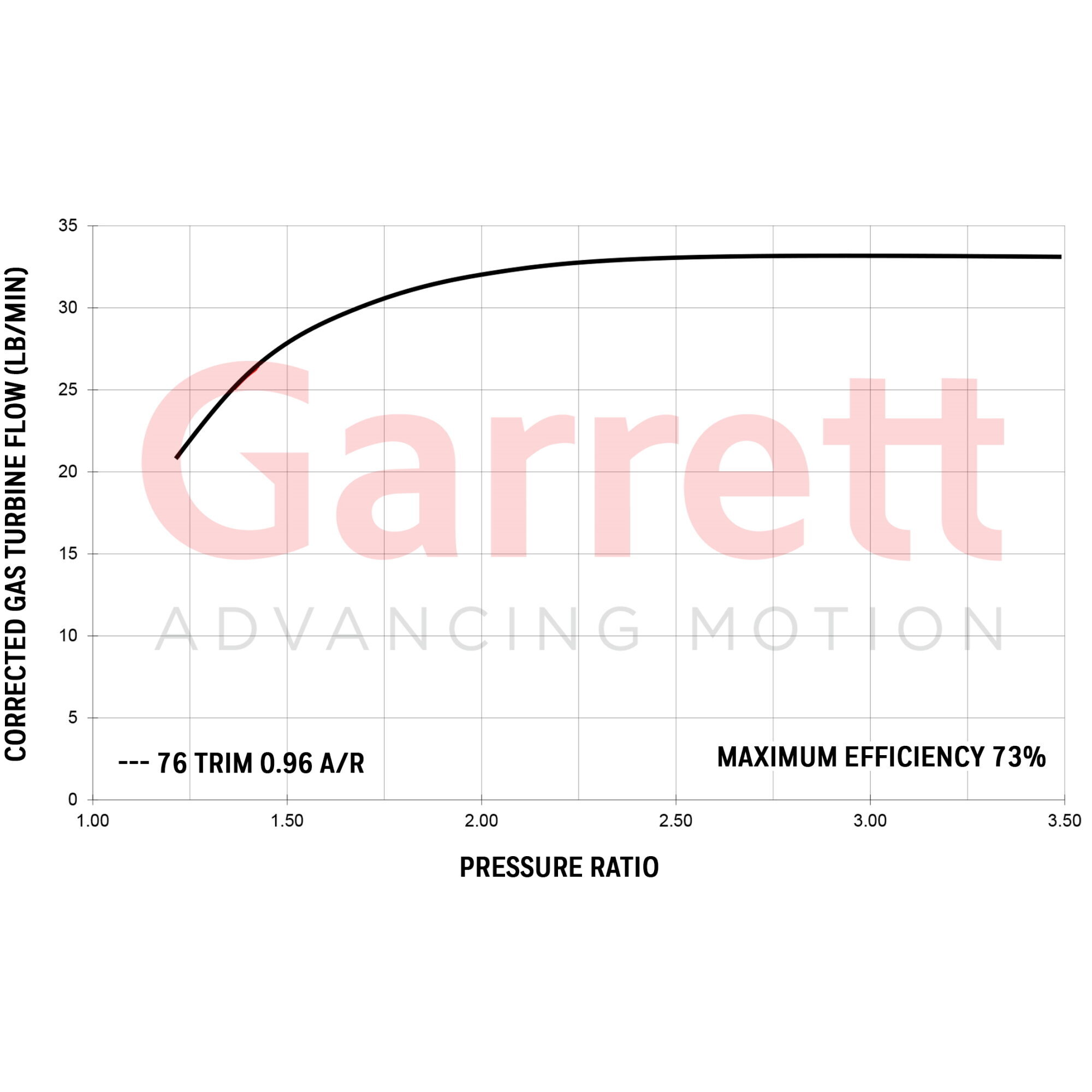

Turbine
Inducer: 74mm
Exducer: 65mm
Trim: 76
*841297 Journal Bearing Option / *841691 Water Cooled CHRA
Sensor Install
Garrett Boost Advisor
