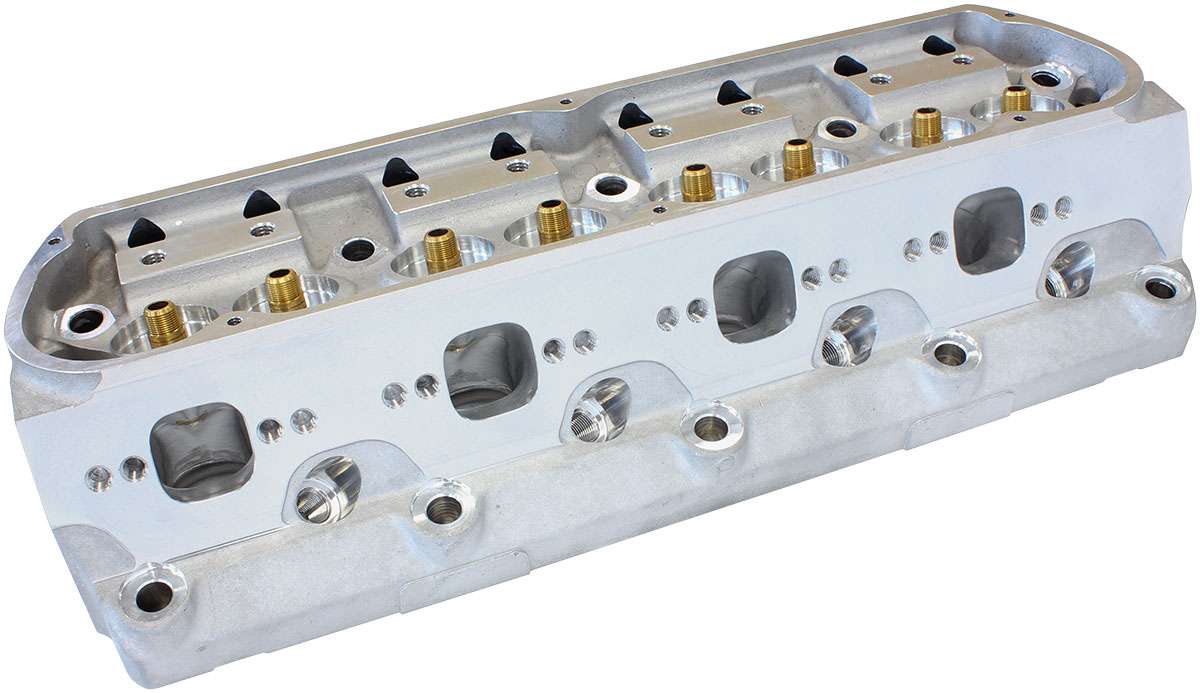

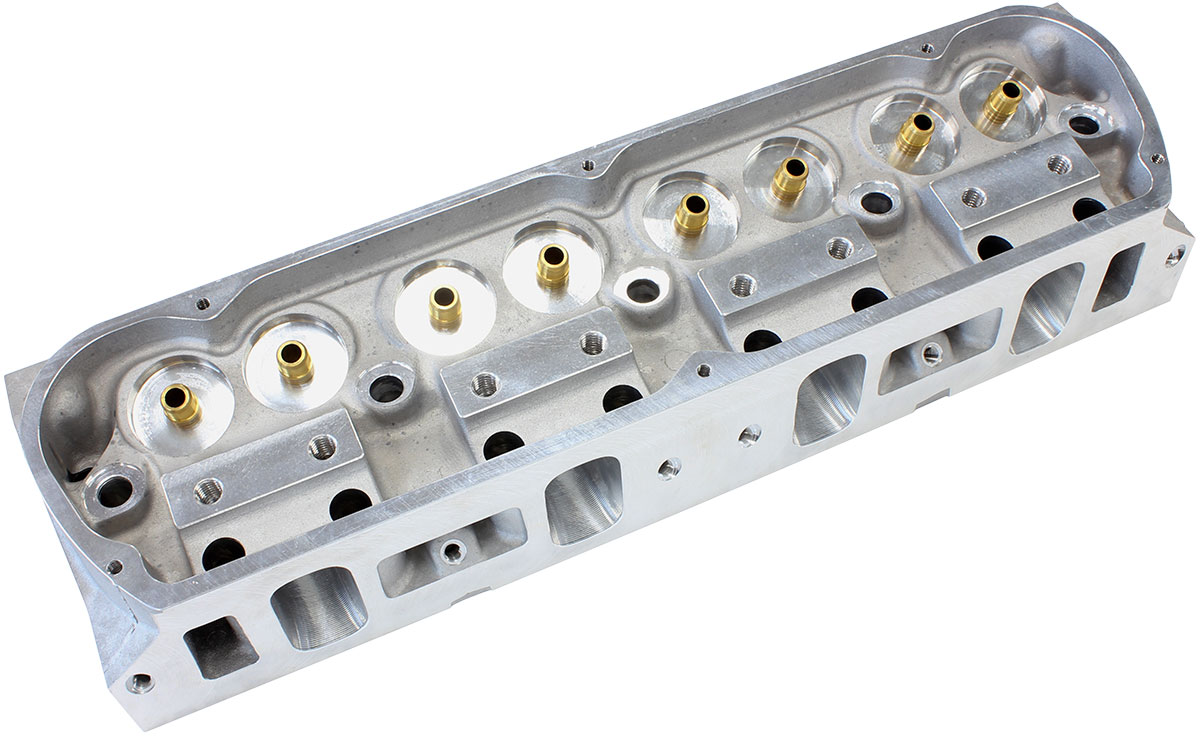

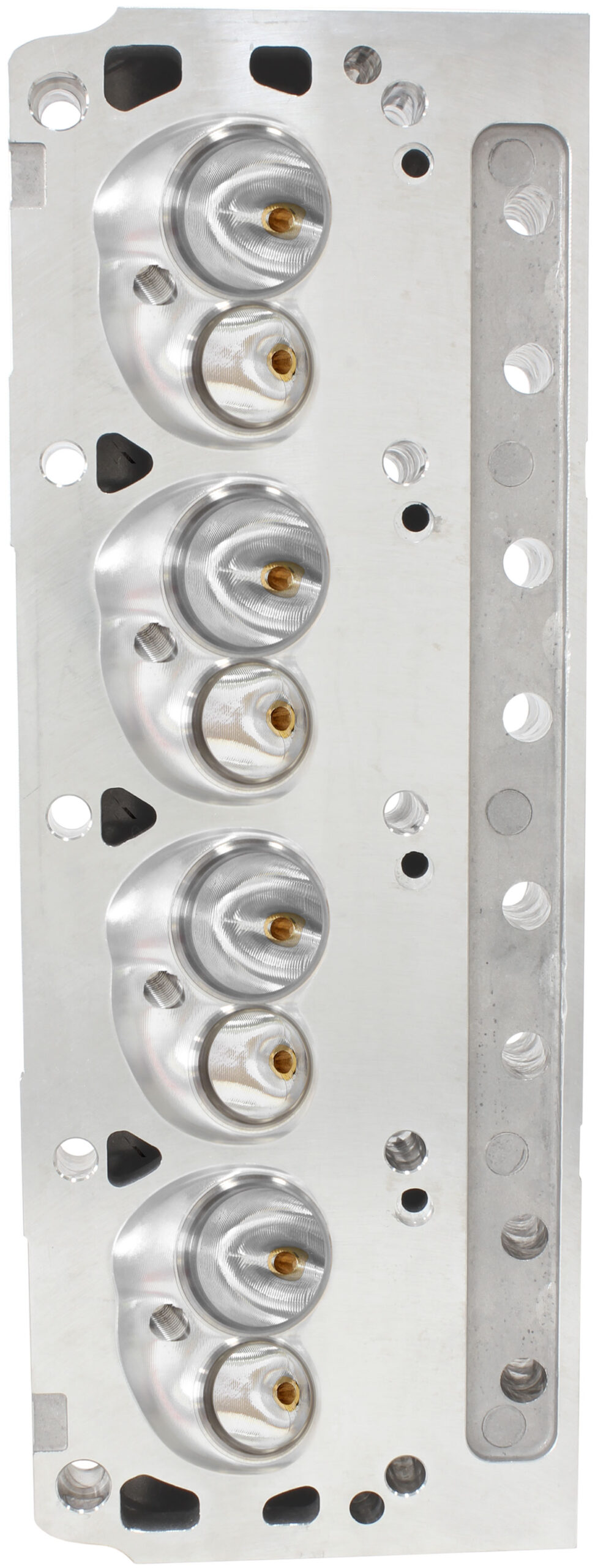

AEROFLOW SBF 205cc ALUMINIUM HEADS BARE58cc CHAMBERS, 2.08″/1.60″

Description

AEROFLOW SBF 205cc ALUMINIUM HEADS BARE58cc CHAMBERS, 2.08″/1.60″

AEROFLOW SBF 205cc ALUMINIUM HEADS BARE58cc CHAMBERS, 2.08″/1.60″ Bare Small Block Ford Windsor 289-351 203cc Aluminium Cylinder Heads with 58cc Chamber (Pair) 2.13″ x 1.28″ Intake Port, 1.40″ x 1.40″ Exhaust PortHead Specifications Material: A356 Aluminium Chamber Chamber: 58ccIntake Port Volume: 205cc Intake Port Dimension: 2.13″ x 1.28″Exhaust Port Volume: 71cc Exhaust Port Dimension: 1.40″ H x 1.40″ WExhaust Port Location: Raised .250″Spark Plug Location: OEM Intake Valve Diameter: 2.08″Exhaust Valve Diameter: 1.60″Valve Stem Diameter: 8mm Valve Spring Pocket I.D.: 1.64″ Valve Guide Material: Manganese Bronze Valve Guide O.D.: .490″ (.560″at base)Rocker Stud Thread Size: 7/16″ x 14 Valve Angle: 20°Deck Thickness: .750″ Overview Description: AEROFLOW SBF 205cc ALUMINIUM HEADS BARE58cc CHAMBERS, 2.08″/1.60″ Part Number: AF95-0360 Supplier: Aeroflow Features/Specs Cylinder Head Configuration: Bare Engine: 289-302W,351W Since 2010, Aeroflow Performance Products has grown to design and manufacture close to 11,000 exceptional quality products. Fittings and hoses, fuel system components, air and oil filters, oil systems, silicone hoses, fabricated tanks, alternators, workshop tools and much more. As a company, they have tried to lead the way for the Performance enthusiast.
